wthresh

Soft or hard thresholding

Description

example

Y = wthresh(X,sorh,T) returns the soft or hard thresholding, indicated by sorh, of the vector or matrix X. T is the threshold value.

Examples

collapse all

Generate a signal and set a threshold.

y = linspace(-1,1,100);
thr = 0.4;

Perform hard and soft thresholding.

yhard = wthresh(y,"h",thr);
ysoft = wthresh(y,"s",thr);

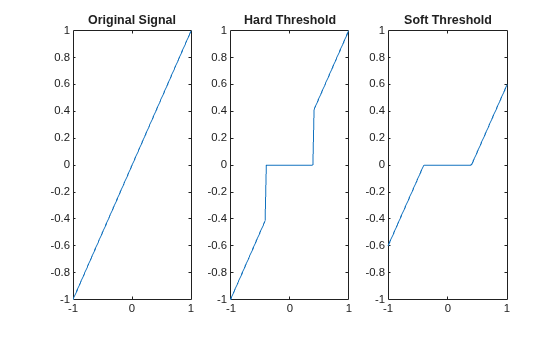

Plot the results and compare with the original signal.

tiledlayout(1,3)
nexttile
plot(y,y)
ylim([-1 1])
title("Original Signal")
nexttile
plot(y,yhard)
ylim([-1 1])
title("Hard Threshold")
nexttile
plot(y,ysoft)
ylim([-1 1])
title("Soft Threshold")

Load the noisy Doppler signal. Obtain the nondecimated discrete wavelet transform of the signal down to level 4.

load noisdopp
wt = modwt(noisdopp,4);

Determine the Donoho-Johnstone universal threshold based on the finest-scale wavelet coefficients.

thr = median(abs(wt(1,:)-median(wt(1,:))))/0.6745;

Apply soft thresholding to the wavelet transform and invert the result to obtain a denoised signal.

wtthr = wthresh(wt,"s",thr);
xden = imodwt(wtthr);

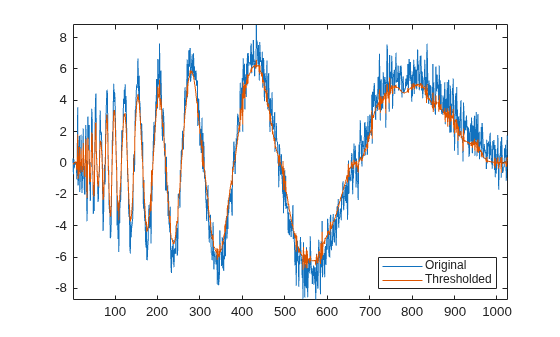

Plot the original and denoised signals.

plot([noisdopp(:) xden(:)])
axis tight
legend("Original","Thresholded",Location="southeast")

Input Arguments

collapse all

Input data to threshold, specified as a vector or matrix.

Data Types: single | double
Complex Number Support: Yes

Type of thresholding to perform:

  • "s" — Soft thresholding

  • "h" — Hard thresholding

Threshold value, specified as a positive real number.

Data Types: single | double

Output Arguments

collapse all

Thresholded data, returned as a vector or matrix. Y has the same dimensions as X.

Algorithms

If sorh is "s", Y is the soft thresholding of X: Y=sign(X)·(|X|T)+ where

(x)+={xifx00otherwise

Soft thresholding is wavelet shrinkage.

If sorh is "h", Y is the hard thresholding of X: Y=X·1(|X|>T) where

1(|X|>T)={1if|X|>T0otherwise

Hard thresholding is cruder than soft thresholding.

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.

Version History

Introduced before R2006a
