Installed Antenna and Large Structures

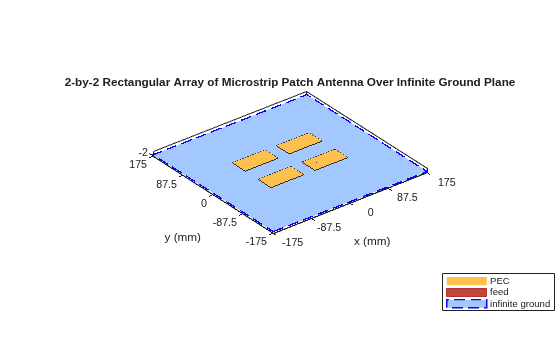

Antennas on platforms, infinite arrays, and infinite ground planes

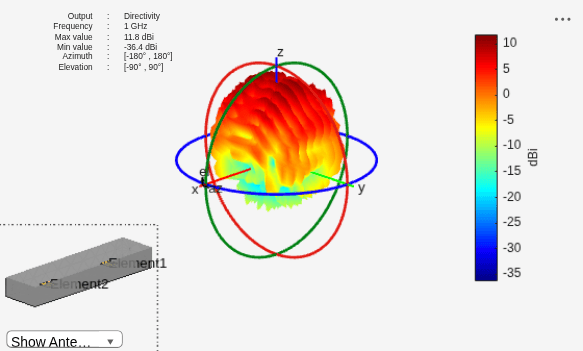

Installed antenna analysis involves electrically large structures called platforms. These platforms can be a plane, ship, or inside a car on its bumper. Antennas or arrays are installed around these platforms. You can use Antenna Toolbox™ to understand the effects of platform on antenna performance.

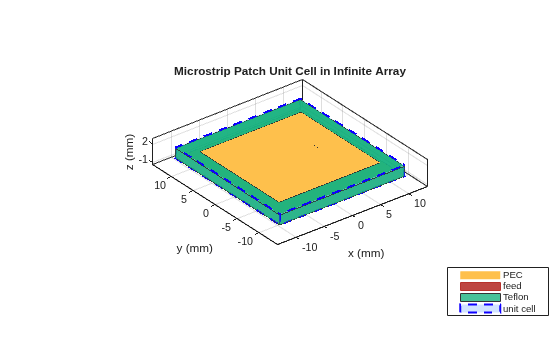

Use antenna elements to create infinite arrays, analyze the arrays over the desired range of scan angles, and calculate scan element patterns.

Objects

platformCreate platform object for installed antenna setup
installedAntennaInstalled antenna setup
infiniteArrayCreate 2-D custom mesh antenna on X-Y plane

Functions

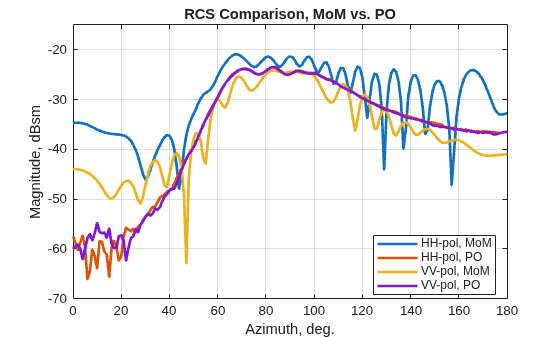

rcsCalculate and plot radar cross section (RCS) of platform, antenna, or array

Topics
