Train Network on Image and Feature Data

This example shows how to train a network that classifies handwritten digits using both image and feature input data.

Load Training Data

Load the digits images, labels, and clockwise rotation angles.

[X1Train,TTrain,X2Train] = digitTrain4DArrayData;

To train a network with multiple inputs using the trainNetwork function, create a single datastore that contains the training predictors and responses. To convert numeric arrays to datastores, use arrayDatastore. Then, use the combine function to combine them into a single datastore.

dsX1Train = arrayDatastore(X1Train,IterationDimension=4);
dsX2Train = arrayDatastore(X2Train);
dsTTrain = arrayDatastore(TTrain);
dsTrain = combine(dsX1Train,dsX2Train,dsTTrain);

Display 20 random training images.

numObservationsTrain = numel(TTrain);
idx = randperm(numObservationsTrain,20);

figure
tiledlayout("flow");
for i = 1:numel(idx)
    nexttile
    imshow(X1Train(:,:,:,idx(i)))
    title("Angle: " + X2Train(idx(i)))
end

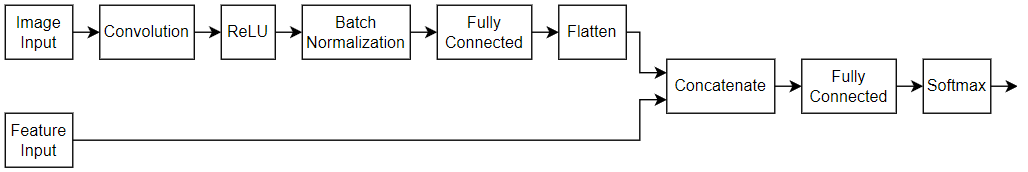

Define Network Architecture

Define the following network.

  • For the image input, specify an image input layer with size matching the input data.

  • For the feature input, specify a feature input layer with size matching the number of input features.

  • For the image input branch, specify a convolution, batch normalization, and ReLU layer block with 16 5-by-5 filters.

  • To convert the output of the batch normalization layer to a feature vector, include a fully connected layer of size 50.

  • To concatenate the output of the first fully connected layer with the feature input, flatten the "SSCB"(spatial, spatial, channel, batch) output of the fully connected layer so that it has format "CB" using a flatten layer.

  • Concatenate the output of the flatten layer with the feature input along the first dimension (the channel dimension).

  • For classification output, include a fully connected layer with output size matching the number of classes, followed by a softmax and classification output layer.

Create a layer array containing the main branch of the network and convert it to a layer graph.

[h,w,numChannels,numObservations] = size(X1Train);
numFeatures = 1;
numClasses = numel(categories(TTrain));

imageInputSize = [h w numChannels];
filterSize = 5;
numFilters = 16;

layers = [
    imageInputLayer(imageInputSize,Normalization="none")
    convolution2dLayer(filterSize,numFilters)
    batchNormalizationLayer
    reluLayer
    fullyConnectedLayer(50)
    flattenLayer
    concatenationLayer(1,2,Name="cat")
    fullyConnectedLayer(numClasses)
    softmaxLayer
    classificationLayer];

lgraph = layerGraph(layers);

Add a feature input layer to the layer graph and connect it to the second input of the concatenation layer.

featInput = featureInputLayer(numFeatures,Name="features");
lgraph = addLayers(lgraph,featInput);
lgraph = connectLayers(lgraph,"features","cat/in2");

Visualize the network in a plot.

figure
plot(lgraph)

Specify Training Options

Specify the training options.

  • Train using the SGDM optimizer.

  • Train for 15 epochs.

  • Train with a learning rate of 0.01.

  • Display the training progress in a plot.

  • Suppress the verbose output.

options = trainingOptions("sgdm", ...
    MaxEpochs=15, ...
    InitialLearnRate=0.01, ...
    Plots="training-progress", ...
    Verbose=0);

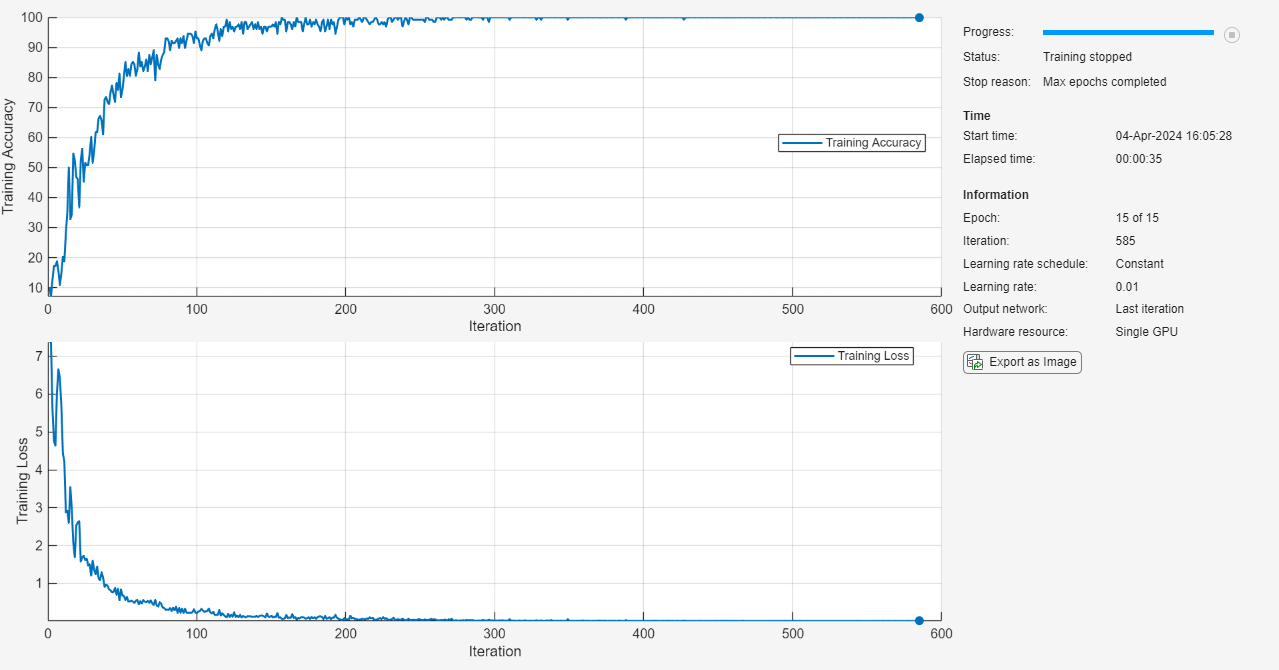

Train Network

Train the network using the trainNetwork function.

net = trainNetwork(dsTrain,lgraph,options);

Test Network

Test the classification accuracy of the network by comparing the predictions on a test set with the true labels.

Load the test data and create a combined datastore containing the images and features.

[X1Test,TTest,X2Test] = digitTest4DArrayData;
dsX1Test = arrayDatastore(X1Test,IterationDimension=4);
dsX2Test = arrayDatastore(X2Test);
dsTest = combine(dsX1Test,dsX2Test);

Classify the test data using the classify function.

YTest = classify(net,dsTest);

Visualize the predictions in a confusion chart.

figure
confusionchart(TTest,YTest)

Evaluate the classification accuracy.

accuracy = mean(YTest == TTest)
accuracy = 0.9834

View some of the images with their predictions.

idx = randperm(size(X1Test,4),9);
figure
tiledlayout(3,3)
for i = 1:9
    nexttile
    I = X1Test(:,:,:,idx(i));
    imshow(I)

    label = string(YTest(idx(i)));
    title("Predicted Label: " + label)
end
