Zero-pole-gain complex bandpass frequency transformation
= zpkbpc2bpc(Z,P,K,Wo,Wt) returns zeros,
P2, and gain factor,
of the target filter transformed from the complex bandpass prototype
by applying a first-order complex bandpass to complex bandpass frequency
It also returns the numerator,
and the denominator,
AllpassDen, of the allpass
mapping filter. The original lowpass filter is given with zeros,
P, and gain factor,
This transformation effectively places two features of an original filter, located at frequencies Wo1 and Wo2, at the required target frequency locations, Wt1, and Wt2 respectively. It is assumed that Wt2 is greater than Wt1. In most of the cases the features selected for the transformation are the band edges of the filter passbands. In general it is possible to select any feature; e.g., the stopband edge, the DC, the deep minimum in the stopband, or other ones.
Relative positions of other features of an original filter do not change in the target filter. This means that it is possible to select two features of an original filter, F1 and F2, with F1 preceding F2. Feature F1 will still precede F2 after the transformation. However, the distance between F1 and F2 will not be the same before and after the transformation.
This transformation can also be used for transforming other types of filters; e.g., complex notch filters or resonators can be repositioned at two distinct desired frequencies at any place around the unit circle; e.g., in the adaptive system.
Design a prototype real IIR halfband filter using a standard elliptic approach:
[b, a] = ellip(3,0.1,30,0.409);
Create a complex passband from 0.25 to 0.75:
[b, a] = iirlp2bpc(b,a,0.5,[0.25,0.75]); z = roots(b); p = roots(a); k = b(1); [z2,p2,k2] = zpkbpc2bpc(z,p,k,[0.25, 0.75],[-0.75, -0.25]);
Verify the result by comparing the prototype filter with the target filter:
fvtool(b, a, k2*poly(z2), poly(p2));

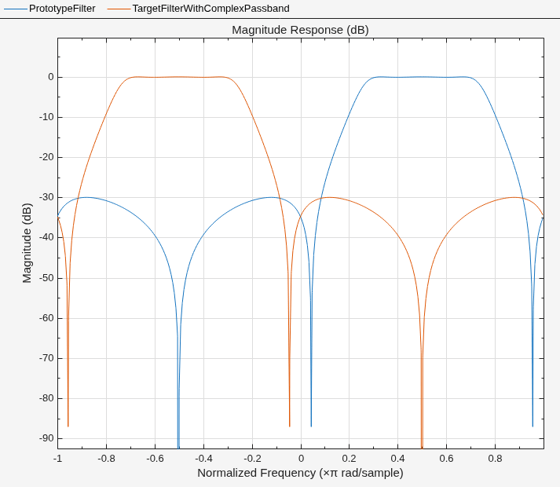

Comparing the filters in FVTool shows the example results. Use the features in FVTool to check the filter coefficients, or other filter analyses.
Zeros of the prototype lowpass filter
Poles of the prototype lowpass filter
Gain factor of the prototype lowpass filter
Frequency value to be transformed from the prototype filter
Desired frequency location in the transformed target filter
Zeros of the target filter
Poles of the target filter
Gain factor of the target filter
Numerator of the mapping filter
Denominator of the mapping filter
Frequencies must be normalized to be between -1 and 1, with 1 corresponding to half the sample rate.
