Single-Rate Modeling (Bare Board, No OS)

This model shows code generation for a single-rate discrete-time model configured for a bare-board target (one with no operating system).

Open Example Model

Open the example model SingleRateBareBoard.

open_system('SingleRateBareBoard')

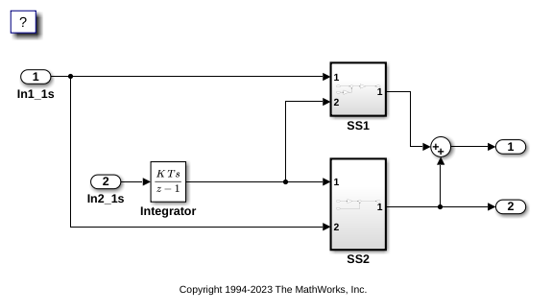

The model uses one sample time and is configured to display sample-time colors when an update diagram occurs. Inport blocks In1_1s and In2_1s specify a 1-second sample time, which is enforced by the setting of model configuration parameter Periodic sample time constraint.

The model is configured to display color-coded sample times with annotations. To see them, after opening the model, update the diagram by pressing Ctrl+D. To display the legend, press Ctrl+J. Because the model is configured with one sample time, the model appears red, which is the color that represents the fastest discrete sample time in the model.
