This example shows how to smooth the states of a known, time-invariant, state-space model.

Suppose that a latent process is an AR(1) model. Subsequently, the state equation is

$${x}_{t}=0.5{x}_{t-1}+{u}_{t},$$

where $${u}_{t}$$ is Gaussian with mean 0 and standard deviation 0.5.

Generate a random series of 100 observations from $${x}_{t}$$, assuming that the series starts at 1.5.

T = 100; ARMdl = arima('AR',0.5,'Constant',0,'Variance',0.5^2); x0 = 1.5; rng(1); % For reproducibility x = simulate(ARMdl,T,'Y0',x0);

Suppose further that the latent process is subject to additive measurement error. Subsequently, the observation equation is

$${y}_{t}={x}_{t}+{\epsilon}_{t},$$

where $${\epsilon}_{t}$$ is Gaussian with mean 0 and standard deviation 0.05. Together, the latent process and observation equations compose a state-space model.

Use the random latent state process (`x`

) and the observation equation to generate observations.

y = x + 0.05*randn(T,1);

Specify the four coefficient matrices.

A = 0.5; B = 0.5; C = 1; D = 0.05;

Specify the state-space model using the coefficient matrices.

Mdl = ssm(A,B,C,D)

Mdl = State-space model type: ssm State vector length: 1 Observation vector length: 1 State disturbance vector length: 1 Observation innovation vector length: 1 Sample size supported by model: Unlimited State variables: x1, x2,... State disturbances: u1, u2,... Observation series: y1, y2,... Observation innovations: e1, e2,... State equation: x1(t) = (0.50)x1(t-1) + (0.50)u1(t) Observation equation: y1(t) = x1(t) + (0.05)e1(t) Initial state distribution: Initial state means x1 0 Initial state covariance matrix x1 x1 0.33 State types x1 Stationary

`Mdl`

is an `ssm`

model. Verify that the model is correctly specified using the display in the Command Window. The software infers that the state process is stationary. Subsequently, the software sets the initial state mean and covariance to the mean and variance of the stationary distribution of an AR(1) model.

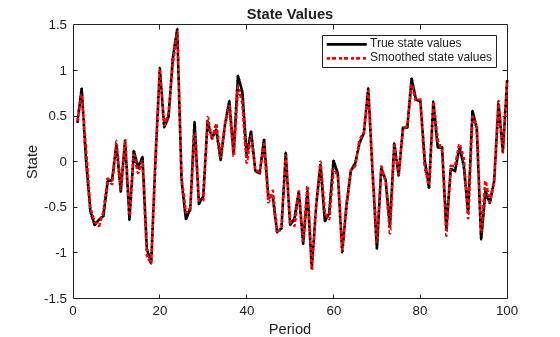

Smooth the states for periods 1 through 100. Plot the true state values and the smoothed states.

SmoothedX = smooth(Mdl,y); figure plot(1:T,x,'-k',1:T,SmoothedX,':r','LineWidth',2) title({'State Values'}) xlabel('Period') ylabel('State') legend({'True state values','Smoothed state values'})
