Portfolio Optimization with Semicontinuous and Cardinality Constraints

This example shows how to use a Portfolio object to directly handle semicontinuous and cardinality constraints when performing portfolio optimization. Portfolio optimization finds the asset allocation that maximizes the return or minimizes the risk, subject to a set of investment constraints. The Portfolio class in Financial Toolbox™ is designed and implemented based on the Markowitz Mean-Variance Optimization framework. The Mean-Variance Optimization framework handles problems where the return is the expected portfolio return, and the risk is the variance of portfolio returns. Using the Portfolio class, you can minimize the risk on the efficient frontier (EF), maximize the return on the EF, maximize the return for a given risk, and minimize the risk for a given return. You can also use PortfolioCVaR or PortfolioMAD classes in Financial Toolbox™ to specify semicontinuous and cardinality constraints. Such optimization problems integrate with constraints such as group, linear inequality, turnover, and tracking error constraints. These constraints are formulated as nonlinear programming (NLP) problems with continuous variables represented as the asset weights xi.

Semicontinuous and cardinality constraints are two other common categories of portfolio constraints that are formulated mathematically by adding the binary variables vi.

  • A semicontinuous constraint confines the allocation of an asset. For example, you can use this constraint to confine the allocated weight of an allocated asset to between 5% and 50%. By using this constraint, you can avoid very small or large positions to minimize the churns and operational costs. To mathematically formulate this type of constraint, a binary variable vi is needed, where vi is 0 or 1. The value 0 indicates that asset i is not allocated and the value 1 indicates that asset i is allocated. The mathematical form islb*vixiub*vi, where vi is 0 or 1. Specify this type of constraint as a 'Conditional' BoundType in the Portfolio class using the setBounds function.

  • A cardinality constraint limits the number of assets in the optimal allocation. For example, for a portfolio with a universe of 100 assets, you can specify an optimal portfolio allocation between 20 and 40 assets. This capability helps limit the number of positions, and thus reduce operational costs. To mathematically formulate this type of constraint, binary variables represented as vi are needed, where vi is 0 or 1. The value 0 indicates that asset i is not allocated and the value 1 indicates that asset i is allocated. The mathematical form is MinNumAssets1NumAssetsviMaxNumAssets, where vi is 0 or 1. Specify this type of constraint by setting the 'MinNumAssets' and 'MaxNumAssets' constraints in the Portfolio class using the setMinMaxNumAssets function.

For more information on semicontinuous and cardinality constraints, see Algorithms.

When semicontinuous and cardinality constraints are used for portfolio optimization, this leads to mixed integer nonlinear programming problems (MINLP). The Portfolio class allows you to configure these two constraints, specifically, semicontinuous constraints using setBounds with 'Conditional' BoundType, and cardinality constraints using setMinMaxNumAssets. The Portfolio class automatically formulates the mathematical problems and validates the specified constraints. The Portfolio class also provides built-in MINLP solvers and flexible solver options for you to tune the solver performance using the setSolverMINLP function.

This example demonstrates a Portfolio object with semicontinuous and cardinality constraints and uses the BlueChipStockMoments dataset, which has a universe of 30 assets.

load BlueChipStockMoments
numAssets = numel(AssetList)
numAssets = 30

Limit the Minimum Weight for Each Allocated Asset

Create a fully invested portfolio with only long positions: xi0  andsum(xi)=1. These are configured with setDefaultConstraints.

p = Portfolio('AssetList', AssetList,'AssetCovar', AssetCovar, 'AssetMean', AssetMean);
p = setDefaultConstraints(p);

Suppose that you want to avoid very small positions to minimize the churn and operational costs. Add another constraint to confine the allocated positions to be no less than 5%, by setting the constraints xi=0orxi0.05 using setBounds with a 'Conditional' BoundType.

pWithMinWeight = setBounds(p, 0.05, 'BoundType', 'Conditional');

Plot the efficient frontiers for both Portfolio objects.

wgt = estimateFrontier(p);
wgtWithMinWeight = estimateFrontier(pWithMinWeight);
figure(1);
plotFrontier(p, wgt); hold on;
plotFrontier(pWithMinWeight, wgtWithMinWeight); hold off;
legend('Baseline portfolio', 'With minWeight constraint', 'location', 'best');

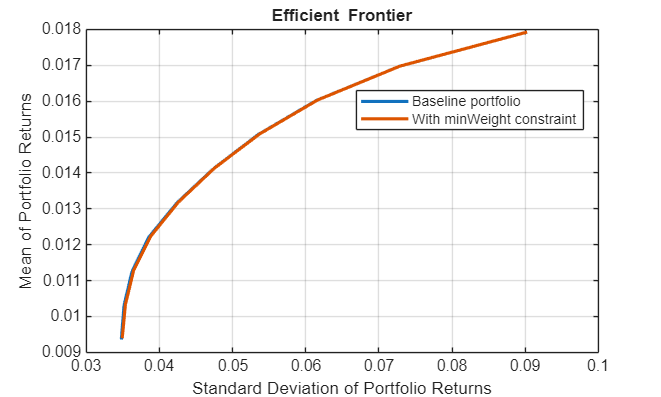

Figure contains an axes object. The axes object with title Efficient Frontier, xlabel Standard Deviation of Portfolio Returns, ylabel Mean of Portfolio Returns contains 2 objects of type line. These objects represent Baseline portfolio, With minWeight constraint.

The figure shows that the two Portfolio objects have almost identical efficient frontiers. However, the one with the minimum weight requirement is more practical, since it prevents the close-to-zero positions.

Check the optimal weights for the portfolio with default constraints to see how many assets are below the 5% limit for each optimal allocation.

toler = eps;
sum(wgt>toler & wgt<0.05)
ans = 1×10

     5     7     5     4     2     3     4     2     0     0

Use estimateFrontierByReturn to investigate the portfolio compositions for a target return on the frontier for both cases.

targetRetn = 0.011;
pwgt = estimateFrontierByReturn(p, targetRetn);
pwgtWithMinWeight = estimateFrontierByReturn(pWithMinWeight, targetRetn);

Plot the composition of the two Portfolio objects for the universe of 30 assets.

figure(2);
barh([pwgt, pwgtWithMinWeight]);
grid on
xlabel('Proportion of Investment')
yticks(1:p.NumAssets);
yticklabels(p.AssetList);
title('Asset Allocation');
legend('Without min weight limit', 'With min weight limit', 'location', 'best');

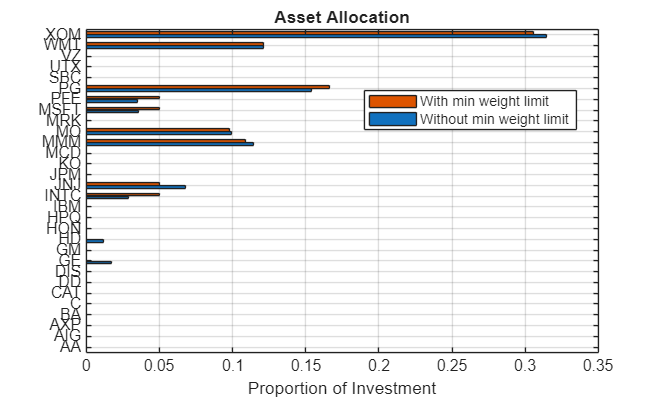

Figure contains an axes object. The axes object with title Asset Allocation, xlabel Proportion of Investment contains 2 objects of type bar. These objects represent Without min weight limit, With min weight limit.

Show only the allocated assets.

idx = (pwgt>toler) | (pwgtWithMinWeight>toler);

barh([pwgt(idx), pwgtWithMinWeight(idx)]);
grid on
xlabel('Proportion of Investment')
yticks(1:sum(idx));
yticklabels(p.AssetList(idx));
title('Asset Allocation');
legend('Without min weight limit', 'With min weight limit', 'location', 'best');

Figure contains an axes object. The axes object with title Asset Allocation, xlabel Proportion of Investment contains 2 objects of type bar. These objects represent Without min weight limit, With min weight limit.

Limit the Maximum Number of Assets to Allocate

Use setMinMaxNumAssets to set the maximum number of allocated assets for the Portfolio object. Suppose that you want no more than eight assets invested in the optimal portfolio. To do this with a Portfolio object, use setMinMaxNumAssets.

pWithMaxNumAssets = setMinMaxNumAssets(p, [], 8);

wgt = estimateFrontier(p);
wgtWithMaxNumAssets = estimateFrontier(pWithMaxNumAssets);
Warning: Risk minimization problem failed to converge. Number of iterations exceeded 'MaxIterations'.
plotFrontier(p, wgt); hold on;
plotFrontier(pWithMaxNumAssets, wgtWithMaxNumAssets); hold off;
legend('Baseline portfolio', 'With MaxNumAssets constraint', 'location', 'best');

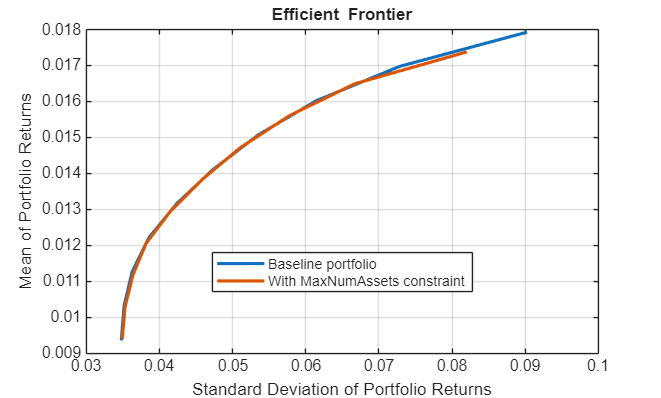

Figure contains an axes object. The axes object with title Efficient Frontier, xlabel Standard Deviation of Portfolio Returns, ylabel Mean of Portfolio Returns contains 2 objects of type line. These objects represent Baseline portfolio, With MaxNumAssets constraint.

Use estimateFrontierByReturn to find the allocation that minimizes the risk on the frontier for the given target return.

pwgtWithMaxNum = estimateFrontierByReturn(pWithMaxNumAssets, targetRetn);
Warning: Risk minimization problem failed to converge. Number of iterations exceeded 'MaxIterations'.

Plot the composition of the two Portfolio objects for the universe of 30 assets.

idx = (pwgt>toler) | (pwgtWithMaxNum>toler);

barh([pwgt(idx), pwgtWithMaxNum(idx)]);
grid on
xlabel('Proportion of Investment')
yticks(1:sum(idx));
yticklabels(p.AssetList(idx));
title('Asset Allocation');
legend('Baseline portfolio', 'With MaxNumAssets constraint', 'location', 'best');

Figure contains an axes object. The axes object with title Asset Allocation, xlabel Proportion of Investment contains 2 objects of type bar. These objects represent Baseline portfolio, With MaxNumAssets constraint.

sum(abs(pwgt)>toler)
ans = 11

Count the total number of allocated assets to verify that only eight assets at most are allocated.

sum(abs(pwgtWithMaxNum)>toler)
ans = 8

Limit the Minimum and Maximum Number of Assets to Allocate

Suppose that you want to set both the lower and upper bounds for the number of assets to allocate in a portfolio, given the universe of assets. Use setBounds to specify the allowed number of assets to allocate as from 5 through 10, and the allocated weight as no less than 5%.

p1 = setMinMaxNumAssets(p, 5, 10);
p1 = setBounds(p1, 0.05, 'BoundType', 'conditional');

If an asset is allocated, it is necessary to clearly define the minimum weight requirement for that asset. This is done using setBounds with a 'Conditional' BoundType. Otherwise, the optimizer cannot evaluate which assets are allocated and cannot formulate the MinNumAssets constraint. For more details, see Conditional Bounds with LowerBound Defined as Empty or Zero.

Plot the efficient frontier to compare this portfolio to the baseline portfolio, which has only default constraints.

wgt = estimateFrontier(p);
wgt1 = estimateFrontier(p1);
plotFrontier(p, wgt); hold on;
plotFrontier(p1, wgt1); hold off;
legend('Baseline portfolio', 'With MaxNumAssets constraint', 'location', 'best');

Figure contains an axes object. The axes object with title Efficient Frontier, xlabel Standard Deviation of Portfolio Returns, ylabel Mean of Portfolio Returns contains 2 objects of type line. These objects represent Baseline portfolio, With MaxNumAssets constraint.

Asset Allocation for an Equal-Weighted Portfolio

Create an equal-weighted portfolio using both setBounds and setMinMaxNumAssets functions.

numAssetsAllocated = 8;
weight= 1/numAssetsAllocated;
p2 = setBounds(p, weight, weight, 'BoundType', 'conditional');
p2 = setMinMaxNumAssets(p2, numAssetsAllocated, numAssetsAllocated);

When any one, or any combination of 'Conditional' BoundType, MinNumAssets, or MaxNumAssets are active, the optimization problem is formulated as a mixed integer nonlinear programming (MINLP) problem. The Portfolio class automatically constructs the MINLP problem based on the specified constraints.

When working with a Portfolio object, you can select one of three solvers using the setSolverMINLP function. In this example, instead of using default MINLP solver options, customize the solver options to help with a convergence issue. Use a large number (50) for 'MaxIterationsInactiveCut' with setSolverMINLP, instead of the default value of 30 for 'MaxIterationsInactiveCut'. The value 50 works well in finding the efficient frontier of optimal asset allocation.

p2 = setSolverMINLP(p2, 'OuterApproximation', 'MaxIterationsInactiveCut', 50);

Plot the efficient frontiers for the baseline and equal-weighted portfolios.

wgt = estimateFrontier(p);
wgt2 = estimateFrontier(p2);
plotFrontier(p, wgt); hold on;
plotFrontier(p2, wgt2); hold off;
legend('Baseline portfolio', 'Equal Weighted portfolio', 'location', 'best');

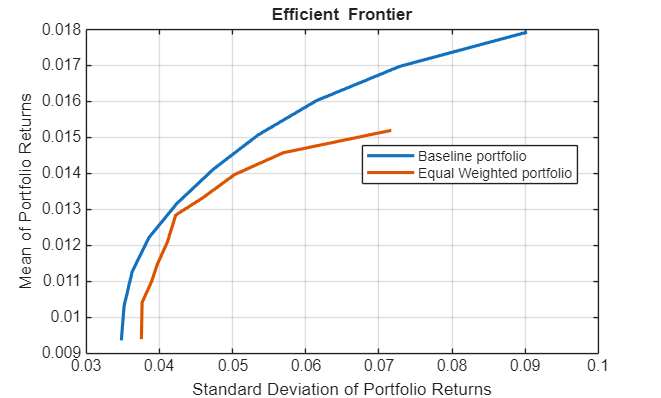

Figure contains an axes object. The axes object with title Efficient Frontier, xlabel Standard Deviation of Portfolio Returns, ylabel Mean of Portfolio Returns contains 2 objects of type line. These objects represent Baseline portfolio, Equal Weighted portfolio.

Use estimateFrontierByRisk to optimize for a specific risk level, in this case .05, to determine what allocation maximizes the portfolio return.

targetRisk = 0.05;
pwgt = estimateFrontierByRisk(p, targetRisk);
pwgt2 = estimateFrontierByRisk(p2, targetRisk);

idx = (pwgt>toler) | (pwgt2>toler);
barh([pwgt(idx), pwgt2(idx)]);
grid on
xlabel('Proportion of investment')
yticks(1:sum(idx));
yticklabels(p.AssetList(idx));
title('Asset Allocation');
legend('Baseline portfolio', 'Equal weighted portfolio', 'location', 'best');

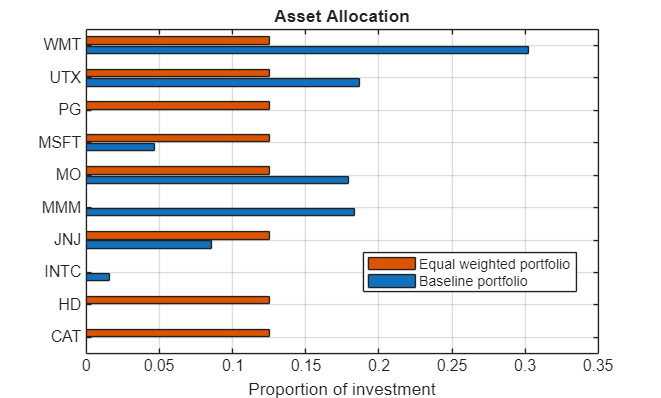

Figure contains an axes object. The axes object with title Asset Allocation, xlabel Proportion of investment contains 2 objects of type bar. These objects represent Baseline portfolio, Equal weighted portfolio.

Use 'Conditional' BoundType, MinNumAssets, and MaxNumAssets Constraints with Other Constraints

You can define other constraints for a Portfolio object using the set functions. These other constraints for a Portfolio object, such as group, linear inequality, turnover, and tracking error can be used together with the 'Conditional' BoundType, 'MinNumAssets', and 'MaxNumAssets' constraints. For example, specify a tracking error constraint using setTrackingError.

ii = [15, 16, 20, 21, 23, 25, 27, 29, 30];	% indexes of assets to include in tracking portfolio
trackingPort(ii) = 1/numel(ii);
q = setTrackingError(p, 0.5, trackingPort);

Then use setMinMaxNumAssets to add a constraint to limit maximum number of assets to invest.

q = setMinMaxNumAssets(q, [], 8);

On top of these previously specified constraints, use setBounds to add a constraint to limit the weight for the allocated assets. You can use constraints with mixed BoundType values, where 'Simple' means lbxiuband 'Conditional' means xi=0orlbxiub.

Allow the assets in trackingPort to have the BoundType value 'Conditional' in the optimum allocation.

lb = zeros(q.NumAssets, 1);
ub = zeros(q.NumAssets, 1)*0.5;
lb(ii) = 0.1;
ub(ii) = 0.3;
boundType = repmat("simple",q.NumAssets,1);
boundType(ii) = "conditional";
q = setBounds(q, lb, ub, 'BoundType',boundType);

Plot the efficient frontier:

plotFrontier(q);

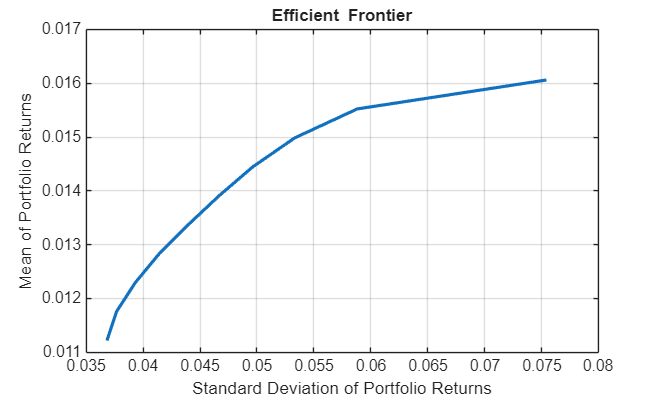

Figure contains an axes object. The axes object with title Efficient Frontier, xlabel Standard Deviation of Portfolio Returns, ylabel Mean of Portfolio Returns contains an object of type line.

Use estimateFrontierByReturn to find the allocation that minimizes the risk for a given return at 0.125.

targetRetn = 0.0125;
pwgt = estimateFrontierByReturn(q, targetRetn);

Show the allocation of assets by weight.

idx = abs(pwgt)>eps;
assetnames = q.AssetList';
Asset = assetnames(idx);
Weight = pwgt(idx);
resultAlloc = table(Asset, Weight)
resultAlloc=7×2 table
     Asset      Weight
    ________    _______

    {'JNJ' }        0.1
    {'MMM' }    0.19503
    {'MO'  }     0.1485
    {'MSFT'}        0.1
    {'PG'  }        0.1
    {'WMT' }     0.2212
    {'XOM' }    0.13527
