Replace MATLAB Functions with Custom Code for HLS Code Generation

R2026b

Since R2026b

A Code Replacement Library (CRL) maps MATLAB^® functions to custom C/C++ implementations. During HLS code generation, the code generator replaces calls to the specified MATLAB functions with the corresponding library implementations. Use a CRL when you want to target hardware-optimized libraries or replace generic MATLAB functions with custom implementations that are more efficient for your target platform.

To create and use a CRL:

1. Define a replacement table entry in the Code Replacement Tool.

2. Register the library.

3. Generate HLS code using HDL Coder.

This example uses the mmultiply function defined in matrixMultiply.m as the MATLAB function that you want to replace. The mmultiply function multiplies two matrices of type double and returns a matrix of type double. The source file externalMatrixMultiply.cpp and the header file externalMatrixMultiply.hpp define the replacement function myMatrixMultiply. This function performs the same matrix multiplication but returns void and passes both input and output arguments by pointer.

You need an Embedded Coder^® license to use the Code Replacement Tool.

Interactively Develop a Code Replacement Library

1. Open the Code Replacement Tool (Embedded Coder) by using the crtool function in the MATLAB command line:

   crtool

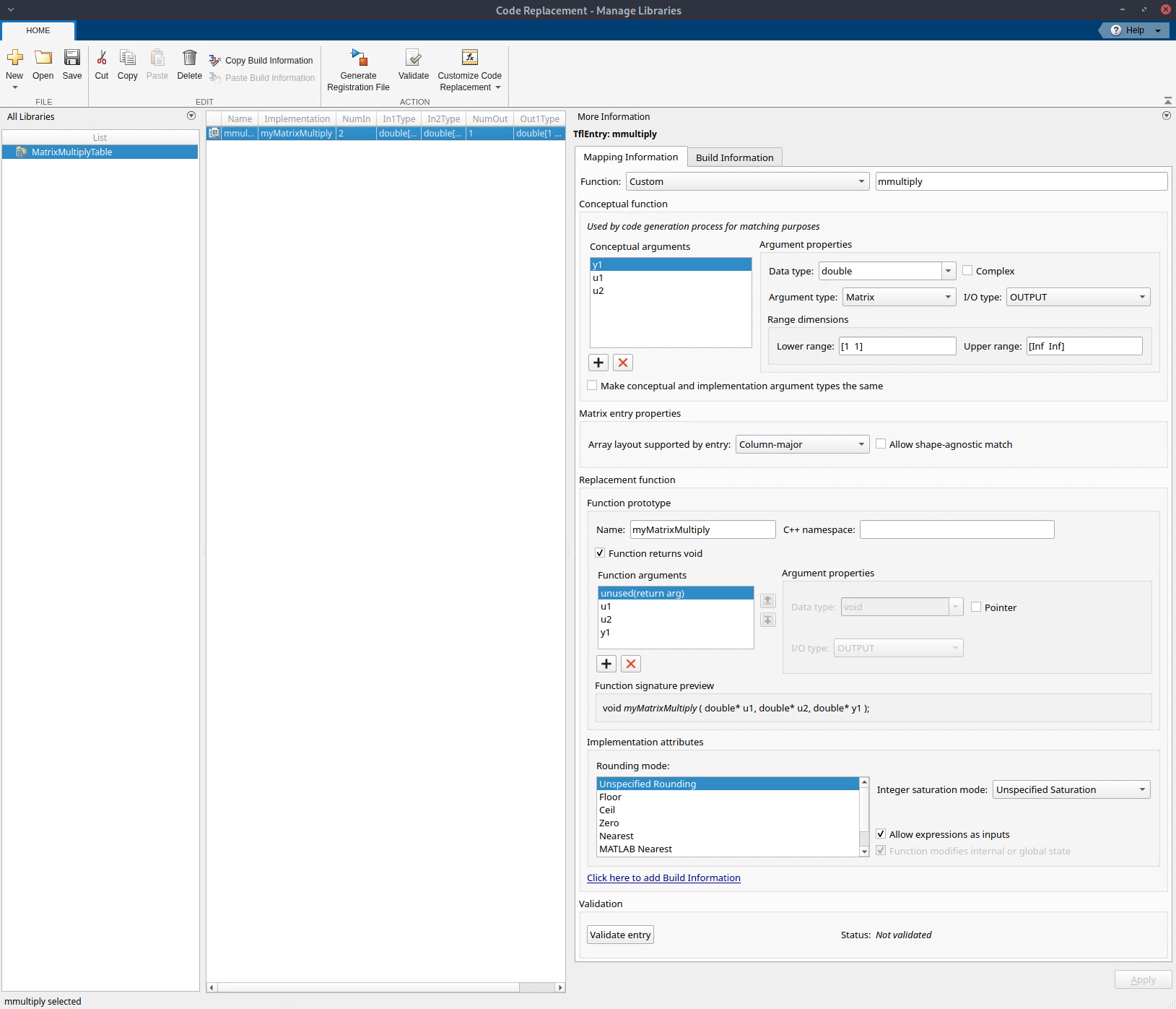

2. Create a function replacement table. From the toolstrip of the Code Replacement Tool, click New > Table.

3. To create a new table entry, click New > Entry > Function Entry.

4. Create parameters for the new entry. From the Function drop-down list, select Custom. Function information appears in the Code Replacement Tool, in the Function name box, enter mmultiply.

5. Create the conceptual representation. The conceptual representation describes the signature of the function that you want to replace. In the Conceptual function subsection of the Code Replacement Tool, add the return argument y1, and the input arguments u1 and u2. For each argument, set Data Type to double, and Argument Type to Matrix.

6. Create the implementation representation. The implementation representation describes the signature of the replacement function. For this example, to specify that the implementation arguments have the same order and properties as the conceptual arguments, add the arguments u1, u2, and y1.

   In the Replacement function section, specify Name as myMatrixMultiply. Select the Function returns void check box. Select the Pointer check box for each argument.

7. Specify build information. Click the Build Information tab to open the build requirements pane. Specify the files (source, header, object) that the code generator requires for code replacement. For this example, specify the header file externalMatrixMultiply.hpp and the source file externalMatrixMultiply.cpp in the build information tab.

8. Validate and save the table. Click the Mapping Information tab and verify that the fields are filled in correctly. Click Apply, then click Validate entry. On the toolstrip, click Save and save the table as MatrixMultiplyTable.



9. Register a library composed of the tables that you specify. Click Generate Registration File. In the Generate Registration File dialog box, fill in these fields:

   • Registry name — CRL for Matrix Multiply

   • Table list — MatrixMultiplyTable

   • Base CRL — None

   • Target HW device — *

   • Description — Example code replacement library

   Click OK to create the registration file in the current working directory.

   Open the rtwTargetInfo.m file and add this code at the end of the file to ensure the library appears for HLS code generation:

   this(1).IsHLSOnly = true;

   To use your CRL, refresh this MATLAB session with this command:

   RTW.TargetRegistry.getInstance("reset");

10. To verify the CRL, open the library by using the Code Replacement Viewer (Embedded Coder) and verify that the table and entry are correctly specified. For more information, see Verify Code Replacement Library (Embedded Coder).

    To use the CRL during HLS code generation, specify the name of the CRL in the Code Replacement Library option in the HLS Code Generation > Advanced tab of the HDL Workflow Advisor, or in the CodeReplacementLibrary property of the coder.HlsConfig object. Generate code and verify that replacement occurs as expected. If unexpected behavior occurs, examine the hit and miss logs to troubleshoot the issues.

Generate HLS Code by Using Custom Code Replacement Library

This example shows how to use the CRL created in the previous section to generate HLS code for matrixMultiply.m.

Open the HDL Workflow Advisor by running this command:

coder -hdlcoder -new matrixMultiply

1. In the HDL Workflow Advisor task:

   • Set Code Generation Workflow to MATLAB to HLS.

   • Set Fixed-Point Conversion to Keep original types.

2. In the Define Input Types task, add the design and test bench files:

   • For MATLAB Function, click Browse and select matrixMultiply.m.

   • For MATLAB Test Bench, click the + button and select matrixMultiply_tb.m.

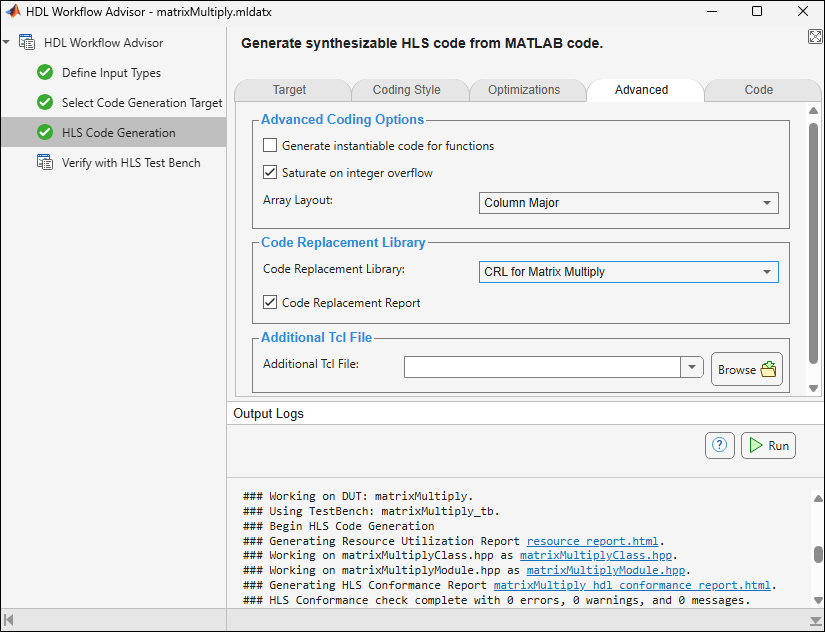

3. In the HLS Code Generation task, on the Advanced tab:

   • Set Code Replacement Library to CRL for Matrix Multiply.

4. To generate HLS code, right-click the HLS Code Generation task and select Run to selected task.

To view the generated HLS code, click matrixMultiplyClass.hpp in the Output pane. Verify that the generated code calls myMatrixMultiply instead of mmultiply.
