Pressure-Compensated Flow Control Valve (IL)

Flow control with pressure regulation in an isothermal liquid system

Since R2020a

  • Pressure-Compensated Flow Control Valve (IL) block

Libraries:
Simscape / Fluids / Isothermal Liquid / Valves & Orifices / Flow Control Valves

Description

The Pressure-Compensated Flow Control Valve (IL) block provides constant-pressure flow control through an Orifice (IL) block via a Pressure Compensator Valve (IL) connected in series. When the control pressure over the orifice, pApB, meets or exceeds the Set orifice pressure differential, the reducing valve in the pressure compensator component begins to close, which maintains the pressure in the orifice. For systems with venting or redirection of fluid to another part of the system, see the Pressure-Compensated 3-Way Flow Control Valve (IL) block.

The valve opening and closing is controlled by a physical signal received at port S. A positive signal opens the valve.

Flow Control Valve Schematic

Numerically-Smoothed Area and Pressure

When the orifice parameterization is linear, you can maintain numerical robustness at the extremes of the orifice area and valve pressure range by tuning the Smoothing factor parameter to a nonzero value less than 1. If the Smoothing factor parameter is nonzero, the block applies a smoothing function to all calculated areas and pressures, but it primarily influences the simulation at the extremes of these ranges.

If you enable smoothing, the block smoothly saturates the orifice area between the Leakage area and Maximum orifice area parameters and applies a smoothing function. The block smoothly saturates the valve pressure between the Set orifice pressure differential parameter and the sum of the Set orifice pressure differential and the Pressure compensator valve regulation range parameters.

For more information, see Numerical Smoothing.

Orifice Parameterization

Setting Orifice parameterization to:

  • Linear - area vs. control member position assumes that the spool position and the orifice opening area are related linearly.

  • Tabulated data - Area vs. control member position interpolates user-provided data between the orifice opening area and the control member position with a potentially nonlinear relationship.

  • Tabulated data - Volumetric flow rate vs. control member position and pressure drop interpolates the orifice volumetric flow rate directly from user-provided data between the control member position, orifice pressure drop, and orifice volumetric flow rate.

Ports

Conserving

expand all

Liquid entry or exit point to the valve.

Liquid entry or exit point to the valve.

Input

expand all

Orifice opening in m, returned as a physical signal. A positive signal opens the orifice.

Parameters

expand all

Method of modeling the opening of the orifice. The opening is either parametrized linearly, which correlates the opening area to the control member position; by user-supplied data that correlate the orifice opening area to the control member position; or by an array of data that correlates the valve flow rate to the control member position and valve pressure drop.

Control member stroke that fully opens the orifice.

Dependencies

To enable this parameter, set Orifice parameterization to Linear - area vs. control member travel.

Cross-sectional area of the orifice in its fully open position. This parameter is used as an upper limit for area-pressure calculations during the simulation.

Dependencies

To enable this parameter, set Orifice parameterization to Linear - area vs. control member travel.

Control member offset when the orifice is fully open. A positive, nonzero value indicates a partially closed orifice. A negative, nonzero value indicates an overlapped orifice that remains open for an initial displacement set by the physical signal at port S.

Dependencies

To enable this parameter, set Orifice parameterization to Linear - area vs. control member travel.

Vector of orifice opening distances for the tabular parameterization of the orifice opening area. The vector elements must correspond one-to-one with the elements in the Orifice area vector parameter. The elements are listed in ascending order and the first element must be 0. Linear interpolation is employed between table data points.

Dependencies

To enable this parameter, set Orifice parameterization to Tabulated data - Area vs. control member position.

Vector of valve opening areas for the tabular parameterization of the valve opening area. The vector elements must correspond one-to-one with the elements in the Control member position vector parameter. The elements are listed in ascending order and must be greater than 0.

Dependencies

To enable this parameter, set Orifice parameterization to Tabulated data - Area vs. control member position.

Vector of control member positions for the tabular parameterization of the volumetric flow rate. The control member position vector forms an independent axis with the Pressure drop vector, dp parameter for the 3-D dependent Volumetric flow rate table, q(s,dp) parameter. A positive displacement corresponds to valve opening. The values are listed in ascending order and the first element must be 0. Linear interpolation is employed between table data points.

Dependencies

To enable this parameter, set Orifice parameterization to Volumetric flow rate vs. control member position and pressure drop.

Vector of valve opening areas for the tabular parameterization of the valve opening area. The pressure drop vector forms an independent axis with the Control member position vector, s parameter for the 3-D dependent Volumetric flow rate table, q(s,dp) parameter. The values are listed in ascending order and must be greater than 0. Linear interpolation is employed between table data points.

Dependencies

To enable this parameter, set Orifice parameterization to Volumetric flow rate vs. control member position and pressure drop.

Array of volumetric flow rates based on independent values of pressure drop and spool travel distance. M and N are the sizes of the corresponding vectors:

  • M is the number of elements in the Pressure drop vector, dp parameter.

  • N is the number of elements in the Control member position vector, s parameter.

Dependencies

To enable this parameter, set Orifice parameterization to Volumetric flow rate vs. control member position and pressure drop.

Magnitude of pressure differential that triggers valve opening or closing.

Operational pressure range of the valve. The pressure regulation range lies between the Set orifice pressure differential and the maximum valve operating pressure.

Cross-sectional area of the valve in its fully open position. This parameter is used as an upper limit for area-pressure calculations during the simulation.

Sum of all gaps when the valve is in the fully closed position. Any area smaller than this value is maintained at the specified leakage area. This contributes to numerical stability by maintaining continuity in the flow.

Correction factor that accounts for discharge losses in theoretical flows.

Upper Reynolds number limit for laminar flow through the valve.

Continuous smoothing factor that introduces a layer of gradual change to the flow response when the valve is in near-open or near-closed positions. Set this value to a nonzero value less than one to increase the stability of your simulation in these regimes.

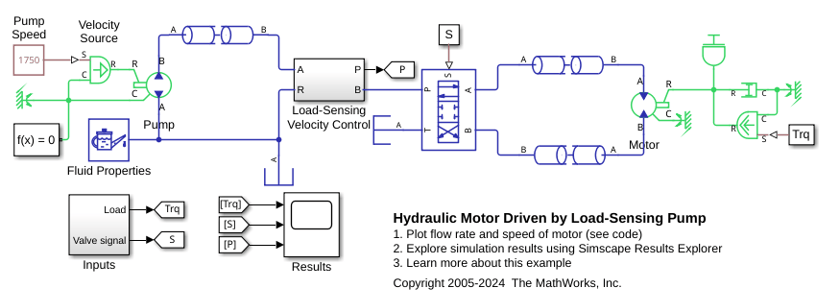

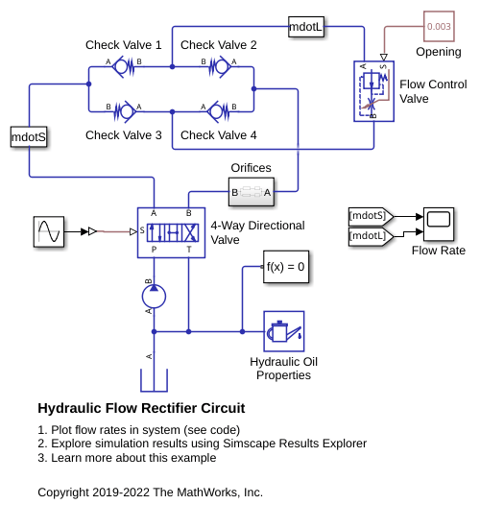

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.

Version History

Introduced in R2020a
