Estimate general input-output models using recursive prediction-error minimization method
thm = rpem(z,nn,adm,adg) [thm,yhat,P,phi,psi] = rpem(z,nn,adm,adg,th0,P0,phi0,psi0)
The parameters of the general linear model structure
are estimated using a recursive prediction error method.
The input-output data is contained in
which is either an
iddata object or a matrix
= [y u] where
column vectors. (In the multiple-input case,
one column for each input.)
nn is given as
nn = [na nb nc nd nf nk]
nf are the orders of the model, and
the delay. For multiple-input systems,
nk are row vectors giving the orders and delays
of each input. See What Are Polynomial Models? for an exact
definition of the orders.
The estimated parameters are returned in the matrix
kth row of
the parameters associated with time
k; that is,
they are based on the data in the rows up to and including row
Each row of
thm contains the estimated parameters
in the following order.
thm(k,:) = [a1,a2,...,ana,b1,...,bnb,... c1,...,cnc,d1,...,dnd,f1,...,fnf]
For multiple-input systems, the B part
in the above expression is repeated for each input before the C part
begins, and the F part is also repeated for each
input. This is the same ordering as in
yhat is the predicted value of the output,
according to the current model; that is, row
the predicted value of
y(k) based on all past data.
The actual algorithm is selected with the two arguments
adm = 'ff'and
lamspecify the forgetting factor algorithm with the forgetting factor λ
=lam. This algorithm is also known as recursive least squares (RLS). In this case, the matrix
Phas the following interpretation: R2
Pis approximately equal to the covariance matrix of the estimated parameters.R2 is the variance of the innovations (the true prediction errors e(t)).
adg = gamspecify the unnormalized gradient algorithm with gain gamma =
gam. This algorithm is also known as the normalized least mean squares (LMS).
gamspecify the normalized gradient or normalized least mean squares (NLMS) algorithm. In these cases,
Pis not applicable.
adg =R1specify the Kalman filter based algorithm with R2=
1and R1 =
R1. If the variance of the innovations e(t) is not unity but R2; then R2*
Pis the covariance matrix of the parameter estimates, while R1 =
R1/R2 is the covariance matrix of the parameter changes.
The input argument
th0 contains the initial
value of the parameters, a row vector consistent with the rows of
The default value of
th0 is all zeros.
the initial and final values, respectively, of the scaled covariance
matrix of the parameters. The default value of
104 times the unit matrix. The arguments
psi contain initial and final values of the
data vector and the gradient vector, respectively. The sizes of these
depend on the chosen model orders. The normal choice of
to use the outputs from a previous call to
the same model orders. (This call could be a dummy call with default
input arguments.) The default values of
Note that the function requires that the delay
0. If you want
nk = 0,
shift the input sequence appropriately and use
nk = 1.
Estimate Model Parameters Using Recursive Prediction-Error Minimization
Specify the order and delays of a polynomial model structure.
na = 2; nb = 1; nc = 1; nd = 1; nf = 0; nk = 1;
Load the estimation data.
load iddata1 z1
Estimate the parameters using forgetting factor algorithm with forgetting factor 0.99.
EstimatedParameters = rpem(z1,[na nb nc nd nf nk],'ff',0.99);
Get the last set of estimated parameters.
p = EstimatedParameters(end,:);
Construct a polynomial model with the estimated parameters.
sys = idpoly([1 p(1:na)],... % A polynomial [zeros(1,nk) p(na+1:na+nb)],... % B polynomial [1 p(na+nb+1:na+nb+nc)],... % C polynomial [1 p(na+nb+nc+1:na+nb+nc+nd)]); % D polynomial sys.Ts = z1.Ts;

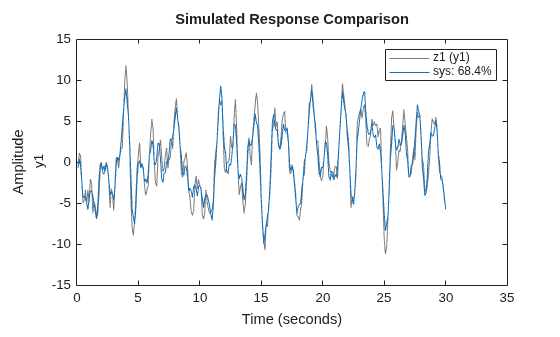

Compare the estimated output with measured data.
The general recursive prediction error algorithm (11.44) of Ljung (1999) is implemented. See also Recursive Algorithms for Online Parameter Estimation.
Introduced before R2006a
