This example shows how to estimate model parameters using linear and nonlinear grey-box modeling.

Use grey-box identification to estimate coefficients of ODEs that describe the model dynamics to fit a given response trajectory.

For linear dynamics, represent the model using a linear grey-box model (

`idgrey`

). Estimate the model coefficients using`greyest`

.For nonlinear dynamics, represent the model using a nonlinear grey-box model (

`idnlgrey`

). Estimate the model coefficients using`nlgreyest`

.

In this example, you estimate the value of the friction coefficient of a simple pendulum using its oscillation data. The equation of motion of a simple pendulum is:

is the angular displacement of the pendulum relative to its state of rest. `g`

is the gravitational acceleration constant. `m`

is the mass of the pendulum and `l`

is the length of the pendulum. `b`

is the viscous friction coefficient whose value is estimated to fit the given angular displacement data. There is no external driving force that is contributing to the pendulum motion.

load(fullfile(matlabroot,'toolbox','ident', ... 'iddemos','data','pendulumdata')); data = iddata(y,[],0.1,'Name','Pendulum'); data.OutputName = 'Pendulum position'; data.OutputUnit = 'rad'; data.Tstart = 0; data.TimeUnit = 's';

The measured angular displacement data is loaded and saved as `data`

, an `iddata`

object with a sample time of 0.1 seconds. The `set`

command is used to specify data attributes such as the output name, output unit, and the start time and units of the time vector.

Assuming that the pendulum undergoes only small angular displacements, the equation describing the pendulum motion can be simplified:

Using the angular displacement () and the angular velocity () as state variables, the simplified equation can be rewritten in the form:

Here,

The `B`

and `D`

matrices are zero because there is no external driving force for the simple pendulum.

1. Create an ODE file that relates the model coefficients to its state space representation.

function [A,B,C,D] = LinearPendulum(m,g,l,b,Ts) A = [0 1; -g/l, -b/m/l^2]; B = zeros(2,0); C = [1 0]; D = zeros(1,0); end

The function, `LinearPendulum`

, returns the state space representation of the linear motion model of the simple pendulum using the model coefficients `m`

, `g`

, `l`

, and `b`

. `Ts`

is the sample time. Save this function as `LinearPendulum.m`

. The function `LinearPendulum`

must be on the MATLAB® path. Alternatively, you can specify the full path name for this function.

2. Create a linear grey-box model associated with the `LinearPendulum`

function.

m = 1; g = 9.81; l = 1; b = 0.2; linear_model = idgrey('LinearPendulum',{m,g,l,b},'c');

`m`

, `g`

and, `l`

specify the values of the known model coefficients. `b`

specifies the initial guess for the viscous friction coefficient. The `'c'`

input argument in the call to `idgrey`

specifies `linear_model`

as a continuous-time system.

3. Specify `m`

, `g`

, and `l`

as known parameters.

linear_model.Structure.Parameters(1).Free = false; linear_model.Structure.Parameters(2).Free = false; linear_model.Structure.Parameters(3).Free = false;

As defined in the previous step, `m`

, `g`

, and `l`

are the first three parameters of `linear_model`

. Using the `Structure.Parameters.Free`

field for each of the parameters, `m`

, `g`

, and `l`

are specified as fixed values.

4. Create an estimation option set that specifies the initial state to be estimated and turns on the estimation progress display. Also force the estimation algorithm to return a stable model. This option is available only for linear model (idgrey) estimation.

opt = greyestOptions('InitialState','estimate','Display','on'); opt.EnforceStability = true;

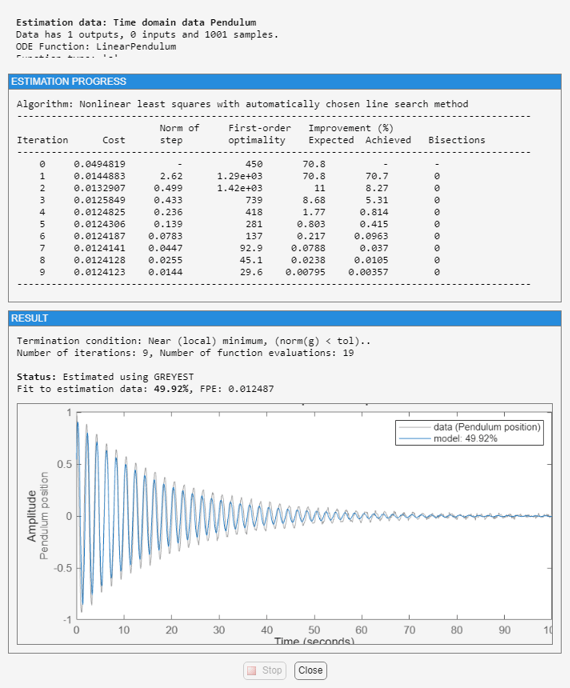

5. Estimate the viscous friction coefficient.

linear_model = greyest(data,linear_model,opt);

The `greyest`

command updates the parameter of `linear_model`

.

```
b_est = linear_model.Structure.Parameters(4).Value;
[linear_b_est,dlinear_b_est] = getpvec(linear_model,'free')
```

linear_b_est = 0.1178 dlinear_b_est = 0.0088

`getpvec`

returns, `dlinear_b_est`

, the 1 standard deviation uncertainty associated with `b`

, the free estimation parameter of `linear_model`

.The estimated value of `b`

, the viscous friction coefficient, using linear grey-box estimation is returned in `linear_b_est`

.

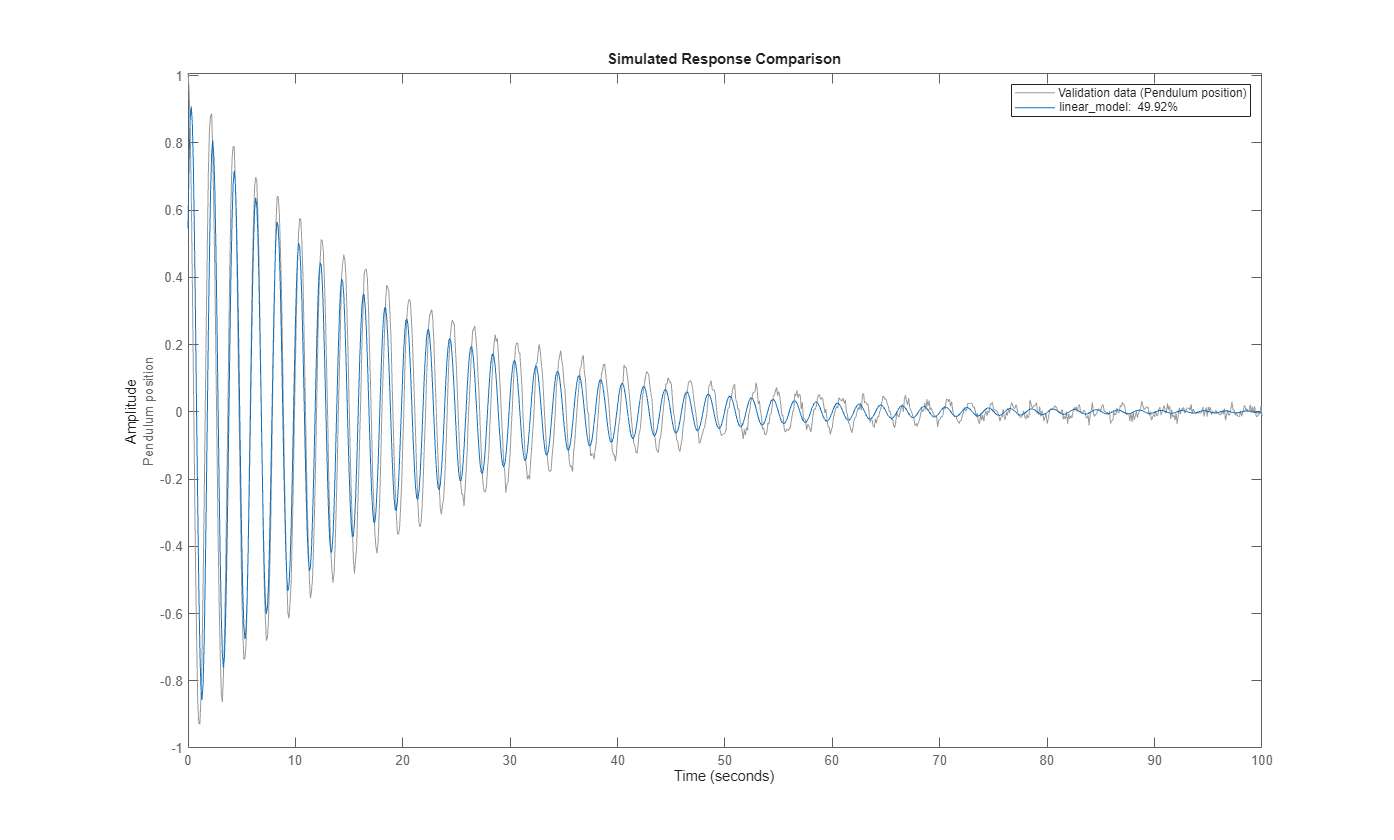

6. Compare the response of the linear grey-box model to the measured data.

compare(data,linear_model)

The linear grey-box estimation model provides a 49.9% fit to measured data. The poor fit is due to the assumption that the pendulum undergoes small angular displacements, whereas the measured data shows large oscillations.

Nonlinear grey-box estimation requires that you express the differential equation as a set of first order equations.

Using the angular displacement () and the angular velocity () as state variables, the equation of motion can be rewritten as a set of first order nonlinear differential equations:

1. Create an ODE file that relates the model coefficients to its nonlinear representation.

function [dx,y] = NonlinearPendulum(t,x,u,m,g,l,b,varargin) % Output equation. y = x(1); % Angular position. % State equations. dx = [x(2); ... % Angular position -(g/l)*sin(x(1))-b/(m*l^2)*x(2) ... % Angular velocity ]; end

The function, `NonlinearPendulum`

, returns the state derivatives and output of the nonlinear motion model of the pendulum using the model coefficients `m`

, `g`

, `l`

, and `b`

. Save this function as `NonlinearPendulum.m`

on the MATLAB® path. Alternatively, you can specify the full path name for this function.

2. Create a nonlinear grey-box model associated with the `NonlinearPendulum`

function.

```
m = 1;
g = 9.81;
l = 1;
b = 0.2;
order = [1 0 2];
parameters = {m,g,l,b};
initial_states = [1; 0];
Ts = 0;
nonlinear_model = idnlgrey('NonlinearPendulum',order,parameters,initial_states,Ts);
```

3. Specify `m`

, `g`

, and `l`

as known parameters.

```
setpar(nonlinear_model,'Fixed',{true true true false});
```

As defined in the previous step, `m`

, `g`

, and `l`

are the first three parameters of `nonlinear_model`

. Using the `setpar`

command, `m`

, `g`

, and `l`

are specified as fixed values and `b`

is specified as a free estimation parameter.

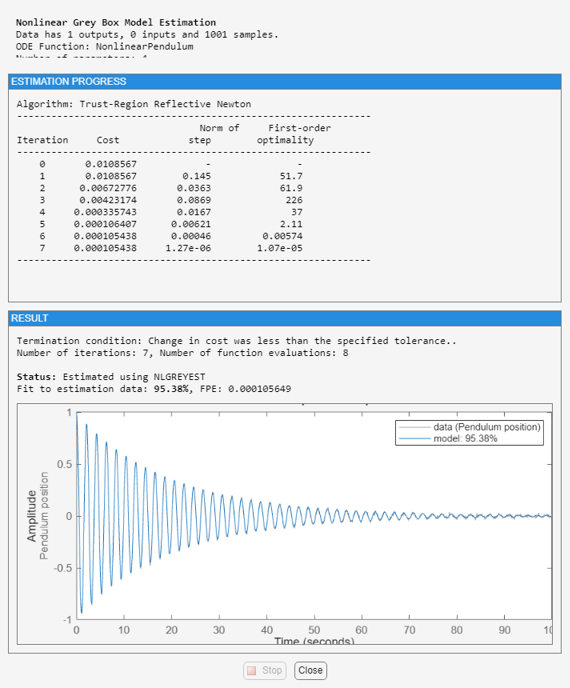

4. Estimate the viscous friction coefficient.

nonlinear_model = nlgreyest(data,nonlinear_model,'Display','Full');

The `nlgreyest`

command updates the parameter of `nonlinear_model`

.

```
b_est = nonlinear_model.Parameters(4).Value;
[nonlinear_b_est, dnonlinear_b_est] = getpvec(nonlinear_model,'free')
```

nonlinear_b_est = 0.1002 dnonlinear_b_est = 0.0149

`getpvec`

returns, as `dnonlinear_b_est`

, the 1 standard deviation uncertainty associated with `b`

, the free estimation parameter of `nonlinear_model`

.The estimated value of `b`

, the viscous friction coefficient, using nonlinear grey-box estimation is returned in `nonlinear_b_est`

.

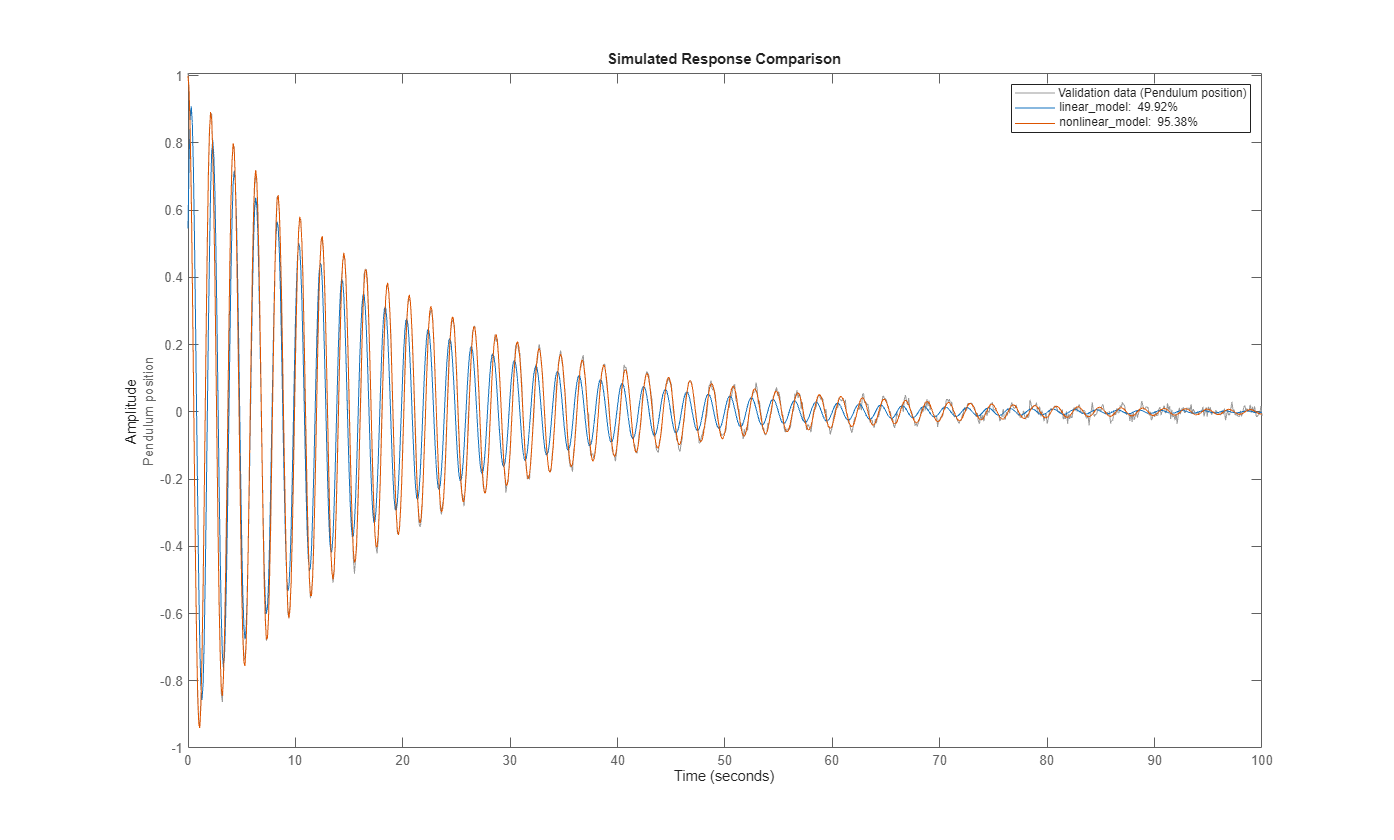

5. Compare the response of the linear and nonlinear grey-box models to the measured data.

compare(data,linear_model,nonlinear_model)

The nonlinear grey-box model estimation provides a closer fit to the measured data.
