# MagnetostaticResults

## Description

A `MagnetostaticResults`

object contains the
magnetic potential, magnetic field, magnetic flux density, and mesh values in a form
convenient for plotting and postprocessing.

The magnetic potential, magnetic field, and magnetic flux density are calculated at the
nodes of the triangular or tetrahedral mesh generated by `generateMesh`

. Magnetic potential values at the nodes appear in the
`MagneticPotential`

property. Magnetic field values at the nodes appear in
the `MagneticField`

property. Magnetic flux density values at the nodes
appear in the `MagneticFluxDensity`

property.

To interpolate the magnetic potential, magnetic field, and magnetic flux density to a
custom grid, such as the one specified by `meshgrid`

, use the `interpolateMagneticPotential`

, `interpolateMagneticField`

, and `interpolateMagneticFlux`

functions.

## Creation

Solve a magnetostatic problem using the `solve`

function. This function returns a solution as a `MagnetostaticResults`

object.

## Properties

`MagneticPotential`

— Magnetic potential values at nodes

vector | `FEStruct`

object

This property is read-only.

Magnetic potential values at nodes, returned as a vector for a 2-D problem or an
`FEStruct`

object for a 3-D problem. The properties of this object
contain the components of the magnetic potential at nodes.

`MagneticField`

— Magnetic field values at nodes

`FEStruct`

object

This property is read-only.

Magnetic field values at nodes, returned as an `FEStruct`

object.
The properties of this object contain the components of the magnetic field at
nodes.

`MagneticFluxDensity`

— Magnetic flux density values at nodes

`FEStruct`

object

This property is read-only.

Magnetic flux density values at nodes, returned as an `FEStruct`

object. The properties of this object contain the components of the magnetic flux
density at nodes.

`Mesh`

— Finite element mesh

`FEMesh`

object

This property is read-only.

Finite element mesh, returned as an `FEMesh`

object. For details,
see FEMesh Properties. For a 3-D model, the mesh must be
linear.

## Object Functions

`interpolateMagneticPotential` | Interpolate magnetic potential in magnetostatic result at arbitrary spatial locations |

`interpolateMagneticField` | Interpolate magnetic field in magnetostatic result at arbitrary spatial locations |

`interpolateMagneticFlux` | Interpolate magnetic flux density in magnetostatic result at arbitrary spatial locations |

## Examples

### Solution to 2-D Magnetostatic Analysis Model

Solve a 2-D electromagnetic problem on a geometry representing a plate with a hole in its center. Plot the resulting magnetic potential and field distribution.

Create an electromagnetic model for magnetostatic analysis.

emagmodel = createpde("electromagnetic","magnetostatic");

Import and plot the geometry representing a plate with a hole.

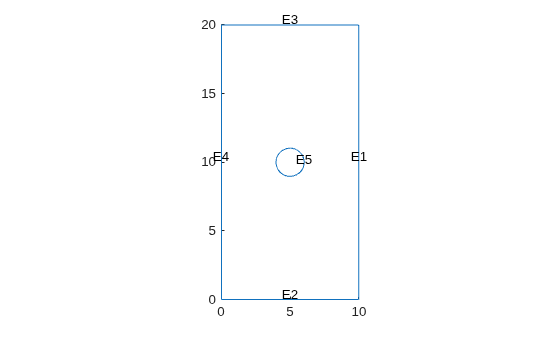

importGeometry(emagmodel,"PlateHolePlanar.stl"); pdegplot(emagmodel,"EdgeLabels","on")

Specify the vacuum permeability value in the SI system of units.

emagmodel.VacuumPermeability = 1.2566370614e-6;

Specify the relative permeability of the material.

`electromagneticProperties(emagmodel,"RelativePermeability",5000);`

Apply the magnetic potential boundary conditions on the edges framing the rectangle and the circle.

electromagneticBC(emagmodel,"MagneticPotential",0,"Edge",1:4); electromagneticBC(emagmodel,"MagneticPotential",0.01,"Edge",5);

Specify the current density for the entire geometry.

`electromagneticSource(emagmodel,"CurrentDensity",0.5);`

Generate the mesh.

generateMesh(emagmodel);

Solve the model.

R = solve(emagmodel)

R = MagnetostaticResults with properties: MagneticPotential: [1218x1 double] MagneticField: [1x1 FEStruct] MagneticFluxDensity: [1x1 FEStruct] Mesh: [1x1 FEMesh]

Plot the magnetic potential and field.

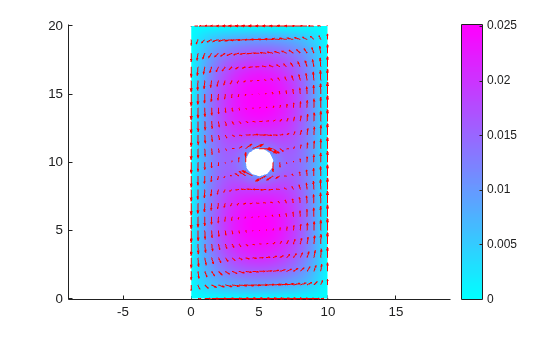

pdeplot(emagmodel,"XYData",R.MagneticPotential, ... "FlowData",[R.MagneticField.Hx ... R.MagneticField.Hy]) axis equal

### Solution to 3-D Magnetostatic Analysis Model

Solve a 3-D electromagnetic problem on a geometry representing a plate with a hole in its center. Plot the resulting magnetic potential and field distribution.

Create an electromagnetic model for magnetostatic analysis.

emagmodel = createpde("electromagnetic","magnetostatic");

Import and plot the geometry representing a plate with a hole.

importGeometry(emagmodel,"PlateHoleSolid.stl"); pdegplot(emagmodel,"FaceLabels","on","FaceAlpha",0.3)

Specify the vacuum permeability value in the SI system of units.

emagmodel.VacuumPermeability = 1.2566370614e-6;

Specify the relative permeability of the material.

`electromagneticProperties(emagmodel,"RelativePermeability",5000);`

Apply the magnetic potential boundary conditions on the side faces and the face bordering the hole.

electromagneticBC(emagmodel,"MagneticPotential",[0;0;0],"Face",3:6); electromagneticBC(emagmodel,"MagneticPotential",[0;0;0.01],"Face",7);

Specify the current density for the entire geometry.

`electromagneticSource(emagmodel,"CurrentDensity",[0;0;0.5]);`

Generate the mesh.

generateMesh(emagmodel);

Solve the model.

R = solve(emagmodel)

R = MagnetostaticResults with properties: MagneticPotential: [1x1 FEStruct] MagneticField: [1x1 FEStruct] MagneticFluxDensity: [1x1 FEStruct] Mesh: [1x1 FEMesh]

Plot the *z*-component of the magnetic potential.

`pdeplot3D(emagmodel,"ColormapData",R.MagneticPotential.Az)`

Plot the magnetic field.

pdeplot3D(emagmodel,"FlowData",[R.MagneticField.Hx ... R.MagneticField.Hy ... R.MagneticField.Hz])

### DC Conduction Solution as Current Density for Magnetostatic Model

Use a solution obtained by performing a DC conduction analysis to specify current density for a magnetostatic model.

Create an electromagnetic model for DC conduction analysis.

emagmodel = createpde("electromagnetic","conduction");

Import and plot a geometry representing a plate with a hole.

gm = importGeometry(emagmodel,"PlateHoleSolid.stl"); pdegplot(gm,"FaceLabels","on","FaceAlpha",0.3)

Specify the conductivity of the material.

`electromagneticProperties(emagmodel,"Conductivity",6e4);`

Apply the voltage boundary conditions on the left, right, top, and bottom faces of the plate.

electromagneticBC(emagmodel,"Voltage",0,"Face",3:6);

Specify the surface current density on the face bordering the hole.

electromagneticBC(emagmodel,"SurfaceCurrentDensity",100,"Face",7);

Generate the mesh.

generateMesh(emagmodel);

Solve the model.

R = solve(emagmodel);

Change the analysis type of the model to magnetostatic.

`emagmodel.AnalysisType = "magnetostatic";`

This model already has a quadratic mesh that you generated for the DC conduction analysis. For a 3-D magnetostatic model, the mesh must be linear. Generate a new linear mesh. The `generateMesh`

function creates a linear mesh by default if the model is 3-D and magnetostatic.

generateMesh(emagmodel);

Specify the vacuum permeability value in the SI system of units.

emagmodel.VacuumPermeability = 1.2566370614e-6;

Specify the relative permeability of the material.

`electromagneticProperties(emagmodel,"RelativePermeability",5000);`

Apply the magnetic potential boundary conditions on the side faces and the face bordering the hole.

electromagneticBC(emagmodel,"MagneticPotential",[0;0;0],"Face",3:6); electromagneticBC(emagmodel,"MagneticPotential",[0;0;0.01],"Face",7);

Specify the current density for the entire geometry using the DC conduction solution.

`electromagneticSource(emagmodel,"CurrentDensity",R);`

Solve the model.

Rmagnetostatic = solve(emagmodel);

Plot the *x*- and *z*-components of the magnetic potential.

`pdeplot3D(emagmodel,"ColormapData",Rmagnetostatic.MagneticPotential.Ax)`

`pdeplot3D(emagmodel,"ColormapData",Rmagnetostatic.MagneticPotential.Az)`

### Solution to 2-D Magnetostatic Model with Permanent Magnet

Solve a magnetostatic model of a copper square with a permanent neodymium magnet in its center.

Create the unit square geometry with a circle in its center.

L = 0.8; r = 0.25; sq = [3 4 -L L L -L -L -L L L]'; circ = [1 0 0 r 0 0 0 0 0 0]'; gd = [sq,circ]; sf = "sq + circ"; ns = char('sq','circ'); ns = ns'; g = decsg(gd,sf,ns);

Plot the geometry with the face and edge labels.

pdegplot(g,"FaceLabels","on","EdgeLabels","on")

Create a magnetostatic model and include the geometry in the model.

emagmodel = createpde("electromagnetic","magnetostatic"); geometryFromEdges(emagmodel,g);

Specify the vacuum permeability value in the SI system of units.

emagmodel.VacuumPermeability = 1.2566370614e-6;

Specify the relative permeability of the copper for the square.

electromagneticProperties(emagmodel,"Face",1, ... "RelativePermeability",1);

Specify the relative permeability of the neodymium for the circle.

electromagneticProperties(emagmodel,"Face",2, ... "RelativePermeability",1.05);

Specify the magnetization magnitude for the neodymium magnet.

M = 1e6;

Specify magnetization on the circular face in the positive *x*-direction. Magnetization for a 2-D model is a column vector of two elements.

dir = [1;0]; electromagneticSource(emagmodel,"Face",2,"Magnetization",M*dir);

Apply the magnetic potential boundary conditions on the edges framing the square.

electromagneticBC(emagmodel,"Edge",1:4,"MagneticPotential",0);

Generate the mesh with finer meshing near the edges of the circle.

```
generateMesh(emagmodel,"Hedge",{5:8,0.007});
figure
pdemesh(emagmodel)
```

Solve the model, and find the resulting magnetic fields *B* and *H*. Here, $\mathit{B}=\mu \mathit{H}+{\mu}_{0}\mathit{M}$, where $\mu $ is the absolute magnetic permeability of the material, ${\mu}_{0}$ is the vacuum permeability, and $\mathit{M}$ is the magnetization.

R = solve(emagmodel); Bmag = sqrt(R.MagneticFluxDensity.Bx.^2 + R.MagneticFluxDensity.By.^2); Hmag = sqrt(R.MagneticField.Hx.^2 + R.MagneticField.Hy.^2);

Plot the magnetic field *B*.

figure pdeplot(emagmodel,"XYData",Bmag, ... "FlowData",[R.MagneticFluxDensity.Bx ... R.MagneticFluxDensity.By])

Plot the magnetic field *H*.

figure pdeplot(emagmodel,"XYData",Hmag, ... "FlowData",[R.MagneticField.Hx R.MagneticField.Hy])
