Reduced-Order Modeling Technique for System-Level Simulation of Aircraft Wing Spar

This example shows how to run system-level simulations by using the Descriptor State-Space block to implement a reduced-order model of the I-beam in an aircraft wing spar. The example follows these steps:

1. Create a finite-element model and a 3-D geometry of an I-beam using Partial Differential Equation Toolbox.

2. Reduce the finite-element model to have fewer degrees of freedom (DoFs) by using the Craig-Bampton reduced-order modeling (ROM) technique.

3. Construct reduced mass and stiffness matrices for use in the Descriptor State-Space block.

4. Model the coupling of aerodynamic loading and wing spar deflection in Simulink® using lookup tables.

5. Simulate the beam deflection and loading by running a parameter sweep across different angles of attack and free-stream velocities.

6. Solve the full finite-element model for maximum deflection load by using the loading from the worst-case system-level simulation.

Create Finite-Element Model and 3-D Geometry of I-Beam

Create a geometry representing the cross-section of the I-beam, composed of rectangles for the web and flanges, both centered on the y-axis.

Define the geometric parameters of the I-beam.

tw = 0.015; % Thickness of the web
hw = 0.09; % Height of the web
tf = 0.02; % Thickness of the flange
wf = 0.08; % Width of the flange
spanOfBeam = 1.5;

Define the web cross-section using four rectangles that partition the web along the symmetric axes. Subdividing the web cross-section provides geometric vertices at the mid-web section, allowing application of lumped lift, drag, and twisting moment loads.

tw_sub = tw/2; % Subdivided thickness/width for each rectangle
hw_sub = hw/2; % Subdivided height for each rectangle

R1 = [3;4;-tw_sub;0;0;-tw_sub;-hw_sub;-hw_sub;0;0]; % bottom left
R2 = [3;4;0;tw_sub;tw_sub;0;-hw_sub;-hw_sub;0;0]; % bottom right
R3 = [3;4;-tw_sub;0;0;-tw_sub;0;0;hw_sub;hw_sub]; % top left
R4 = [3;4;0;tw_sub;tw_sub;0;0;0;hw_sub;hw_sub]; % top right

Define the rectangles for the flanges centered on the y-axis.

R5 = [3;4;-wf/2;wf/2;wf/2;-wf/2;
     hw_sub;hw_sub;hw_sub+tf;hw_sub+tf]; % top flange
R6 = [3;4;-wf/2;wf/2;wf/2;-wf/2;
      -hw_sub;-hw_sub;-hw_sub-tf;-hw_sub-tf]; % bottom flange

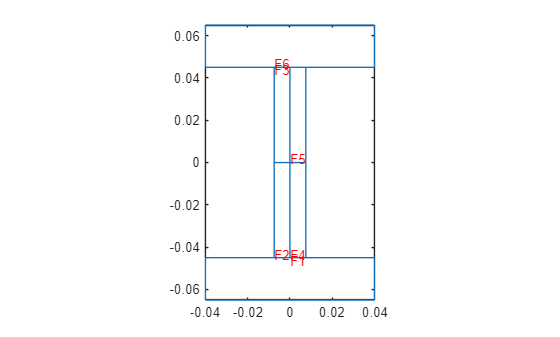

Create and plot the 2-D geometry of the cross-section.

geom_matrix = [R1, R2, R3, R4, R5, R6];
g = decsg(geom_matrix);
gm2D = fegeometry(g);

pdegplot(gm2D,FaceLabels="on")

Create the 3-D beam geometry by extruding the 2-D cross-section along the total length of the wing spar. Create 10 sections along the beam's span by using a vector to specify the height of the extrusion. The numSections variable controls the number of extrusions.

numSections = 10;
extrusions = (spanOfBeam/numSections)*ones(numSections,1);
gm = extrude(gm2D,extrusions);

The extrude function always extrudes a 2-D geometry along the z-axis. Rotate the beam so that its span aligns with the y-axis and deflection aligns with the z-axis to match the typical orientation used in wing analysis.

gm = rotate(gm,-90,[0,0,0],[1,0,0]);

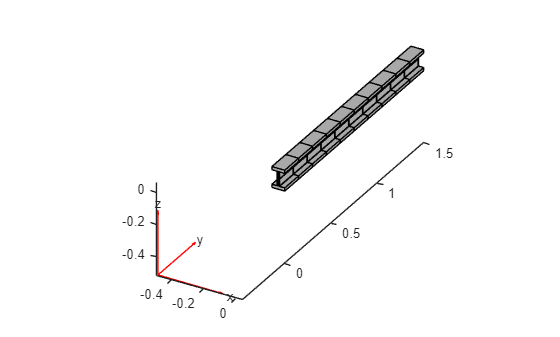

Plot the 3-D geometry.

figure
pdegplot(gm)

Create an femodel object for transient structural analysis and include the I-beam geometry in the model.

model = femodel(AnalysisType="structuralTransient", ...
                Geometry=gm);

Specify Young's modulus, Poisson's ratio, and the mass density of the material.

model.MaterialProperties = ...
    materialProperties(YoungsModulus=210E9, ...
                       PoissonsRatio=0.3, ...
                       MassDensity=7800);

Generate the mesh.

model = generateMesh(model,Hmax=1);

Reduce Finite-Element Model to Fewer Degrees of Freedom

First, identify Interfaces to retain in Craig-Bampton reduction. The Craig-Brampton method computes the modal decomposition of the system and retains some of the physical DoFs in the finite element model. For this example, specify several interface locations where the degrees of freedom (DoFs) are available in the reduced model as physical DoFs for applying loads and boundary conditions. The Craig-Bampton reduction process condenses the remaining DoFs into a few fixed interface modes. In this example, retain one vertex per section at the center of the I-beam to apply lift and drag loads. Additionally, keep a pair of vertices at each section to facilitate the application of twisting moments to the beam. Avoid the fixed end (y = 0) vertices by imposing the condition y > 0.

Locate the vertices at the center of the sections by using the coordinates x = 0 and z = 0.

centerVertexIDs = find(abs(gm.Vertices(:,1))<eps & ...
                       abs(gm.Vertices(:,3))<eps & ...
                       abs(gm.Vertices(:,2))>0);

Locate the vertices at the fore and aft of the midline of the web by using x =tw_sub and x =-tw_sub, respectively, and z = 0.

webFwdVertexIDs = find(abs(gm.Vertices(:,1)-tw_sub)<eps & ...
                       abs(gm.Vertices(:,3))<eps & ...
                       abs(gm.Vertices(:,2))>0);
webAftVertexIDs = find(abs(gm.Vertices(:,1)+tw_sub)<eps & ...
                       abs(gm.Vertices(:,3))<eps & ...
                       abs(gm.Vertices(:,2))>0);

Locate the vertices on the fixed end.

fixedBCVertexIDs = find(abs(gm.Vertices(:,2))<eps);

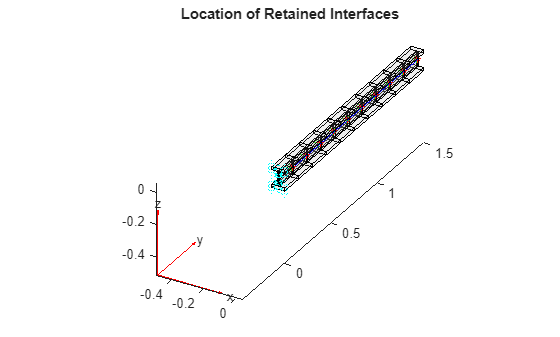

Plot the locations of the retained vertices. The red center vertices show the locations where drag and lift forces are applied. Simulate the twisting moment by applying equal and opposite forces at the green aft and blue fwd locations.

figure
pdegplot(gm,FaceAlpha=0.1)
hold on
markVertices = @(gm,vertexIDs,markerSpec) ...
    plot3(gm.Vertices(vertexIDs,1),...
          gm.Vertices(vertexIDs,2),...
          gm.Vertices(vertexIDs,3),markerSpec);
markVertices(gm,webFwdVertexIDs,"b");
markVertices(gm,webAftVertexIDs,"g*");
markVertices(gm,centerVertexIDs,"r*");
markVertices(gm,fixedBCVertexIDs,"cd");
title("Location of Retained Interfaces")

Define the ROM interfaces using all loaded and fixed vertices.

romIntMid = romInterface(Vertex=...
                        [centerVertexIDs; ...
                         webFwdVertexIDs; ...
                         webAftVertexIDs; ...
                         fixedBCVertexIDs]);

Assign the interface object to the ROMInterfaces property of the model.

model.ROMInterfaces = romIntMid;

Reduce the model while retaining all fixed interface modes up to 10000.

ROM = reduce(model,FrequencyRange=[-inf,10000]);

Construct Reduced Mass and Stiffness Matrices

To simulate transient dynamics in Simulink:

• Apply proper constraints to the reduced mass and stiffness matrices available in the ROM to prevent rigid body motion.

• Identify the locations of various DoFs in the constrained ROM to apply loads and extract displacement from the solution.

First create a function to retrieve the finite-element DoFs based on geometric vertex IDs.

getFEDoFForVertex = @(msh,vertexIDs) findNodes(msh,'region',Vertex=vertexIDs)' + [0,1,2]*size(msh.Nodes,2);

The getFEDoFForVertex function returns a matrix with three columns, each corresponding to a spatial direction (x,y,z). Use this function to obtain the finite-element DoFs for all vertices of interest.

centerDoFs = getFEDoFForVertex(ROM.Mesh,centerVertexIDs);
webFwdDoFs = getFEDoFForVertex(ROM.Mesh,webFwdVertexIDs);
webAftDoFs = getFEDoFForVertex(ROM.Mesh,webAftVertexIDs);
fixedDoFs = getFEDoFForVertex(ROM.Mesh,fixedBCVertexIDs);

Apply the fixed boundary condition by eliminating those DoFs from the ROM to obtain a properly constrained ROM system.

unconstrainedDOF = find(~ismember(ROM.RetainedDoF,fixedDoFs(:)));
modalDoF = numel(ROM.RetainedDoF) + (1:ROM.NumModes);
sysDof = [unconstrainedDOF; modalDoF'];
Kconstrained = ROM.K(sysDof, sysDof);
Mconstrained = ROM.M(sysDof, sysDof);

Next, construct a dictionary to map all finite-element DoFs to their locations in the constrained ROM matrices, which already excludes the fixedDoF. This dictionary assists in locating the DoFs corresponding to centerDoF, webFwdDoF, and webAftDoF in the constrained ROM for load application.

ROMDoFs = setdiff(ROM.RetainedDoF, fixedDoFs(:));
MapROMDoF2Index = dictionary(ROMDoFs', 1:numel(ROMDoFs));

Identify the locations of the DoFs corresponding to drag, lift, and twisting loads in the ROM.

centerDoFROMIdx = MapROMDoF2Index(centerDoFs);
webFwdDoFROMIdx = MapROMDoF2Index(webFwdDoFs);
webAftDoFROMIdx = MapROMDoF2Index(webAftDoFs);
DragDoFROMIdx = centerDoFROMIdx(:, 1);
LiftDoFROMIdx = centerDoFROMIdx(:, 3);
fwdXROMIdx = webFwdDoFROMIdx(:,1);
fwdZROMIdx = webFwdDoFROMIdx(:,3);
aftXROMIdx = webAftDoFROMIdx(:,1);
aftZROMIdx = webAftDoFROMIdx(:,3);

Apply damping and expand the second-order in time system to a first-order system. Construct the reduced mass and stiffness matrices, Mode and Kode, to use in Simulink model.

alpha = 0.001;
beta = 0.1;
nDoF = size(Mconstrained,1);
Mode = [speye(nDoF,nDoF),sparse(nDoF,nDoF); ...
        alpha*Mconstrained+beta*Kconstrained,Mconstrained];
Kode = [sparse(nDoF,nDoF),-speye(nDoF,nDoF); ...
        Kconstrained,sparse(nDoF,nDoF)];

Model Aerodynamic Loads and Wing Spar Deflection

In Simulink model, use the aerodynamic lift, drag, and moment coefficients to provide force inputs to the finite-element model at discrete locations along the span-wise locations. The aerodynamic forces and moments are coupled with the structural dynamics because the deformation of the wing causes a change in the air flowing around the wing. Feed the deformation of the finite-element model back into the aerodynamic calculations to capture this aeroelastic phenomenon.

The forces generated in the area between these stations are concentrated at a point load at the quarter chord location, according to the conventions of aerodynamic coefficients. Simulink calculates the aerodynamic forces and moments using these equations:

$\mathrm{Lift}=\frac{1}{2}\rho {\mathit{V}}_{\infty }^2\mathit{S}{\mathit{C}}_{\mathit{L}}$, $\mathrm{Drag}=\frac{1}{2}\rho {\mathit{V}}_{\infty }^2\mathit{S}{\mathit{C}}_{\mathit{D}}$, $\mathrm{Moment}=\frac{1}{2}\rho {\mathit{V}}_{\infty }^2\mathit{S}\mathit{c}{\mathit{C}}_{\mathit{M}}$.

Here, $\rho$ is the air density, ${\mathit{V}}_{\infty }^{}$is the airspeed, S is the wing area, C is the aerodynamic coefficient, and c is the chord length. Define the parameters for the Simulink model.

nStations = length(find(aftZROMIdx));
AEROELASTIC = 1; % turn load-deformation coupling on/off in model
chord = 1.0;
areas = chord*extrusions;
rho = 1.225;

The Simulink model uses the aerodynamic coefficients in a lookup table with angle of attack as the query variable. Apply loads and read deformation in 10 span locations. The axis conventions have the air flowing over the wing in the positive x-direction and a positive moment corresponds to a node-up pitching moment.

data = readmatrix('airfoil_coeffs.csv');
coeffs = data(:,[1:3 5]); % save only lift, drag, moment

Each span-wise location has four inputs and four outputs. Define them in the order in which they are used in Simulink. Construct the moment at each station by applying two forces on the beam model, but in opposite directions. Apply the forces at the same distances from the axis of rotation (the y-axis): one force is at a negative and another at a positive x-location. The forces have equal magnitudes in the z-direction: one is in the positive and another in the negative z-direction .

Input

• Lift force (z-direction)

• Drag force (x-direction)

• Forward component of moment (positive x-location)

• Aft component of moment (negative x-location)

inIdx = [LiftDoFROMIdx,DragDoFROMIdx, ...
         fwdZROMIdx,aftZROMIdx]';
inIdx = inIdx(:);

Output

• Forward x-deflection

• Aft x-deflection

• Forward z-deflection

• Aft z-deflection

outIdx = [fwdXROMIdx,aftXROMIdx, ...
          fwdZROMIdx,aftZROMIdx]';
outIdx = outIdx(:);

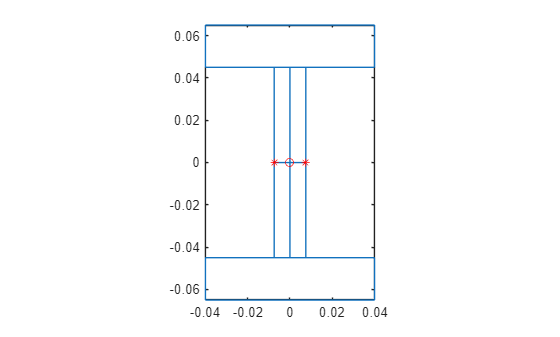

Plot the cross-section of the l-beam and indicate the lift and drag forces acting on the center location of the cross-section by a red circle. Indicate the mesh nodes corresponding to the moment forces and the deflection outputs by the red asterisks on the edge of the web of the cross-section.

figure
pdegplot(gm2D)
hold on
plot(0,0,"ro")
plot([-tw_sub,tw_sub],[0,0],"r*")
hold off

Organize the input and output vectors to stack the four data points at each span location on top of each other. The B matrix of the DSS system ensures that you apply the input forces at the correct state indexes.

nIn = length(inIdx);
Bbot = sparse(nDoF,nIn);
Bbot(inIdx' + (0:nDoF:((nIn-1)*nDoF))) = 1;
Brom = [sparse(nDoF,nIn); Bbot];

Create the C matrix so that the system only outputs the necessary deflection information.

nOut = length(outIdx);
Ctop = sparse(nDoF,nOut);
Ctop(outIdx' + (0:nDoF:((nOut-1)*nDoF))) = 1;
Crom = [Ctop; sparse(nDoF,nOut)]';

Create a function to save the test parameters and maximum deflection to the SimulationOutput object.

function out = postsim(out,aoa,q)
    out.deflection = out.yout(end);
    out.AOA = aoa;
    out.q = q;
end

Simulate Beam Deflection

With the system defined, run the model across a sweep of operating conditions that vary angle of attack and freestream air velocity.

mdl = 'aeroelastic_feedback';
sweepAOA = -16.75:19.25;
sweepVinf = 100:50:250;

clear in
in(1:numel(sweepAOA)*numel(sweepVinf)) = Simulink.SimulationInput(mdl);
in = reshape(in,numel(sweepAOA),numel(sweepVinf));

for i = 1:numel(sweepAOA)
    for j = 1:numel(sweepVinf)
        aoai = sweepAOA(i);
        qi = 0.5*rho*sweepVinf(j)*sweepVinf(j);
        in(i,j) = setBlockParameter(in(i,j), ...
            'aeroelastic_feedback/AOA wrt Root',...
            'Bias',num2str(aoai));
        in(i,j) = setBlockParameter(in(i,j), ...
            'aeroelastic_feedback/Apply aerodynamic loads and moments/Dynamic Presssure (q)', ...
            'Gain',num2str(qi));
        in(i,j) = setPostSimFcn(in(i,j), @(x) postsim(x,aoai,qi));
    end
end

out = parsim(in,TransferBaseWorkspaceVariables="on", ...
                ShowProgress="off");

Starting parallel pool (parpool) using the 'Processes' profile ...
29-Jan-2025 12:21:39: Job Queued. Waiting for parallel pool job with ID 4 to start ...
Connected to parallel pool with 6 workers.

Plot the maximum deflection of each test point by using the SimulationOutput object.

X = zeros(size(out));
Y = zeros(size(out));
Z = zeros(size(out));

for i = 1:size(out,1)
    for j = 1:size(out,2)
        X(i,j) = out(i,j).AOA;
        Y(i,j) = out(i,j).q;
        Z(i,j) = out(i,j).deflection;
    end
end


surf(X,Y,Z);
xlabel("Angle of Attack (deg)");
ylabel("Dynamic Pressure (Pa)");
zlabel("Defelection (m)")

openSimulationManager(in,out)

After a sweep, you can use the resulting highest stress operating conditions as input to the high fidelity finite-element solver and run the analysis to determine the efficacy of the wing spar.

Solve Full Finite-Element Model for Maximum Deflection Load

Find the index of maximum deflection loading and apply those loads. Because aeroelastic coupling affects the load, you must fetch the coupled load from the Simulink output and apply it to all stations of the model.

[v,idx] = max(Z,[],"all");

maxAOA = X(idx);
maxDynamicPresssure = Y(idx);

stations = numel(extrusions);
AeroDynamicLoad = out(idx).logsout{1}.Values.Data(end,:);
AeroDynamicLoad = reshape(AeroDynamicLoad,[],stations);

The AeroDynamicLoad matrix includes lift in the first row, drag in the second row, and the couple forming the twisting moment in the last two rows. The number of columns corresponds to the number of stations.

LiftForce = AeroDynamicLoad(1,:);
DragForce = AeroDynamicLoad(2,:);
MomentCoupleFwd = AeroDynamicLoad(3,:);
MomentCoupleAft = AeroDynamicLoad(4,:);

In Partial Differential Equation Toolbox, apply the force as a three-element vector at each vertex. First, construct a 3-by-n matrix to apply at three sets of vertices: the center of the station, and the forward and aft vertices at the mid-web section. Here, n is the number of stations.

centerVerticesForce(1,:) = DragForce;
centerVerticesForce(3,:) = LiftForce;
webFwdVerticesForce(3,:) = MomentCoupleFwd;
webAftVerticesForce(3,:) = MomentCoupleAft;

Unassigned rows default to zero values in these assignments. Loop through the columns to apply the force vector at three set of vertices at each station.

for i = 1:stations
    model.VertexLoad(centerVertexIDs(i)) = vertexLoad(Force=centerVerticesForce(:,i));
    model.VertexLoad(webFwdVertexIDs(i)) = vertexLoad(Force=webFwdVerticesForce(:,i));
    model.VertexLoad(webAftVertexIDs(i)) = vertexLoad(Force=webAftVerticesForce(:,i));
end

Before simulating the full model, apply the fixed constraint and specify the damping parameters.

model.VertexBC(fixedBCVertexIDs) = vertexBC(Constraint="fixed");
model.DampingAlpha = alpha;
model.DampingBeta = beta;

Solve the model.

tlist = 0:0.01:1;
Rtransient = solve(model,tlist);

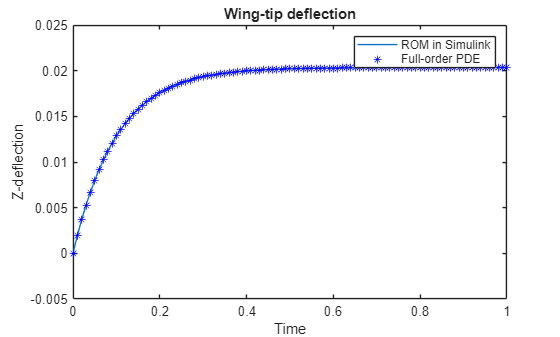

Compare the bending deflection at the wing-tip obtained with the full model to the deflection obtained with ROM simulated in Simulink.

figure
plot(out(idx).tout,out(idx).yout)
hold on
nodeAtWingTipWebAft = getFEDoFForVertex(model.Mesh,webAftVertexIDs(end));
plot(Rtransient.SolutionTimes,Rtransient.Displacement.uz(nodeAtWingTipWebAft(:,1),:),'b*')
title("Wing-tip deflection")
xlabel("Time")
ylabel("Z-deflection")
legend("ROM in Simulink","Full-order PDE")

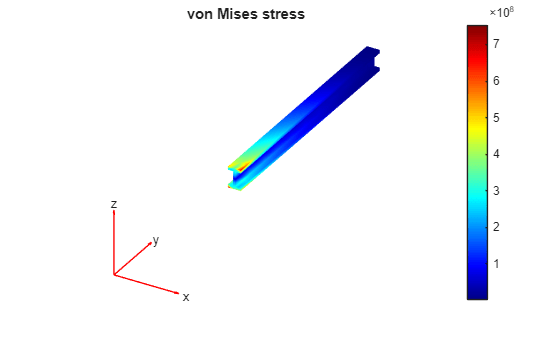

The full model solution also contains stresses in the model. Plot the von Mises stress.

figure
VMstress = Rtransient.evaluateVonMisesStress;
pdeplot3D(model.Mesh,ColorMapData=VMstress(:,end))
title("von Mises stress")
