phased.Transmitter object lets you model key components of the
radar equation including the peak transmit power, the
transmit gain, and a system loss
While the preceding functionality is important in applications dependent on amplitude such as signal detectability, Doppler processing depends on the phase of the complex envelope. In order to accurately estimate the radial velocity of moving targets, it is important that the radar operates in either a fully coherent or pseudo-coherent mode. In the fully coherent, or coherent on transmit, mode, the phase of the transmitted pulses is constant. Constant phase provides you with a reference to detect Doppler shifts.
A transmitter that applies a random phase to each pulse creates phase
noise that can obscure Doppler shifts. If the components
of the radar do not enable you to maintain constant phase, you can
create a pseudo-coherent, or coherent on receive radar
by keeping a record of the random phase errors introduced by the transmitter.
The receiver can correct for these errors by modulation of the complex
phased.Transmitter object enables you to
model both coherent on transmit and coherent on receive behavior.
The transmitter object has the following modifiable properties:
PeakPower— Peak transmit power in watts
Gain— Transmit gain in decibels
LossFactor— Loss factor in decibels
InUseOutputPort— Track transmitter's status. Setting this property to
trueoutputs a vector of 1s and 0s indicating when transmitter is on and off. In a monostatic radar, the transmitter and receiver cannot operate simultaneously.
CoherentOnTransmit— Preserve coherence among transmitter pulses. Setting this property to
true(the default) models the operation of a fully coherent transmitter where the pulse-to-pulse phase is constant. Setting this property to
falseintroduces random phase noise from pulse to pulse and models the operation of a non-coherent transmitter.
PhaseNoiseOutputPort— Output the random pulse phases introduced by non-coherent operation of the transmitter. This property only applies if the
false. By keeping a record of the random pulse phases, you can create a pseudo-coherent, or coherent on receive radar.
Transmit Linear FM Pulse
Amplify and transmit a linear FM pulse.
Construct a transmitter with a peak transmit power of 1000 watts, a transmit gain of 20 decibels (dB), and a loss factor of 0 dB. Set the
InUseOutPutPort property to
true to record the transmitter status. Pulse waveform values are scaled based on the peak transmit power and the ratio of the transmitter gain to loss factor.
transmitter = phased.Transmitter('PeakPower',1e3,'Gain',20,... 'LossFactor',0,'InUseOutputPort',true)
transmitter = phased.Transmitter with properties: PeakPower: 1000 Gain: 20 LossFactor: 0 InUseOutputPort: true CoherentOnTransmit: true
The waveform scaling factor is
sqrt(PeakPower*db2pow(Gain - LossFactor))
Construct a linear FM pulse waveform for transmission. Use a 100 μsec linear FM pulse having a bandwidth of 200 kHz. Use the default sweep direction and sample rate. Set the pulse repetition frequency (PRF) to 2 kHz. Obtain one pulse by setting the
NumPulses property of the
phased.LinearFMWaveform object to unity.
waveform = phased.LinearFMWaveform('PulseWidth',100e-6,'PRF',2e3,... 'SweepBandwidth',200e3,'OutputFormat','Pulses','NumPulses',1);
Generate the pulse by executing the
phased.LinearFMWaveform waveform System object™. Then, transmit the pulse by executing the
phased.Transmitter System object.
wf = waveform(); [txoutput,txstatus] = transmitter(wf); t = unigrid(0,1/waveform.SampleRate,1/waveform.PRF,'[)'); subplot(211) plot(t,real(txoutput)) axis tight grid on ylabel('Amplitude') title('Transmitter Output (real part) - One PRI') subplot(212) plot(t,txstatus) axis([0 t(end) 0 1.5]) xlabel('Seconds') grid on ylabel('Off-On Status') set(gca,'ytick',[0 1]) title('Transmitter Status')
To model a coherent on receive radar, you can set the
false and the
true. You can output the random phase added
to each sample when you execute the System object™.
Transmit Rectangular Pulse with Phase Noise
This example illustrates adding phase noise to a rectangular pulse waveform having five pulses. A random phase is added to each sample of the waveform. Compute the phase of the output waveform and compare the phase to the phase noise returned when executing the System object™.
For convenience, set the gain of the transmitter to 0 dB, the peak power to 1 W, and seed the random number generator to ensure reproducible results.

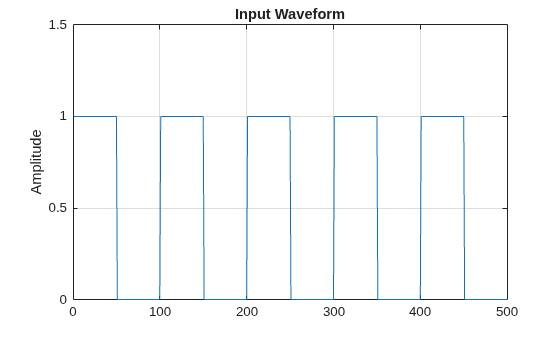

waveform = phased.RectangularWaveform('NumPulses',5); transmitter = phased.Transmitter('CoherentOnTransmit',false,... 'PhaseNoiseOutputPort',true,'Gain',0,'PeakPower',1,... 'SeedSource','Property','Seed',1000); wf = waveform(); [txtoutput,phnoise] = transmitter(wf); phdeg = rad2deg(phnoise); phdeg(phdeg>180)= phdeg(phdeg>180) - 360; plot(wf) title('Input Waveform') axis([0 length(wf) 0 1.5]) ylabel('Amplitude') grid on

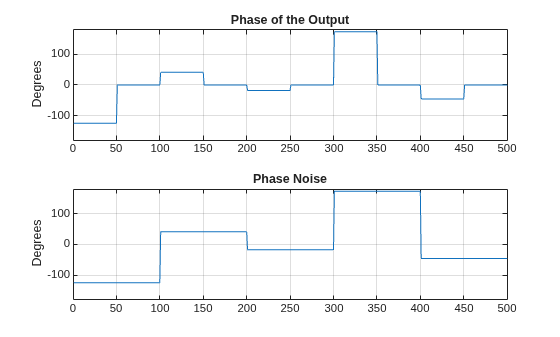

subplot(2,1,1) plot(rad2deg(atan2(imag(txtoutput),real(txtoutput)))) title('Phase of the Output') ylabel('Degrees') axis([0 length(wf) -180 180]) grid on subplot(2,1,2) plot(phdeg) title('Phase Noise'); ylabel('Degrees') axis([0 length(wf) -180 180]) grid on
The first figure shows the waveform. The phase of each pulse at the input to the transmitter is zero. In the second figure, the top plot shows the phase of the transmitter output waveform. The bottom plot shows the phase added to each sample. Focus on the first 100 samples. The pulse waveform is equal to 1 for samples 1-50 and 0 for samples 51-100. The added random phase is a constant -124.7° for samples 1-100, but this affects the output only when the pulse waveform is nonzero. In the output waveform, you see that the output waveform has a phase of -124.7° for samples 1-50 and 0 for samples 51-100. Examining the transmitter output and phase noise for samples where the input waveform is nonzero, you can see that the phase output the System object and the phase of the transmitter output agree.
