Write A ROS Image Message In Simulink®

This example shows how to write a image message and publish it to a ROS network in Simulink®.

Start a ROS network.

Launching ROS Core...
Done in 0.56235 seconds.
Initializing ROS master on
Initializing global node /matlab_global_node_07843 with NodeURI http://dcc451503glnxa64:37185/ and MasterURI http://localhost:53021.

Load a sample image. Create a subscriber to receive a ROS Image message on the /image topic. Specify the message type as sensor_msgs/Image and the data format as struct.

sub = rossubscriber("/image","sensor_msgs/Image",DataFormat="struct");

Open the Simulink® model for writing and publishing ROS Image message.


Ensure that the Publish block is publishing to the /image topic. Under the Simulation tab, select ROS Toolbox > Variable Size Arrays and verify the Data array has a maximum length greater than the length of the Data field in img (921,600).

The model writes the input img to a ROS Image message. Using a Header Assignment block, the frame ID of the message header is set to /camera_depth_optical_frame.

Run the model to publish the message.


The image message is published to the ROS network and received by the subscriber created earlier. You can use the rosReadImage function to retrieve the image in a format that is compatible with MATLAB.

imageFormatted = rosReadImage(sub.LatestMessage);

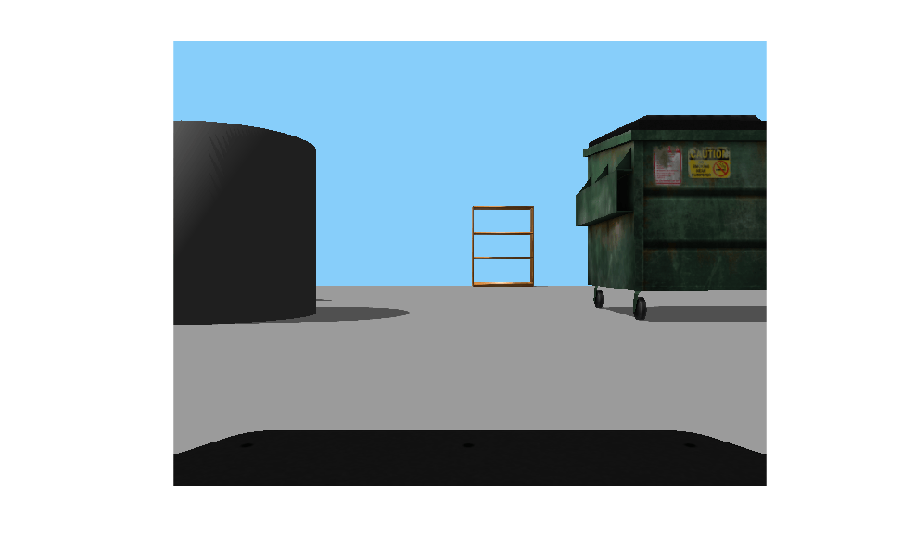

The sample image has an rgb8 encoding. By default, rosReadImage returns the image in a standard 480-by-640-by-3 uint8 format. View this image using the imshow function.


Close the model and shut down the ROS network.

Shutting down global node /matlab_global_node_07843 with NodeURI http://dcc451503glnxa64:37185/ and MasterURI http://localhost:53021.
Shutting down ROS master on
