The Transmissions library provides subsystem templates for modeling geared transmission systems with four to nine speed settings. The templates use Simscape™ Driveline™ and Simscape blocks to represent the gears, clutches, and brakes of a transmission. An embedded Simulink® subsystem defines the clutch schedule for each transmission.
|4-Speed CR-CR||Clutch schedule for a four-speed carrier ring-carrier ring transmission|

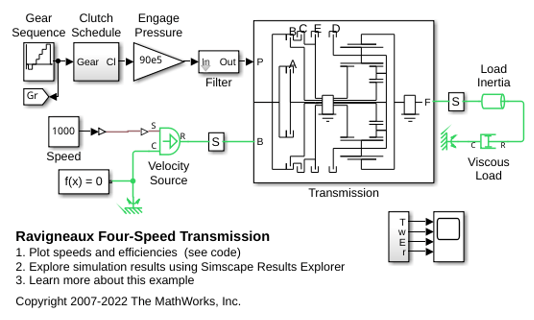

|4-Speed Ravigneaux||Clutch schedule for a four-speed Ravigneaux transmission|
|6-Speed Lepelletier||Clutch schedule for a six-speed Lepelletier transmission|
|7-Speed Lepelletier||Clutch schedule for a seven-speed Lepelletier transmission|
|8-Speed||Clutch schedule for an eight-speed transmission|
|9-Speed||Clutch schedule for a nine-speed transmission|
|10-Speed||Clutch schedule for a 10-speed transmission|
|Transmission||Abstract transmission for system-level driveline modeling|

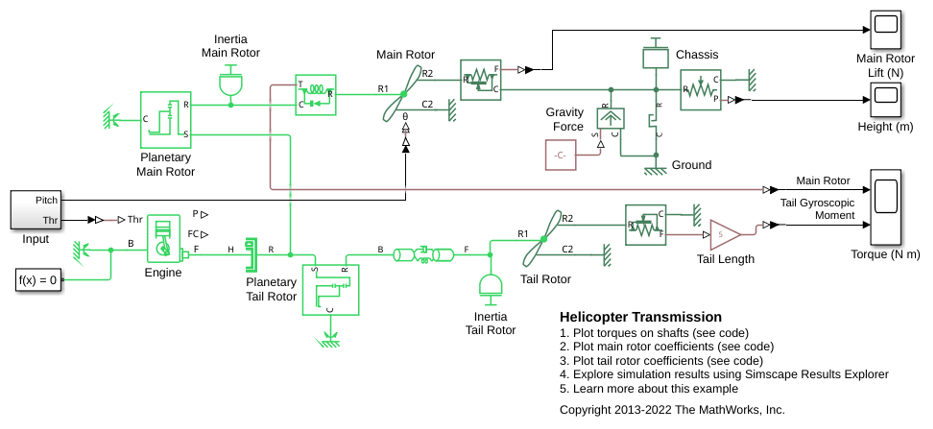

- Modeling Transmissions
Learn the principles and guidelines for transmission modeling.
- Transmission Design Principles and Best Practices
Lean the rules and guidelines for transmission modeling.

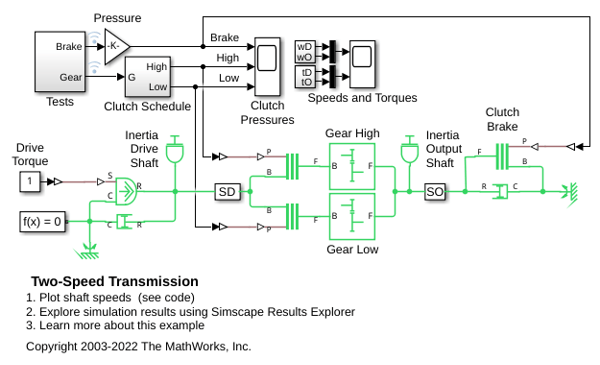

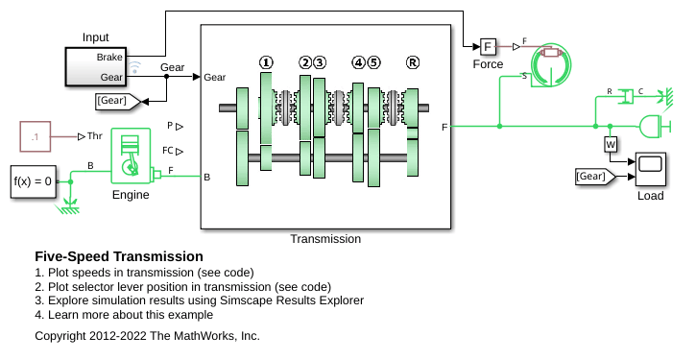

- Model a Two-Speed Transmission with Braking
Model a simple, yet complete, transmission.

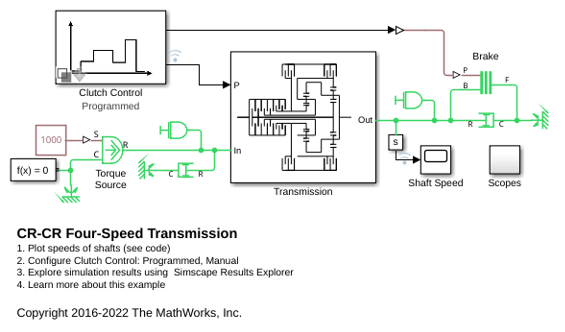

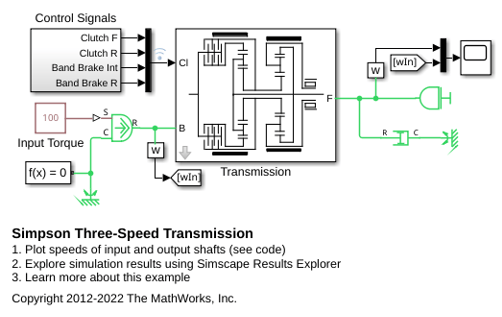

- Model a CR-CR 4-Speed Transmission Driveline with Braking
Transfer motion and torque from one shaft and inertia to another using a realistic transmission model.
