DDR4 Implementation Kit for JEDEC Raw Card B

R2026b
Open Live Script

Implement a 3-slot DDR4 Raw Card B RDIMM interface for pre-layout analysis or post-layout verification.

This DDR4 Raw Card B RDIMM implementation signal integrity kit includes block diagrams, system configurations, transfer nets and libraries, which can be easily modified to match your exact DDR4 implementation. Then, perform complete pre-layout solution space analysis and/or full post-layout verification for waveform quality and timing margins.

Open DDR4 Raw Card B Kit

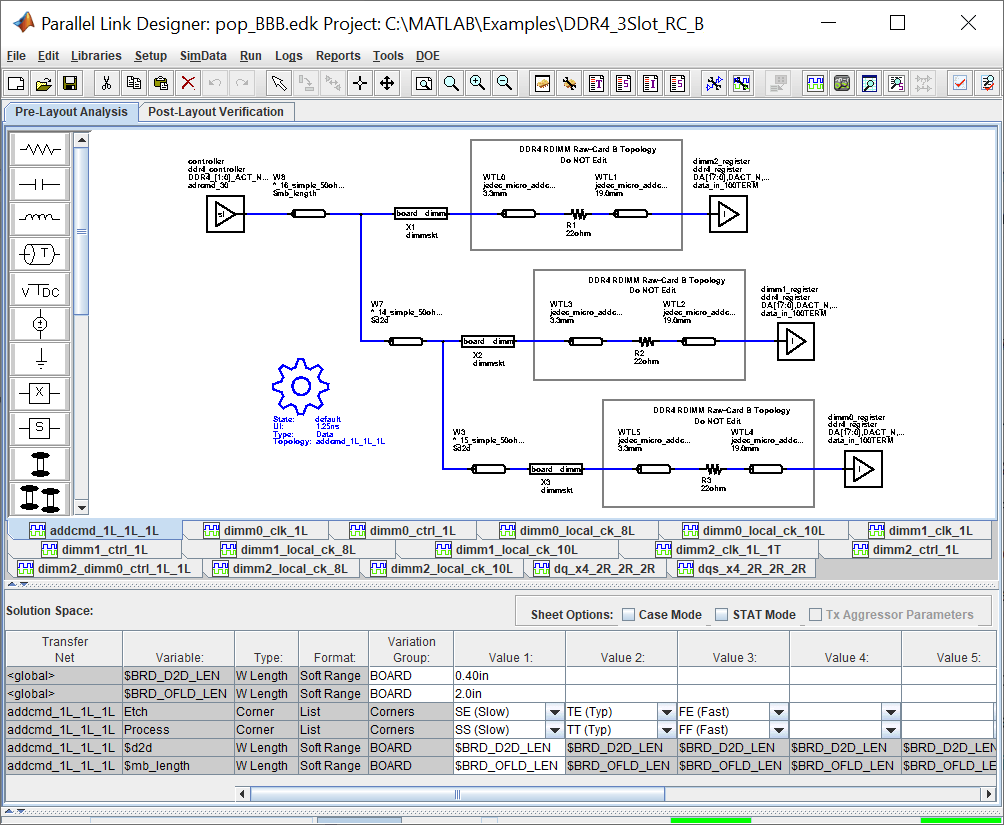

Open the DDR4 Raw Card B kit in the Parallel Link Designer app using the openSignalIntegrityKit function.

openSignalIntegrityKit("DDR4_3Slot_RC_B");


Kit Overview

  • Project Name: DDR4_3Slot_RC_B

  • pop_BBB interface: A 3-slot DDR4 interface with all 3 slots populated with RDIMM modules

  • pop_XBB interface: A 3-slot DDR4 interface with 2 slots populated with RDIMM modules

  • pop_XXB interface: A 3-slot DDR4 interface with 1 slot populated with RDIMM modules

There are two independent DDR4 channels in the generic controller: DDR4_0 and DDR4_1. Only one channel represented in pre-layout analysis. Post-layout analysis automatically extracts and simulates all channels. This is a 288-pin buffered DDR4 RDIMM. There are 72-bits per channel (64 data, 8 ECC) and 3 RDIMM slots per channel: dimm0, dimm1 and dimm2. Each slot can be populated with Raw Card B DDR4 Registered DIMM modules.

This kit supports both HSPICE and IsSpice4 simulators. No specific version of either simulator is required when running this kit.

For more information about the 3-slot DDR4 Raw Card B implementation signal integrity kit, including block diagrams, system configurations, transfer nets and libraries, refer to the document DDR4_3slot_rcB.pdf located inside the kit project directory.
