MultiStateImage

Display image reflecting input value

expand all in page
  • MultiStateImage block

Libraries:
Simulink / Dashboard

Description

The MultiStateImage block displays an image to indicate the value of the input signal. You can use the MultiStateImage block with other Dashboard blocks to build an interactive dashboard of controls and indicators for your model. You can specify pairs of input values and images to provide the information you want during simulation.

Connect Dashboard Blocks

Dashboard blocks do not use ports to connect to model elements. To connect a dashboard block, use connect mode. To enter connect mode on an unconnected block, pause on the block you want to connect and click the Connect button . To enter connect mode on a connected block, select the block, pause on the ellipsis that appears (…), and in the action menu that expands, click the Connect button.

To connect a display block to a signal in your model or change the connection of a display block, enter connect mode. Select the signal line to which you want to connect. From the list that appears, select the signal to which you want to connect. Then, pause on the dashboard block and click the Done Connecting button . To see the dashboard block display the value of the connected block, run the simulation.

For more information about connecting dashboard blocks, see Connect Dashboard Blocks to Simulink Model.

You can also connect dashboard blocks to a Stateflow® chart. For more information, see Connect Dashboard Blocks to Stateflow (Stateflow).

This animation shows how to connect the MultiStateImage block to your model.

An unconnected MultiStateImage block connects to the signal that a Pulse Generator block sends to a Display block.

Examples

expand all

Open Live Script

The model MultiStateImagePulse contains a Pulse Generator block connected to a Display block. The Pulse Generator block generates a square wave pulse with an amplitude of 1 every other second. A MultiStateImage block is connected to the pulseSig signal. The block is configured to display the image of an up arrow when the signal has a value of 1 and a down arrow when the signal has a value of 0.

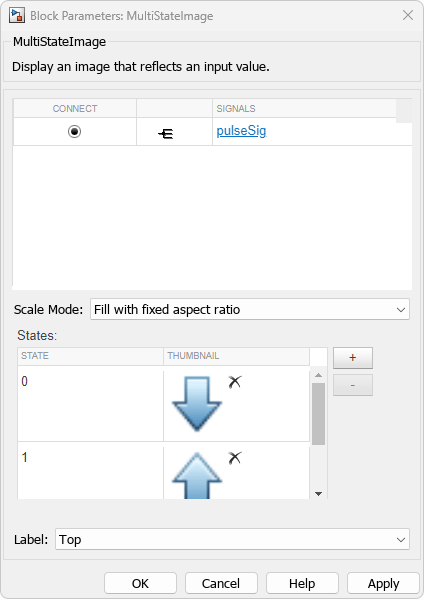

The Block Parameters dialog box for the MultiStateImage

Simulate the model. During simulation, the MultiStateImage block displays an up arrow when the Pulse Generator block generates a pulse and a down arrow when no pulse occurs.

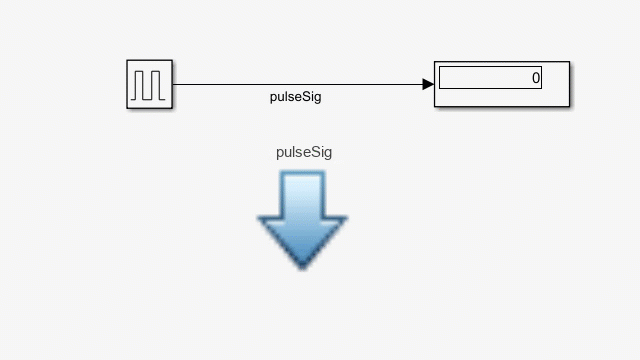

Animation of the MultiStateImagePulse model during simulation

Extended Examples

Create a Realistic Dashboard Using the Circular Gauge Block

Create a Realistic Dashboard Using the Circular Gauge Block

Use the Custom Gauge and MultiStateImage blocks to create a realistic dashboard for your model.

Limitations

  • Except for the Dashboard Scope block and the Display block, dashboard blocks can only connect to real scalar signals.

  • You cannot use the Connection table in the Block Parameters dialog box to connect a dashboard block to a block that is commented out. When you connect a dashboard block to a commented block using connect mode, the dashboard block does not display the connected value until the you uncomment the block.

  • Dashboard blocks cannot connect to model elements inside referenced models.

  • When you simulate a model hierarchy, dashboard blocks inside referenced models do not update.

  • Dashboard blocks do not support rapid accelerator simulation.

  • During simulation, you cannot connect a dashboard block to Stateflow chart data or state activity.

  • You cannot programmatically connect a dashboard block to Stateflow chart data or state activity.

  • Some signals do not have data available during simulation due to block reduction or optimization for accelerator mode simulations. To view such a signal using a dashboard block, mark the signal for logging.

Parameters

expand all

Dashboard blocks do not use ports to connect to model elements. To connect dashboard blocks to parameter values in your model, use connect mode, the Simulink® Toolstrip, or the Connection table in the Block Parameters dialog box. For information about connect mode and how to connect using the toolstrip, see Connect Dashboard Blocks to Simulink Model.

To connect a display block or change the connection of a display block using the Connection table:

  1. Select the block.

  2. To connect the block, in the Property Inspector, on the Parameters tab, click Connect. To change the connection of the block, click Change instead.

  3. Select the signal line to which you want to connect.

  4. In the table, select the signal to which you want to connect.

  5. Click Apply.

You can also connect dashboard blocks to a Stateflow chart. For more information, see Connect Dashboard Blocks to Stateflow (Stateflow).

Programmatic Use

Block Parameter: Binding
Type: Simulink.HMI.SignalSpecification
Default: []

Specify how to scale the image.

Fill with fixed Aspect Ratio scales the image to the size of the block while retaining its original aspect ratio.

Fixed displays the image with its fixed true size.

Fill adjusts the image to fill the block.

Programmatic Use

Block Parameter: ScaleMode
Type: string or character vector
Values: 'Fill with fixed aspect ratio' | 'Fixed' | 'Fill'
Default: 'Fill with fixed aspect ratio'

States match an image to display with a value of the connected variable or parameter. Each state consists of a State and an image, displayed as a Thumbnail in the States table for the MultiStateImage block.

  • State — Connected variable or parameter value that causes the MultiStateImage block to display the corresponding image.

  • Thumbnail — Image to display when the connected variable or parameter value matches the corresponding State.

Click the + button to add another state.

Programmatic Use

To programmatically configure State and Thumbnail parameter values for the MultiStateImage block, use the States parameter. Specify the value for the States parameter as an array of structures with the fields:

  • State — State value.

  • Size — 1-by-2 vector containing the width and height for the image in that order, in pixels, specified as a uint64.

  • Image — Character array of Base64 encoded image data.

  • Thumbnail — Character array of Base64 encoded image data for the thumbnail image to display in the States table in the block dialog box.

Include a structure in the array for each state you want to specify for the block. In the example, the myBase64Image and myBase64Thumbnail variables contain character vectors of the Base64 image data for the block image and thumbnail.

state1.State = 1;
state1.Size = [uint64(400) uint64(400)];
state1.Image = myBase64Image;
state1.Thumbnail = myBase64Thumbnail;
state2.State = 2;
state2.Size = uint64(400) uint64(400)];
state2.Image = myBase64Image2;
state2.Thumbnail = myBase64Thumbnail2;
msiStates = [state1 state2];
Block Parameter: States
Type: structure array

The block displays the default image when the connected signal value does not correspond to any of the specified states. Specify the DefaultImage parameter as a structure containing the fields:

  • Size — 1-by-2 vector containing the width and height for the image in that order, in pixels, specified as uint64.

  • Image — Character array of Base64 encoded image data.

  • Thumbnail — Character array of Base64 encoded image data for the thumbnail image to display in the States table in the block dialog box.

Block Parameter: DefaultImage
Type: structure

Position of the block label. When the block is connected to an element in the model, the label is the name of the connected element.

Programmatic Use

Block Parameter: LabelPosition
Type: character vector
Values: 'Top' | 'Bottom' | 'Hide'
Default: 'Top'

Block Characteristics

Data Types

Boolean | double | enumerated | fixed point | half | integer | single

Direct Feedthrough

no

Multidimensional Signals

no

Variable-Size Signals

no

Zero-Crossing Detection

no

Extended Capabilities

Version History

Introduced in R2016b
