You can find a steady-state operating point using a model simulation. The resulting operating point consists of the state values and model input levels at a specified simulation snapshot time.

To use simulation-based operating point computation, first configure your model
initial conditions such that the model converges to an equilibrium point. You can
then simulate your model and create operating points interactively using the
**Steady State Manager** or **Linear Analysis Tool**. You can
also find snapshots programmatically at the MATLAB^{®} command line using the `findop`

function.

To find operating points using snapshots, the software simulates the model and creates an operating point at each simulation snapshot time. Each operating point contains the input and states values of the model at the corresponding snapshot time.

To verify that the operating point is at steady state, initialize your model with the operating point values, simulate the model, and check if key signals and states are at equilibrium. For more information on initializing your model with an operating point, see Simulate Simulink Model at Specific Operating Point.

If your Simulink^{®} model contains blocks with internal states, do not linearize
the model at an operating point you compute from a simulation snapshot.
Instead, try linearizing the model using a simulation snapshot or at an
operating point found using trimming.

You can find an operating point at specified simulation snapshot times using
the **Steady State Manager**.

Open the Simulink model.

```
sys = 'magball';
open_system(sys)
```

To open the **Steady State Manager**, in the Simulink model window, select **Analysis** > **Control Design** > **Steady State Manager**.

To specify the simulation snapshot time, in the **Steady State
Manager**, on the **Steady State** tab, click
**Snapshots**.

Take simulation snapshots at `1`

and `10`

time units. In the Create Snapshot Operating Point dialog box, in the
**Simulation snapshot times** field, enter
`[1 10]`

.

To take the snapshots, click **Take Snapshots**.

An array of operating points, `op1`

, appears in the
**Data Browser**, in the **Operating
Points** section. This array contains two operating points,
one for each specified snapshot time.

The software also opens a corresponding **op1** document
where you can view the operating points.

To select which operating point to view, use the **Select Operating
Point** drop-down list.

You can find an operating point at specified simulation snapshot times using
the **Linear Analysis Tool**.

Open the Simulink model.

```
sys = 'magball';
open_system(sys)
```

To open the **Linear Analysis Tool**, in the Simulink model window, select **Analysis** > **Control Design** > **Linear Analysis**.

To specify the simulation snapshot time, in the **Linear Analysis
Tool**, on the **Linear Analysis** tab, in the
**Operating Point** drop-down list, select
`Take Simulation Snapshot`

.

Take simulation snapshots at `1`

and `10`

time units. In the Enter snapshot times to linearize dialog box, in the
**Simulation snapshot times** field, enter
`[1 10]`

.

To take the snapshots, click **Take Snapshots**.

An array of operating points, `op_snapshot1`

, appears in
the **Data Browser**, in the **Linear Analysis
Workspace** section. This array contains two operating
points, one for each specified snapshot time.

To view the operating points, in the **Linear Analysis
Workspace**, double-click `op_snapshot1`

.
You can select which operating point to view using the **Select
Operating Point** drop-down list.

This example shows how to compute a steady-state operating point at specified simulation snapshot times.

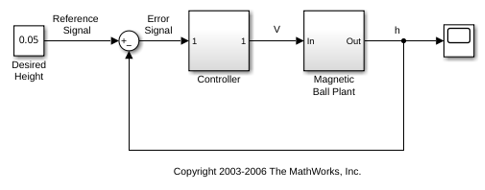

Open the Simulink model.

```
sys = 'magball';
open_system(sys)
```

Simulate the model, and create operating points at `1`

and `10`

time units. The software simulates the model and computes an operating point at each simulation snapshot time.

op = findop(sys,[1 10]);

`op`

is a column vector of operating points, with one element for each specified snapshot time.

Display the first operating point.

op(1)

Operating point for the Model magball. (Time-Varying Components Evaluated at time t=1) States: ---------- (1.) magball/Controller/PID Controller/Filter/Cont. Filter/Filter x: 5.76e-06 (2.) magball/Controller/PID Controller/Integrator/Continuous/Integrator x: 14 (3.) magball/Magnetic Ball Plant/Current x: 7 (4.) magball/Magnetic Ball Plant/dhdt x: -6.7e-08 (5.) magball/Magnetic Ball Plant/height x: 0.05 Inputs: None ----------
