Video Stream FIFO
Control backpressure between hardware logic and upstream video interface
Libraries:
SoC Blockset /
Hardware Logic Connectivity
Description
The Video Stream FIFO block controls the back-pressure from the hardware logic to the upstream video interface. It also controls the flow between the upstream and downstream pixel data interfaces of hardware logic. Integrate this block as a configurable first-in, first-out (FIFO) block for AXI4 video stream applications. The block enables you to configure its depth and set its almost full threshold value.
Examples

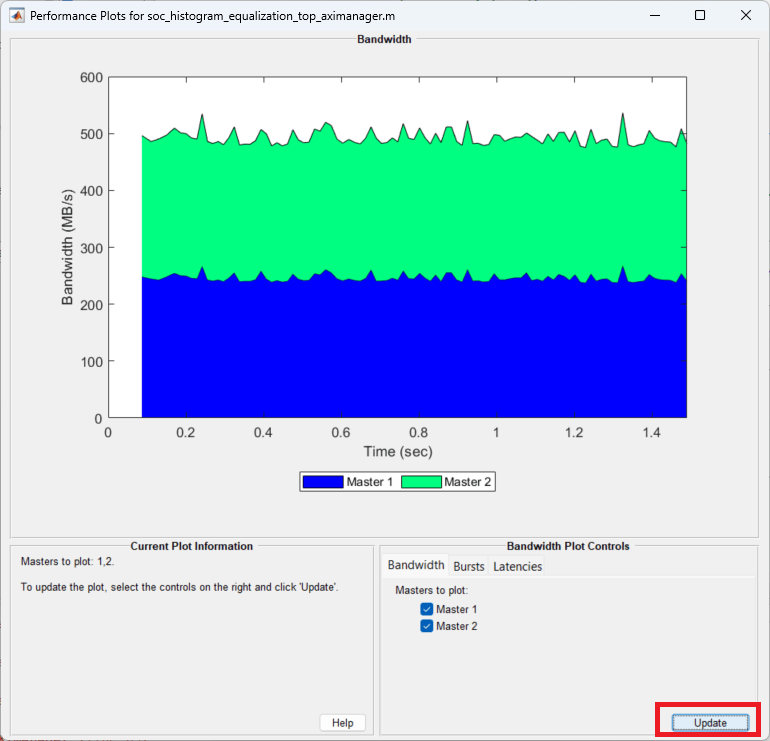

Histogram Equalization Using Video Frame Buffer
Perform histogram equalization with HDMI input and output and using external memory for video frame buffering.
Ports
Input
pixelIn — Input pixel data
scalar
Input pixel data from the data source. Specify this value as a scalar.
Data Types: single
| double
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
| fixed point
ctrlIn — Control signals accompanying input pixel data
pixelcontrol
bus
Control signals accompanying the pixel stream, specified as a
pixelcontrol
bus containing five signals. The signals describe
the validity of the pixel and its location in the frame.
Data Types: pixelcontrol
rdyFromDown — Ready signal from downstream interface
Boolean
scalar
Control signal that indicates if the block can send pixel data to the downstream
interface. When this value is 1
(true), the downstream interface is
ready, and the block can send the pixel data. When this value is 0
(false), the downstream interface is not ready, and the block cannot send the pixel
data.
Data Types: Boolean
Output
pixelOut — Output pixel data
scalar
Output pixel data to the downstream interface. The data type of this output data is the same as the data type of the input data.
Data Types: single
| double
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
| fixed point
ctrlOut — Control signals accompanying output pixel data
pixelcontrol
bus
Control signals accompanying output pixel stream, returned as a
pixelcontrol
bus containing five signals. The signals describe
the validity of the pixel and its location in the frame.
Data Types: pixelcontrol
rdyToUp — Ready signal to upstream interface
Boolean
scalar
Control signal that indicates if the block is ready to receive pixel data from the
upstream interface. When this value is 1
(true), the block is ready
to accept pixel data from the upstream interface. When this value is
0
(false), the block is not ready to accept pixel data from the
upstream interface.
Data Types: Boolean
Parameters
Depth of FIFO — FIFO depth
16
(default) | positive integer
Specify the depth of the FIFO. This value must be a positive scalar integer and is the maximum number of entries that can be buffered before data gets dropped.
Almost full threshold — Almost full threshold value
8
(default) | positive integer
Specify a value that asserts a back-pressure signal from the block to the data source.
To avoid dropping data, set a value allowing the data source enough time to react to backpressure. This value must be a positive integer and smaller than the FIFO depth.
Extended Capabilities
HDL Code Generation
Generate VHDL, Verilog and SystemVerilog code for FPGA and ASIC designs using HDL Coder™.
To automatically generate HDL code for your design, and execute on an SoC device, use the SoC Builder tool. See Use SoC Builder to Generate SoC Design.
Fixed-Point Conversion
Design and simulate fixed-point systems using Fixed-Point Designer™.
Version History
Introduced in R2019a
