System Core
R2026bCreate Simulink® models with the system core peripherals such as general purpose I/O, hardware interrupt, direct memory access (DMA), and more available with STM32™ Microcontroller Blockset. Configure the Simulink model to interface with supported target hardware using model configuration parameters.
Support for STM32 processor based boards with Simulink uses STM32CubeMX graphical tool. STM32CubeMX tool is a graphical interface that you can use to configure peripherals of STM32 processors and generate peripheral initialization code for the STM32 processors that you select. You can configure the STM32 processor based boards to use the STM32CubeMX project with Simulink to generate code and deploy the code to the hardware.
Blocks
 | Digital Port Write | Set GPIO pin status |
 | Digital Port Read | Read GPIO pin status |
 | Hardware Interrupt | Trigger downstream function-call subsystems from interrupt service routine |
Functions
stm32setup | Launch STM32 Microcontroller Blockset hardware setup interface (Since R2026a) |
Topics
- Configure STM32CubeMX with Simulink
Configure STM32 processor-based boards using an STM32CubeMX project in Simulink.
- Set Up Scheduling Options for STM32 Processor-Based Boards
Configure single-rate or multi-rate scheduling on an STM32 processor.
Featured Examples
Get Started with STMicroelectronics STM32 Processor Based Boards
Run a Simulink model on STM32 processor.

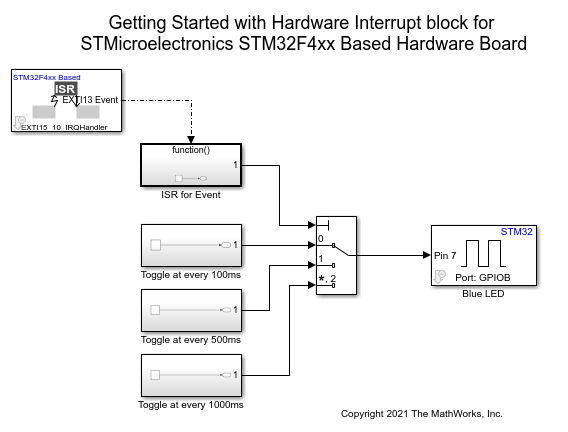

Using Hardware Interrupt Block to Create an ISR on STMicroelectronics STM32 Processor Based Boards
Use a Hardware Interrupt block to create an interrupt service routine (ISR) in the generated code for STM32™ Microcontroller Blockset.
Optimizing FreeRTOS Scheduling on STM32 Processors
Demonstrates how to use the STM32™ Microcontroller Blockset to execute a Simulink® model on the STMicroelectronics NUCLEO-F207ZG board. It guides you through implementing FreeRTOS scheduling within the STM32CubeMX workflow, enabling efficient task management and code execution.
MAT File Logging on SD Card for STMicroelectronics STM32 Processors
Perform MAT-file logging using Simulink model on a Micro SD card mounted on an STMicroelectronics STM32 Discovery board.

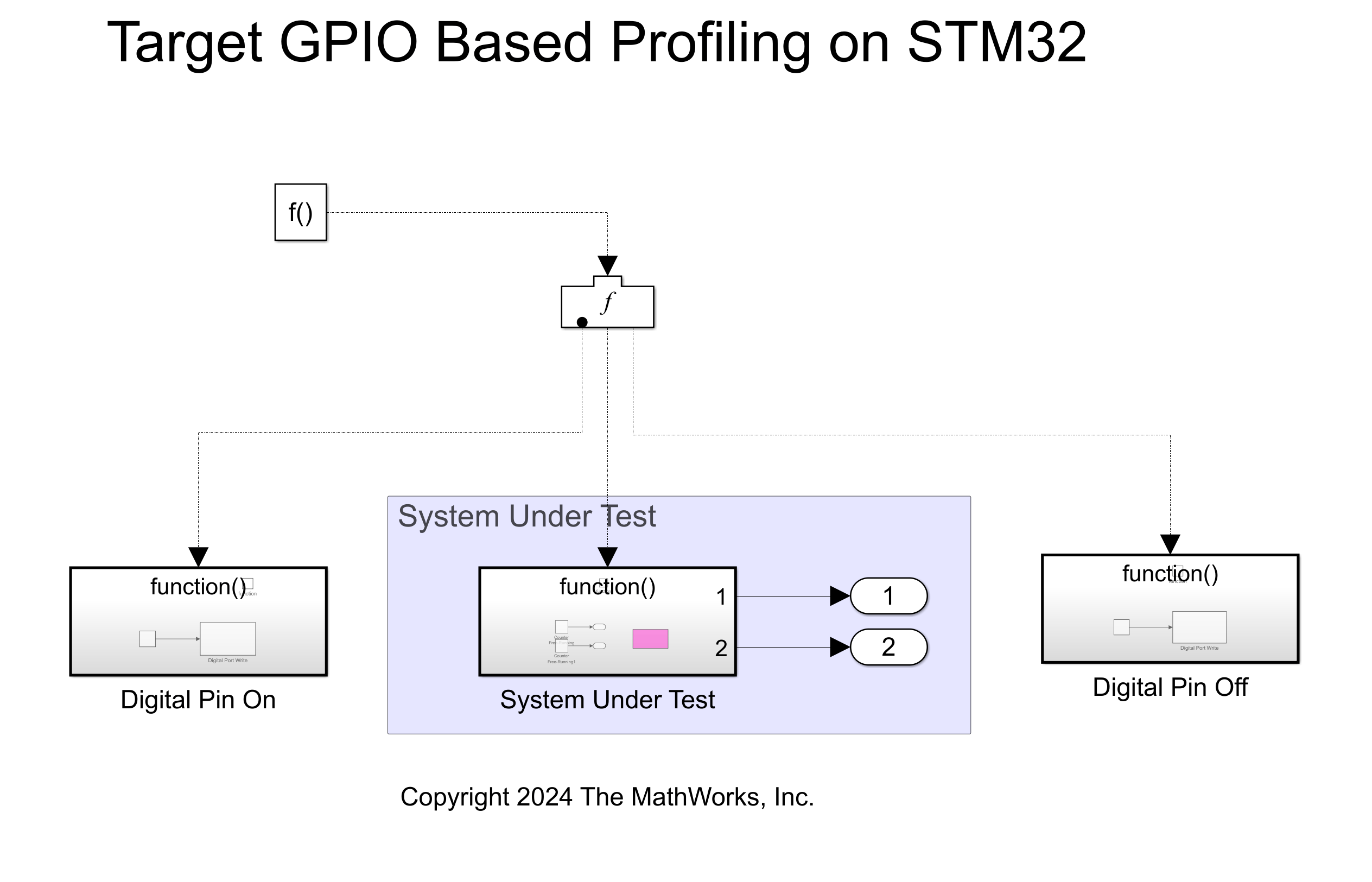

Getting Started with Hardware Profiling
Measure real time execution performance of algorithms on STM32 processors.
Push Button and LED
Use the GPIO blocks to control the push-button and the LED components by using the STM32™ Microcontroller Blockset.
