Create a Candle Plot with Customized Date Axis

This example shows how to generate a candle plot with a customized date axis for the end of the most recent full business day. The candle or candlestick plot indicates the sentiment of trading during several trading periods by including the open, close, high, and low prices in a dense plot.

Read Data

ThingSpeak™ channel 276806 contains delayed financial data for Google (NASDAQ: GOOGL). The data is collected once each day that the market is open. Fields 1, 2, 3, and 4 contain the last, high, and low price and volume values, respectively. Read the data using the thingSpeakRead function.

startTime = datetime('yesterday');
while( isbusday(startTime)==0)
endTime = startTime+days(1);
finTable = thingSpeakRead(276806,'DateRange',[startTime endTime],'outputFormat','timetable');

Generate a Candle Plot

Use the candle function to display a candle plot for Google. Then use the dateaxis function to adjust the readability of the dates on this plot.

dateaxis('x', 2);

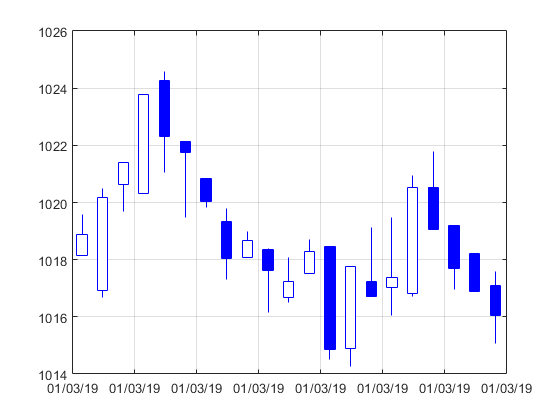

The candle plot shows a detailed summary of the recent stock behavior for Google.
