Independent Suspension  Mapped
Mapped independent suspension
Libraries:
Vehicle Dynamics Blockset /
Suspension
Description

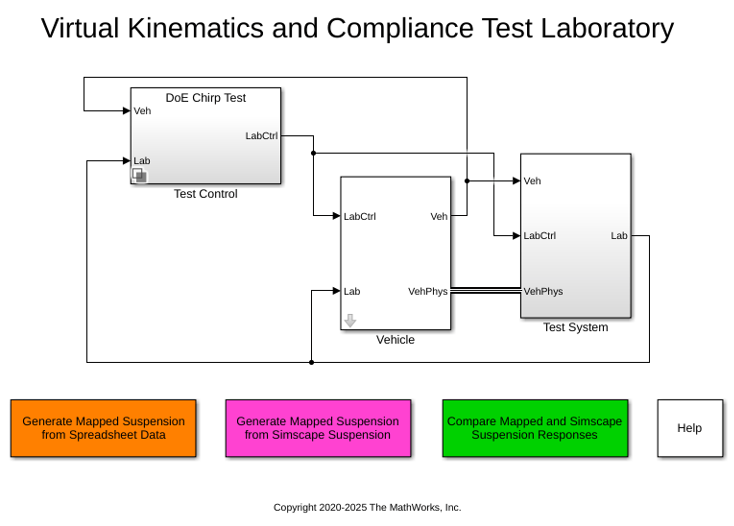

The Independent Suspension  Mapped block implements a mapped independent suspension for multiple axles with multiple wheels per axle. You can use the block to model suspension geometry, compliance, and damping effects from measured or simulated suspension response data.
The block models the suspension compliance, damping, and geometric effects as functions of the relative positions and velocities of the vehicle and wheel carrier with axlespecific compliance and damping parameters. Using the suspension compliance and damping, the block calculates the suspension force on the vehicle and wheel. The block uses the Zdown coordinate system (defined in SAE J670). This table describes the settings you can specify for each suspension element.
Suspension Element  Setting

Axle

Wheel

The block contains energystoring spring elements and energydissipating damper elements. It does not contain energystoring mass elements. The block assumes that the vehicle (sprung) and wheel (unsprung) blocks connected to the block store the massrelated suspension energy.
This table summarizes the block parameter settings for a vehicle with:
Two axles
Two wheels per axle
Steering angle input for both wheels on the front axle
An antisway bar on the front axle
Parameter  Setting

Number of axles, NumAxl

Number of wheels by axle, NumWhlsByAxl

Steered axle enable by axle, StrgEnByAxl

Antisway axle enable by axle, AntiSwayEnByAxl

The block uses the wheel number, t, to index the input and output signals. This table summarizes the wheel, axle, and corresponding wheel number for a vehicle with:
Two axles
Two wheels per axle
Wheel  Axle  Wheel Number

Front left  Front  1
Front right  Front  2
Rear left  Rear  1
Rear right  Rear  2
Suspension Compliance and Damping
The block uses a lookup table that relates the vertical damping and compliance to the suspension height, suspension height rate of change, and steering angle. You can calibrate the wheel force lookup table so that steering angle changes from the nominal center position generate a force that increases the vehicle height.
The block implements these equations.
$$\begin{array}{l}{F}_{wzlooku{p}_{a}}=f({z}_{{v}_{a,t}}{z}_{{w}_{a,t}},{\dot{z}}_{{v}_{a,t}}{\dot{z}}_{{w}_{a,t}},{\delta}_{stee{r}_{a,t}})\\ \\ {F}_{w{z}_{a,t}}={F}_{wzlooku{p}_{a}}+{F}_{zasw{y}_{a,t}}\end{array}$$
The block assumes that the suspension elements have no mass. Therefore, the suspension forces and moments applied to the vehicle are equal to the suspension forces and moments applied to the wheel.
$$\begin{array}{l}{F}_{v{x}_{a,t}}={F}_{w{x}_{a,t}}\\ {F}_{v{y}_{a,t}}={F}_{w{y}_{a,t}}\\ {F}_{v{z}_{a,t}}={F}_{w{z}_{a,t}}\\ \\ {M}_{v{x}_{a,t}}={M}_{w{x}_{a,t}}+{F}_{w{y}_{a,t}}(R{e}_{w{y}_{a,t}}+{H}_{a,t})\\ {M}_{v{y}_{a,t}}={M}_{w{y}_{a,t}}+{F}_{w{x}_{a,t}}\left(R{e}_{w{x}_{a,t}}+{H}_{a,t}\right)\\ {M}_{v{z}_{a,t}}={M}_{w{z}_{a,t}}\end{array}$$
The block sets the wheel positions and velocities equal to the vehicle lateral and longitudinal positions and velocities.
$$\begin{array}{l}{x}_{{w}_{a,t}}={x}_{{v}_{a,t}}\\ {y}_{{w}_{a,t}}={y}_{{v}_{a,t}}\\ {\dot{x}}_{{w}_{a,t}}={\dot{x}}_{{v}_{a,t}}\\ {\dot{y}}_{{w}_{a,t}}={\dot{y}}_{{v}_{a,t}}\end{array}$$
The equations use these variables.
F_{wza,t}, M_{wza,t}  Suspension force and moment applied to the
wheel on axle
F_{wxa,t}, M_{wxa,t}  Suspension force and moment applied to the
wheel on axle
F_{wya,t}, M_{wya,t}  Suspension force and moment applied to the
wheel on axle
F_{vza,t}, M_{vza,t}  Suspension force and moment applied to the
vehicle on axle
F_{vxa,t}, M_{vxa,t}  Suspension force and moment applied to the
vehicle on axle
F_{vya,t}, M_{vya,t}  Suspension force and moment applied to the
vehicle on axle
F_{z0a}  Vertical suspension spring preload force
applied to the wheels on axle
k_{za}  Vertical spring constant applied to wheels on
axle
kwa_{z}  Wheel and axle interface compliance constant
m_{hsteera}  Steering angle to vertical force slope
applied at wheel carrier for wheels on axle

δ_{steera,t}  Steering angle input for axle

c_{za}  Vertical damping constant applied to wheels
on axle
cwa_{z}  Wheel and axle interface damping constant
Re_{wa,t}  Effective wheel radius for axle

F_{zhstopa,t}  Vertical hardstop force at axle

F_{zaswya,t}  Vertical antisway force at axle

Fwa_{z0}  Wheel and axle interface compliance constant
z_{va,t}, ż_{va,t}  Vehicle displacement and velocity at axle

z_{wa,t}, ż_{wa,t}  Wheel displacement and velocity at axle

x_{va,t}, ẋ_{va,t}  Vehicle displacement and velocity at axle

x_{wa,t}, ẋ_{wa,t}  Wheel displacement and velocity at axle

y_{va,t}, ẏ_{va,t}  Vehicle displacement and velocity at axle

y_{wa,t}, ẏ_{wa,t}  Wheel displacement and velocity at axle

H_{a,t}  Suspension height at axle

Re_{wa,t}  Effective wheel radius at axle
a , wheel t
AntiSway Bar
Optionally, use the Antisway axle enable by axle, AntiSwayEnByAxl parameter to implement an antisway bar force, F_{zaswya,t}, for axles that have two wheels. This figure shows how the antisway bar transmits torque between two independent suspension wheels on a shared axle. Each independent suspension applies a torque to the antisway bar via a radius arm that extends from the antisway bar back to the independent suspension connection point.
To calculate the sway bar force, the block implements these equations.
Calculation  Equation

Antisway bar angular deflection for a given axle and wheel, Δϴ_{a,t}
$\begin{array}{l}{\theta}_{0a}={\mathrm{tan}}^{1}\left(\frac{{z}_{0}}{r}\right)\\ \Delta {\theta}_{a,t}={\mathrm{tan}}^{1}\left(\frac{r\mathrm{tan}{\theta}_{0a}{z}_{{w}_{a,t}}+{z}_{{v}_{a,t}}}{r}\right)\end{array}$
Antisway bar twist angle, ϴ_{a}
${\theta}_{a}={\mathrm{tan}}^{1}\left(\frac{r\mathrm{tan}{\theta}_{0a}{z}_{{w}_{a,1}}+{z}_{{v}_{a,1}}}{r}\right){\mathrm{tan}}^{1}\left(\frac{r\mathrm{tan}{\theta}_{0a}{z}_{{w}_{a,2}}+{z}_{{v}_{a,2}}}{r}\right)$
Antisway bar torque, τ_{a}
${\tau}_{a}={k}_{a}{\theta}_{a}$
Antisway bar forces applied to the wheel on axle

$\begin{array}{l}{F}_{zasw{y}_{a,1}}=\left(\frac{{\tau}_{a}}{r}\right)\mathrm{cos}\left({\theta}_{0a}{\mathrm{tan}}^{1}\left(\frac{r\mathrm{tan}{\theta}_{0a}{z}_{{w}_{a,1}}+{z}_{{v}_{a,1}}}{r}\right)\right)\\ {F}_{zasw{y}_{a,2}}=\left(\frac{{\tau}_{a}}{r}\right)\mathrm{cos}\left({\theta}_{0a}{\mathrm{tan}}^{1}\left(\frac{r\mathrm{tan}{\theta}_{0a}{z}_{{w}_{a,2}}+{z}_{{v}_{a,2}}}{r}\right)\right)\end{array}$
The equations and figure use these variables.
τ_{a}
Antisway bar torque
θ
Antisway bar twist angle
θ_{0a}
Initial antisway bar twist angle
Δϴ_{a,t}  Antisway bar angular deflection at axle
a , wheel t
r  Antisway bar arm radius
z_{0}  Vertical distance from antisway bar connection point to antisway bar centerline
F_{zswaya,t}  Antisway bar force applied to the wheel
on axle
z_{va,t}  Vehicle displacement at axle

z_{wa,t}  Wheel displacement at axle

Camber, Caster, and Toe Angles
To calculate the camber, caster, and toe angles, the block uses a lookup table, G_{alookup}, that is a function of the suspension height and steering angle.
$$\left[\begin{array}{ccc}{\xi}_{a,t}& {\eta}_{a,t}& {\zeta}_{a,t}\end{array}\right]={G}_{alookup}f({z}_{{w}_{a,t}}{z}_{{v}_{a,t}},{\delta}_{stee{r}_{a,t}})$$
The equations use these variables.
ξ_{a,t}  Camber angle of wheel on axle

η_{a,t}  Caster angle of wheel on axle

ζ_{a,t}  Toe angle of wheel on axle

δ_{steera,t}  Steering angle input for axle

z_{va,t}  Vehicle displacement at axle

z_{wa,t}  Wheel displacement at axle

Steering Angles
Optionally, you can input steering angles for the wheels. To calculate the steering angles for the wheels, the block offsets the input steering angles as a function of the suspension height. For the calculation, the block uses a lookup table, G_{alookup}, that is a function of the suspension position and steering angle.
${\delta}_{whlstee{r}_{a,t}}={\delta}_{stee{r}_{a,t}}+{G}_{alookup}f\left({z}_{{w}_{a,t}}{z}_{{v}_{a,t}},{\delta}_{stee{r}_{a,t}}\right)$
The equation uses these variables.
δ_{whlsteera,t}  Wheel steering angle for axle

δ_{steera,t}  Steering angle input for axle

z_{va,t}  Vehicle displacement at axle

z_{wa,t}  Wheel displacement at axle

Power and Energy
The block calculates these suspension characteristics for each axle,
a
, and wheel, t
.
Calculation  Equation

Dissipated power, P_{suspa,t}
$${P}_{sus{p}_{a,t}}={F}_{wzlooku{p}_{a}}\left({\dot{z}}_{{v}_{a,t}}{\dot{z}}_{{w}_{a,t}},{\dot{z}}_{{v}_{a,t}}{\dot{z}}_{{w}_{a,t}},{\delta}_{stee{r}_{a,t}}\right)$$
Absorbed energy, E_{suspa,t}
$${E}_{sus{p}_{a,t}}={F}_{wzlooku{p}_{a}}\left({\dot{z}}_{{v}_{a,t}}{\dot{z}}_{{w}_{a,t}},{\dot{z}}_{{v}_{a,t}}{\dot{z}}_{{w}_{a,t}},{\delta}_{stee{r}_{a,t}}\right)$$
Suspension height, H_{a,t}
$${H}_{a,t}=\left({z}_{{v}_{a,t}}{z}_{{w}_{a,t}}\mathrm{median}(f\_susp\_dz\_bp)\right)$$
Distance from wheel carrier center to tire/road interface
$${z}_{wt{r}_{a,t}}=R{e}_{{w}_{a,t}}+{H}_{a,t}$$
The equations use these variables.
m_{hsteera}  Steering angle
to vertical force slope applied at wheel carrier
for wheels on axle

δ_{steera,t}  Steering angle
input for axle
Re_{wa,t}  Axle

f_susp_dz_bp  Vertical axis suspension height breakpoints
z_{wtra,t}  Distance from wheel carrier center to tire/road interface, along the inertialfixed zaxis
z_{va,t}, ż_{va,t}  Vehicle
displacement and velocity at axle
z_{wa,t}, ż_{wa,t}  Wheel
displacement and velocity at axle
Ports
Input
Output
Parameters
References
[1] Gillespie, Thomas. Fundamentals of Vehicle Dynamics. Warrendale, PA: Society of Automotive Engineers, 1992.
[2] Vehicle Dynamics Standards Committee. Vehicle Dynamics Terminology. SAE J670. Warrendale, PA: Society of Automotive Engineers, 2008.
[3] Technical Committee. Road vehicles — Vehicle dynamics and roadholding ability — Vocabulary. ISO 8855:2011. Geneva, Switzerland: International Organization for Standardization, 2011.
