Import Pixel Labeled Dataset For Semantic Segmentation

Open Live Script

This example shows you how to import a pixel labeled dataset for semantic segmentation networks.

A pixel labeled dataset is a collection of images and a corresponding set of ground truth pixel labels used for training semantic segmentation networks. There are many public datasets that provide annotated images with per-pixel labels. To illustrate the steps for importing these types of datasets, the example uses the CamVid dataset from the University of Cambridge [1].

The CamVid dataset is a collection of images containing street level views obtained while driving. The dataset provides pixel-level labels for 32 semantic classes including car, pedestrian, and road. The steps shown to import CamVid can be used to import other pixel labeled datasets.

Download CamVid Dataset

Download the CamVid image data from the following URLs:

imageURL = 'http://web4.cs.ucl.ac.uk/staff/g.brostow/MotionSegRecData/files/701_StillsRaw_full.zip';
labelURL = 'http://web4.cs.ucl.ac.uk/staff/g.brostow/MotionSegRecData/data/LabeledApproved_full.zip';

outputFolder = fullfile(tempdir, 'CamVid');
imageDir = fullfile(outputFolder,'images');
labelDir = fullfile(outputFolder,'labels');

if ~exist(outputFolder, 'dir')
    disp('Downloading 557 MB CamVid data set...');

    unzip(imageURL, imageDir);
    unzip(labelURL, labelDir);
end

Note: Download time of the data depends on your internet connection. The commands used above will block MATLAB® until the download is complete. Alternatively, you can use your web browser to first download the dataset to your local disk. To use the file you downloaded from the web, change the outputFolder variable above to the location of the downloaded file.

CamVid Pixel Labels

The CamVid data set encodes the pixel labels as RGB images, where each class is represented by an RGB color. Here are the classes the dataset defines along with their RGB encodings.

classNames = [ ...
    "Animal", ...
    "Archway", ...
    "Bicyclist", ...
    "Bridge", ...
    "Building", ...
    "Car", ...
    "CartLuggagePram", ...
    "Child", ...
    "Column_Pole", ...
    "Fence", ...
    "LaneMkgsDriv", ...
    "LaneMkgsNonDriv", ...
    "Misc_Text", ...
    "MotorcycleScooter", ...
    "OtherMoving", ...
    "ParkingBlock", ...
    "Pedestrian", ...
    "Road", ...
    "RoadShoulder", ...
    "Sidewalk", ...
    "SignSymbol", ...
    "Sky", ...
    "SUVPickupTruck", ...
    "TrafficCone", ...
    "TrafficLight", ...
    "Train", ...
    "Tree", ...
    "Truck_Bus", ...
    "Tunnel", ...
    "VegetationMisc", ...
    "Wall"];

Define the mapping between label indices and class names such that classNames(k) corresponds to labelIDs(k,:).

labelIDs = [ ...
    064 128 064; ... % "Animal"
    192 000 128; ... % "Archway"
    000 128 192; ... % "Bicyclist"
    000 128 064; ... % "Bridge"
    128 000 000; ... % "Building"
    064 000 128; ... % "Car"
    064 000 192; ... % "CartLuggagePram"
    192 128 064; ... % "Child"
    192 192 128; ... % "Column_Pole"
    064 064 128; ... % "Fence"
    128 000 192; ... % "LaneMkgsDriv"
    192 000 064; ... % "LaneMkgsNonDriv"
    128 128 064; ... % "Misc_Text"
    192 000 192; ... % "MotorcycleScooter"
    128 064 064; ... % "OtherMoving"
    064 192 128; ... % "ParkingBlock"
    064 064 000; ... % "Pedestrian"
    128 064 128; ... % "Road"
    128 128 192; ... % "RoadShoulder"
    000 000 192; ... % "Sidewalk"
    192 128 128; ... % "SignSymbol"
    128 128 128; ... % "Sky"
    064 128 192; ... % "SUVPickupTruck"
    000 000 064; ... % "TrafficCone"
    000 064 064; ... % "TrafficLight"
    192 064 128; ... % "Train"
    128 128 000; ... % "Tree"
    192 128 192; ... % "Truck_Bus"
    064 000 064; ... % "Tunnel"
    192 192 000; ... % "VegetationMisc"
    064 192 000];    % "Wall"

Note that other datasets have different formats of encoding data. For example, the PASCAL VOC [2] dataset uses numeric label IDs between 0 and 21 to encode their class labels.

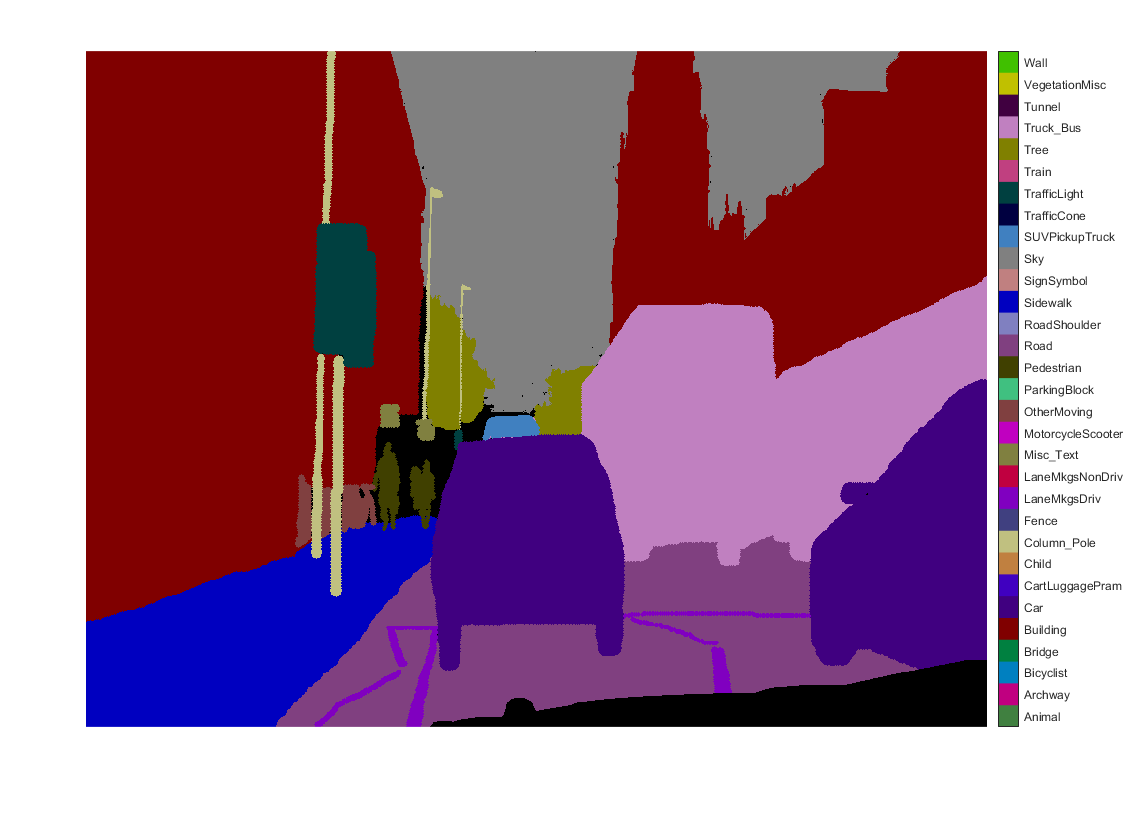

Visualize the pixel labels for one of the CamVid images.

labels = imread(fullfile(labelDir,'0001TP_006690_L.png'));
figure
imshow(labels)

% Add colorbar to show class to color mapping.
N = numel(classNames);
ticks = 1/(N*2):1/N:1;
colorbar('TickLabels',cellstr(classNames),'Ticks',ticks,'TickLength',0,'TickLabelInterpreter','none');
colormap(labelIDs./255)

Load CamVid Data

A pixel labeled dataset can be loaded using an imageDatastore and a pixelLabelDatastore.

Create an imageDatastore to load the CamVid images.

imds = imageDatastore(fullfile(imageDir,'701_StillsRaw_full'));

Create a pixelLabelDatastore to load the CamVid pixel labels.

pxds = pixelLabelDatastore(labelDir,classNames,labelIDs);

Read the 10th image and corresponding pixel label image.

I = readimage(imds,10);
C = readimage(pxds,10);

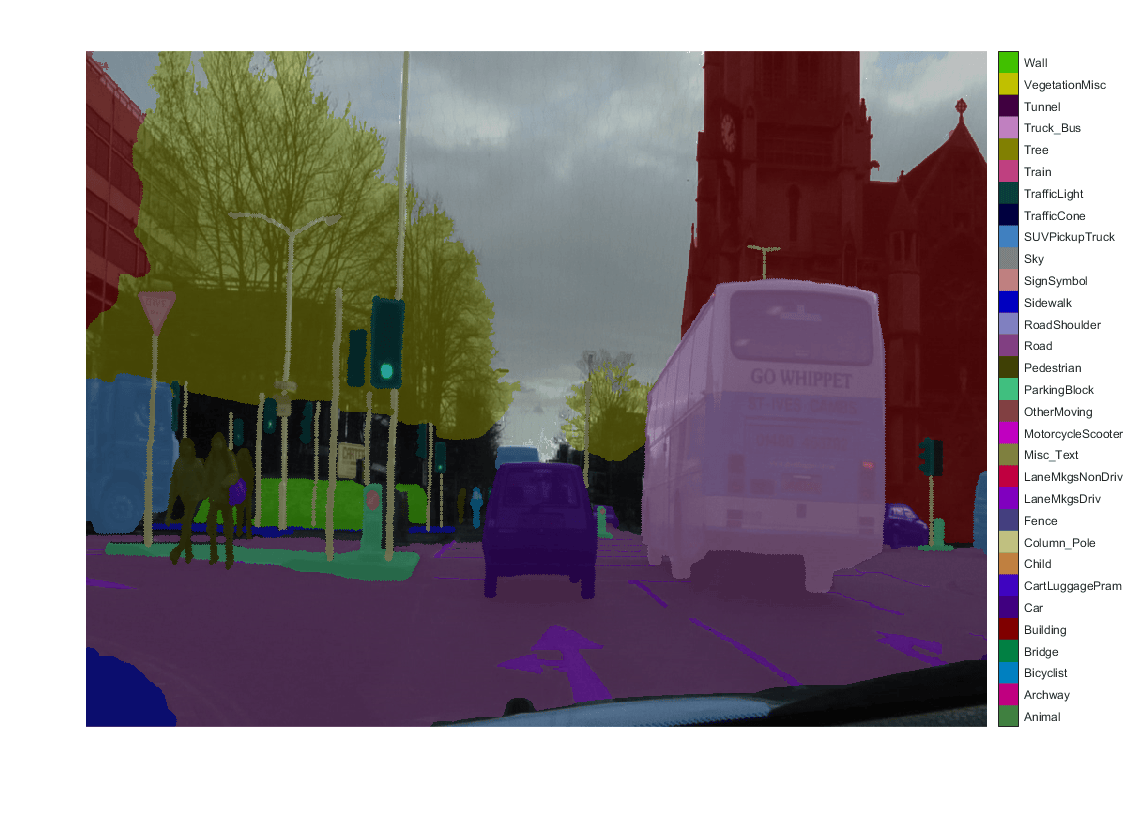

The pixel label image is returned as a categorical array where C(i,j) is the categorical label assigned to pixel I(i,j). Display the pixel label image on top of the image.

B = labeloverlay(I,C,'Colormap',labelIDs./255);
figure
imshow(B)

% Add a colorbar.
N = numel(classNames);
ticks = 1/(N*2):1/N:1;
colorbar('TickLabels',cellstr(classNames),'Ticks',ticks,'TickLength',0,'TickLabelInterpreter','none');
colormap(labelIDs./255)

Undefined or Void Labels

It is common for pixel labeled datasets to include "undefined" or "void" labels. These are used to designate pixels that were not labeled. For example, in CamVid, the label ID [0 0 0] is used to designate the "void" class. Training algorithms and evaluation algorithms are not expected to include these labels in any computations.

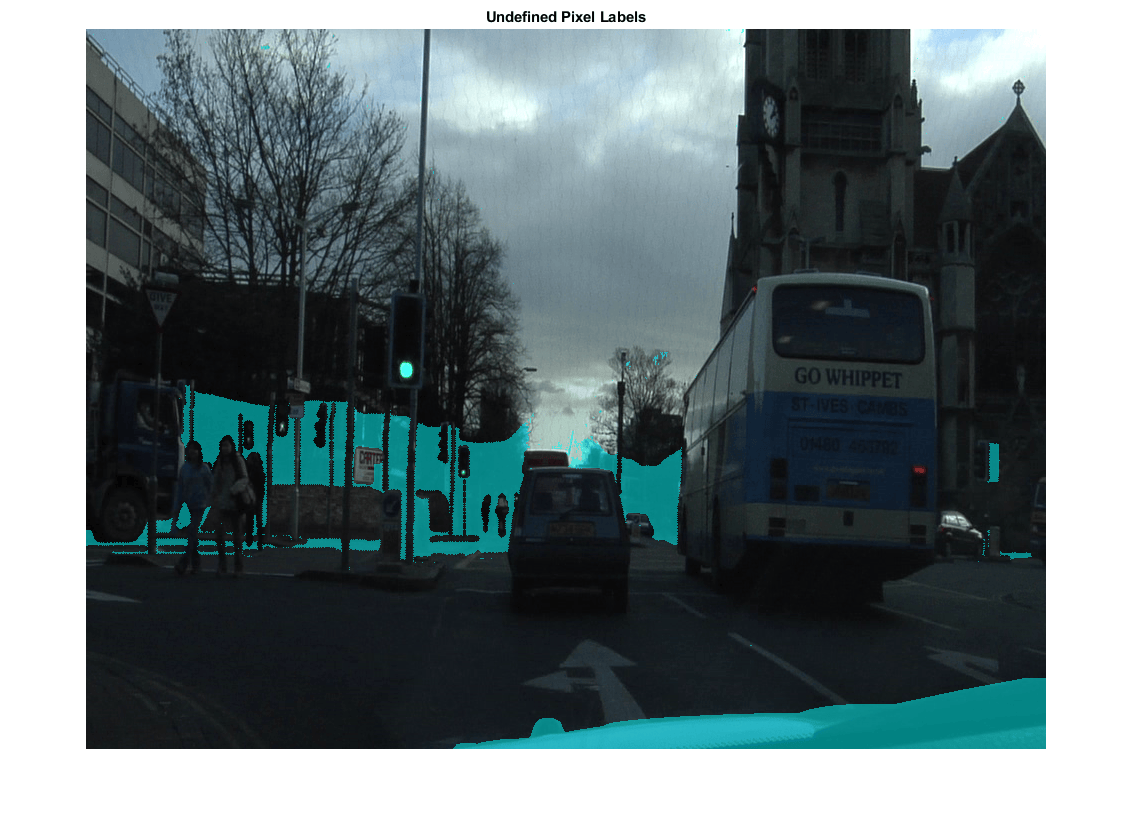

The "void" class need not be explicitly named when using pixelLabelDatastore. Any label ID that is not mapped to a class name is automatically labeled "undefined" and is excluded from computations. To see the undefined pixels, use isundefined to create a mask and then display it on top of the image.

undefinedPixels = isundefined(C);
B = labeloverlay(I,undefinedPixels);
figure
imshow(B)
title('Undefined Pixel Labels')

Combine Classes

When working with public datasets, you may need to combine some of the classes to better suit your application. For example, you may want to train a semantic segmentation network that segments a scene into 4 classes: road, sky, vehicle, pedestrian, and background. To do this with the CamVid dataset, group the label IDs defined above to fit the new classes. First, define the new class names.

newClassNames = ["road","sky","vehicle","pedestrian","background"];

Next, group label IDs using a cell array of M-by-3 matrices.

groupedLabelIDs = {
    % road
    [
    128 064 128; ... % "Road"
    128 000 192; ... % "LaneMkgsDriv"
    192 000 064; ... % "LaneMkgsNonDriv"
    000 000 192; ... % "Sidewalk"
    064 192 128; ... % "ParkingBlock"
    128 128 192; ... % "RoadShoulder"
    ]

    % "sky"
    [
    128 128 128; ... % "Sky"
    ]

    % "vehicle"
    [
    064 000 128; ... % "Car"
    064 128 192; ... % "SUVPickupTruck"
    192 128 192; ... % "Truck_Bus"
    192 064 128; ... % "Train"
    000 128 192; ... % "Bicyclist"
    192 000 192; ... % "MotorcycleScooter"
    128 064 064; ... % "OtherMoving"
    ]

    % "pedestrian"
    [
    064 064 000; ... % "Pedestrian"
    192 128 064; ... % "Child"
    064 000 192; ... % "CartLuggagePram"
    064 128 064; ... % "Animal"
    ]

    % "background"
    [
    128 128 000; ... % "Tree"
    192 192 000; ... % "VegetationMisc"
    192 128 128; ... % "SignSymbol"
    128 128 064; ... % "Misc_Text"
    000 064 064; ... % "TrafficLight"
    064 064 128; ... % "Fence"
    192 192 128; ... % "Column_Pole"
    000 000 064; ... % "TrafficCone"
    000 128 064; ... % "Bridge"
    128 000 000; ... % "Building"
    064 192 000; ... % "Wall"
    064 000 064; ... % "Tunnel"
    192 000 128; ... % "Archway"
    ]
    };

Create a pixelLabelDatastore using the new class and label IDs.

pxds = pixelLabelDatastore(labelDir,newClassNames,groupedLabelIDs);

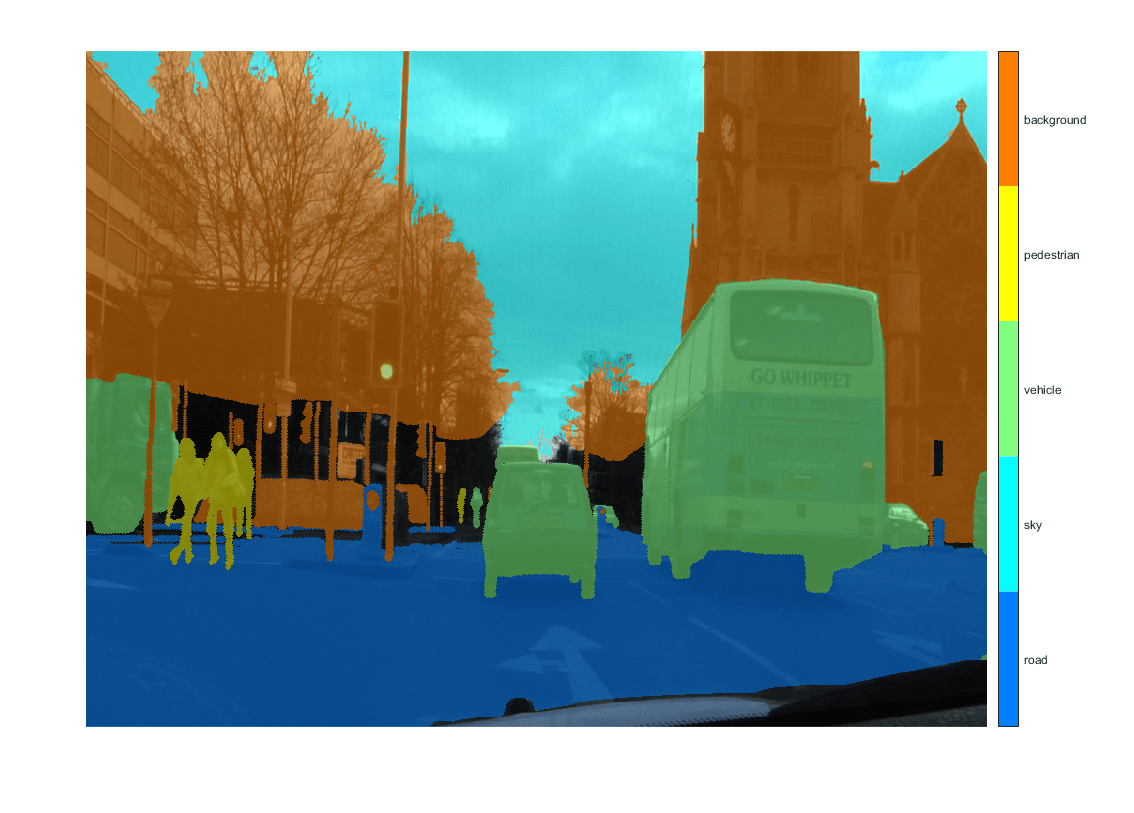

Read the 10th pixel label image and display it on top of the image.

C = readimage(pxds,10);
cmap = jet(numel(newClassNames));
B = labeloverlay(I,C,'Colormap',cmap);
figure
imshow(B)

% add colorbar
N = numel(newClassNames);
ticks = 1/(N*2):1/N:1;
colorbar('TickLabels',cellstr(newClassNames),'Ticks',ticks,'TickLength',0,'TickLabelInterpreter','none');
colormap(cmap)

The pixelLabelDatastore with the new class names can now be used to train a network for the 4 classes without having to modify the original CamVid pixel labels.

References

[1] Brostow, Gabriel J., Julien Fauqueur, and Roberto Cipolla. "Semantic object classes in video: A high-definition ground truth database." Pattern Recognition Letters 30.2 (2009): 88-97.

[2] Everingham, M., et al. "The PASCAL visual object classes challenge 2012 results." See http://www. pascal-network. org/challenges/VOC/voc2012/workshop/index. html. Vol. 5. 2012.
