FIL Frame To Pixels
Convert frame-based video to pixel stream for FPGA-in-the-loop
Libraries:
Vision HDL Toolbox /
I/O Interfaces
Description
The FIL Frame To Pixels block performs the same frame-to-pixel conversion as the Frame To Pixels block. In addition, you can configure the width of the output vector to be a single pixel, a line, or an entire frame. The block returns control signals in vectors of the same width as the pixel data. This optimization makes more efficient use of the communication link between the FPGA board and your Simulink® simulation when using FPGA-in-the-loop (FIL). To run FPGA-in-the-loop, you must have an HDL Verifier™ license.
When you generate a programming file for a FIL target in Simulink, the tool creates a model to compare the FIL simulation with your Simulink design. For Vision HDL Toolbox™ designs, the FIL block in that model replicates the pixel-streaming interface to send one pixel at a time to the FPGA. You can modify the autogenerated model to use the FIL Frame To Pixels and FIL Pixels To Frame blocks to improve communication bandwidth with the FPGA board by sending one frame at a time. For how to modify the autogenerated model, see FPGA-in-the-Loop.
Specify the same video format and vector size for the FIL Frames To Pixels block and the FIL Pixels To Frame block.
Examples

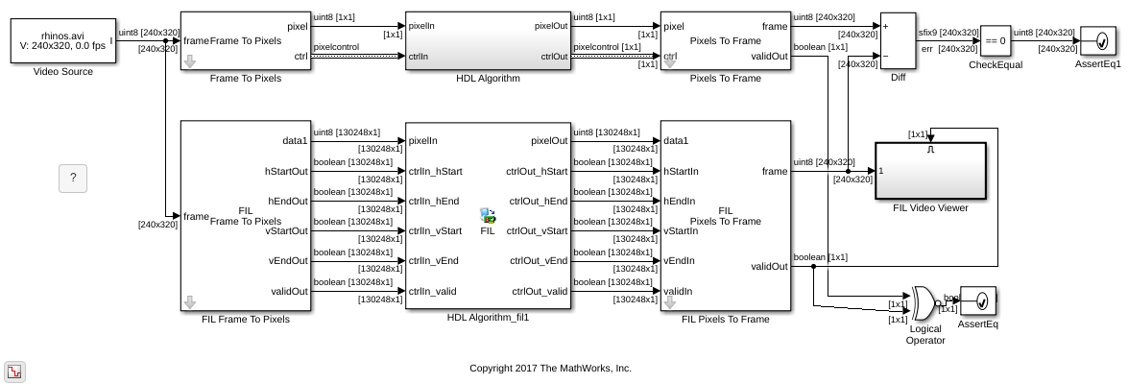

FPGA-in-the-Loop Simulation with Vision HDL Toolbox Blocks
Modify the generated FPGA-in-the-loop (FIL) model for more efficient simulation of the Vision HDL Toolbox™ streaming video protocol.
Ports
Input
frame — Full image frame
matrix
Full image specified as a (Active pixels per line)-by-(Active video lines)-by-N matrix. Height and width are the dimensions of the active image specified in Video format. N is the Number of components used to express a single pixel.
Data Types: single
| double
| int
| uint
| Boolean
| fixed point
Output
data1,...,dataN — Image pixels
vector | matrix
Image pixels, returned as a matrix of M-by-Number of pixels values, where M is the width of the Output vector format. There are N data ports, where N is the Number of components. The data type is the same as the data type of frame.
When you use multipixel streaming, the FIL DUT has Number of pixels data ports. You must split the output matrix into Number of pixels row vectors of length M for the FIL DUT input ports. For details, see FPGA-in-the-Loop Simulation with Multipixel Streaming.
Similarly, when you use multicomponent-multipixel streaming, the FIL DUT has Number of pixels×Number of components data ports. Split the output matrix for each component into Number of pixels row vectors of length M for the FIL DUT input ports.
Data Types: single
| double
| int
| uint
| Boolean
| fixed point
hStartOut — First pixel in horizontal line of frame
vector
First pixel in a horizontal line of a frame, returned as a
Boolean
vector of M values.
For multipixel streaming, hStartOut applies to the pixel with the lowest index in the corresponding column.
Data Types: Boolean
hEndOut — Last pixel in horizontal line of frame
vector
Last pixel in a horizontal line of a frame, returned as a
Boolean
vector of M
values.
For multipixel streaming, hEndOut applies to the pixel with the highest index in the corresponding column.
Data Types: Boolean
vStartOut — First pixel in first (top) line of frame
vector
First pixel in the first (top) line of a frame, returned as a
Boolean
vector of M values.
For multipixel streaming, vStartOut applies to the pixel with the lowest index in the corresponding column.
Data Types: Boolean
vEndOut — Last pixel in last (bottom) line of frame
vector
Last pixel in the last (bottom) line of a frame, returned as a
Boolean
vector of M
values.
For multipixel streaming, vEndOut applies to the pixel with the highest index in the corresponding column.
Data Types: Boolean
validOut — Valid pixel indicator
vector
Valid pixel indicator, returned as a Boolean
vector
of M values.
For multipixel streaming, the pixels in the corresponding column are either all valid or all invalid.
Data Types: Boolean
Parameters
Number of components — Number of values used to represent each pixel
1
(default) | 3
| 4
Number of values used to represent each pixel. Each pixel can have 1, 3, or 4 components.
For grayscale video, set this parameter to
1
.For color video, for example, {R,G,B} or {Y,Cb,Cr}, set this parameter to
3
.For color video with an alpha channel for transparency, set this parameter to
4
.
To process multicomponent streams for blocks that do not support
multicomponent input, replicate the block for each component. The
pixelcontrol
bus for all components is identical, so
you can connect the ctrl output of the Frame To
Pixels block to each replicated block.
Number of pixels — Number of pixels in each column of output matrix
1
(default) | 2
| 4
| 8
Number of pixels in each column of the output matrix, specified as
1
, 2
,
4
, or 8
.
Each data port returns a M-by-Number of pixels matrix. You must split this matrix into Number of pixels row vectors of length M for input to the FIL DUT. For details, see FPGA-in-the-Loop Simulation with Multipixel Streaming.
Output vector format — Size of vector used to communicate with FPGA subsystem
Frame
(default) | Line
| Pixel
Size of the vector used to communicate with the FPGA subsystem. The block returns input pixels and control signals in vectors of the same length. The block calculates the length of the vectors based on the Video format parameter.
Pixel
— Return scalar values for pixel and control signals.Line
— Return (Total pixels per line)-by-1 vectors.Frame
— Return (Total pixels per line × Total video lines)-by-1 vectors.
A larger value results in faster communication between the FPGA board and Simulink. Choose the largest option that the I/O and memory resources on your board can support.
For multipixel streaming, specify one of these options for output size.
Pixel
— Return a 1-by-(Number of pixels) vector of pixel values, and scalar control signals that apply to all the pixels in each vector.Line
— Return a (Total pixels per line/Number of pixels)-by-Number of pixels matrix of pixel values, and a vector of control signals of length (Total pixels per line)/(Number of pixels).Frame
— Return a (Total pixels per line × Total video lines/Number of pixels)-by Number of pixels matrix of pixel values and a vector of control signals of length (Total pixels per line × Total video lines)/Number of pixels.
Dependencies
When Number of pixels and Number of
components are both greater than 1, you must set
Output vector format to
Frame
.
Video format — Dimensions of active and inactive regions in video frame
1080p
(default) | 240p
| 480p
| 480pH
| 576p
| 720p
| 768p
| 1024p
| 1200p
| 2KCinema
| 4KUHDTV
| 8KUHDTV
| Custom
Dimensions of active and inactive regions in a video frame. To select a predefined
format, select from the Video format list. The actual frame
dimensions are displayed in the Video Format Parameters section.
For a custom format, select Custom
, and then specify the dimensions
as integers.
The dimensions are defined in the diagram.
Note
The sample time of your video source must match the total number of pixels in the frame of your Frame To Pixels block. The total number of pixels is Total pixels per line × Total video lines, so set the sample time to this value.
If your frame size is large, you may reach the fixed-step solver step size limit for sample times in Simulink, and receive an error like this.
The computed fixed step size (1.0) is 1000000.0 times smaller than all the discrete sample times in the model.
Video Format | Active Pixels Per Line | Active Video Lines | Total Pixels Per Line | Total Video Lines | Starting Active Line | Ending Active Line | Front Porch | Back Porch |
---|---|---|---|---|---|---|---|---|
240p | 320 | 240 | 402 | 324 | 1 | 240 | 44 | 38 |
480p | 640 | 480 | 800 | 525 | 36 | 515 | 16 | 144 |
480pH | 720 | 480 | 858 | 525 | 33 | 512 | 16 | 122 |
576p | 720 | 576 | 864 | 625 | 47 | 622 | 12 | 132 |
720p | 1280 | 720 | 1650 | 750 | 25 | 744 | 110 | 260 |
768p | 1024 | 768 | 1344 | 806 | 10 | 777 | 24 | 296 |
1024p | 1280 | 1024 | 1688 | 1066 | 42 | 1065 | 48 | 360 |
1080p (default) | 1920 | 1080 | 2200 | 1125 | 42 | 1121 | 88 | 192 |
1200p | 1600 | 1200 | 2160 | 1250 | 50 | 1249 | 64 | 496 |
2KCinema | 2048 | 1080 | 2750 | 1125 | 42 | 1121 | 639 | 63 |
4KUHDTV | 3840 | 2160 | 4400 | 2250 | 42 | 2201 | 88 | 472 |
8KUHDTV | 7680 | 4320 | 8800 | 4500 | 42 | 4361 | 88 | 1032 |
Custom | User- defined | User- defined | User- defined | User- defined | User- defined | User- defined | User- defined | User- defined |
When using a custom format, the values you enter for the active and inactive dimensions of the image must add up to the total frame dimensions. If you specify a format that does not conform to these rules, the block reports an error.
For the horizontal direction, Total pixels per line must be greater than or equal to Front porch + Active pixels per line. The block calculates Back porch = Total pixels per line − Front porch − Active pixels per line.
For the vertical direction, Total video lines must be greater than or equal to Starting active line + Active video lines − 1. The block calculates Ending active line = Starting active line + Active video lines − 1.
When using the Line Buffer block, or blocks that use an internal line buffer, with a custom video format, further requirements apply:
The horizontal blanking interval, or Back porch + Front porch, must meet these guidelines:
The total of Back porch + Front porch must be at least 2 times the largest kernel size of the algorithm in the blocks following the Frame To Pixel block.
If the kernel size is less than 4, and you are using edge padding, the total porch must be at least 8 pixels.
If you disable padding, the total porch must be at least 12 pixels.
The Back porch must be at least 6 pixels. This parameter is the number of inactive pixels before the first valid pixel in a frame.
For more information on blanking intervals, see Configure Blanking Intervals.
When using multipixel streaming (Number of pixels > 1), these requirements apply.
The video format must have horizontal dimensions divisible by the Number of pixels parameter value. The horizontal dimensions are set by these parameters: Active pixels per line, Total pixels per line, Front porch, and Back porch. Standard video protocols 480p, 768p, 1024p, 1080p, 1200p, 4k UHD, and 8k UHD support Number of pixels equal to 4 or 8.
The minimum input frame size for multipixel streaming is 18 rows by 32 columns.
Choose your kernel size and Active pixels per line such that (Active pixels per line)/(Number of pixels) is at least the kernel width.
Extended Capabilities
C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.
This block supports C/C++ code generation for Simulink Accelerator and Rapid Accelerator modes.
Version History
Introduced in R2015aR2022a: Two pixels-per-clock streaming
The block can now generate multipixel streams that have 2 pixels per clock cycle.
R2020b: Multipixel-multicomponent streaming
The block can now generate multipixel-multicomponent streams. When you use multicomponent-multipixel streaming, the FIL DUT has Number of pixels×Number of components data ports. Split the output matrix for each component into Number of pixels row vectors of length M for the FIL DUT input ports.
R2019b: Multipixel streaming
The block can now generate multipixel streams. You can set the Number of
pixels parameter to 4
or
8
. With this setting, the output of the block is a
vector of 4 or 8 pixel values on each time step. For an example of how to use this
feature, see FPGA-in-the-Loop Simulation with Multipixel Streaming.
Video formats for multipixel streams must have horizontal dimensions divisible by the Number of pixels parameter value. These horizontal dimensions are set by the following parameters: Active pixels per line, Total pixels per line, Front porch, and Back porch. Standard video protocols 480p, 720p, 1080p, and 4k UHD support either 4 or 8 pixels at a time.
