Rain propagation model
Model the behavior of electromagnetic radiation from a point of transmission as it
travels through rain  by using a
object. Propagation models for rain are valid from 1 to 1000 GHz, assume line-of-sight (LOS)
conditions, and disregard terrain, the curvature of the Earth, and other
Rain object by using the
RainRate — Rain rate
16 (default) | nonnegative scalar
Rain rate, specified as a nonnegative scalar in millimeters per hour (mm/h).
Tilt — Polarization tilt angle of signal
0 (default) | scalar
Polarization tilt angle of the signal, specified as a scalar in degrees.

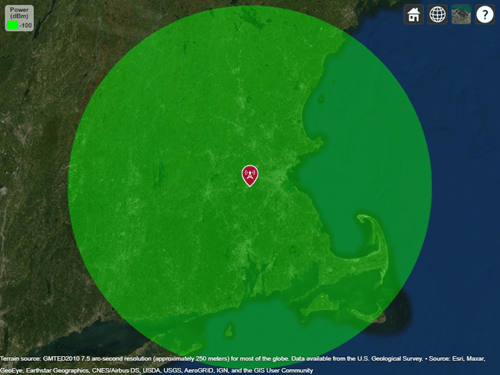

Model Coverage in Heavy Rain
Display the coverage area for a transmitter in heavy rain. Specify the rain rate as 50 millimeters per hour.
pm = propagationModel("rain","RainRate",50); tx = txsite("Name","Apple Hill","Latitude",42.3001,"Longitude",-71.3604); coverage(tx,pm)
 International Telecommunications Union Radiocommunication Sector. Specific attenuation model for rain for use in prediction methods. Recommendation P.838-3. ITU-R, approved March 8, 2005. https://www.itu.int/rec/R-REC-P.838-3-200503-I/en.
 Seybold, John S. Introduction to RF Propagation. Hoboken, N.J: Wiley, 2005.
Introduced in R2017b
