Deploy and Run Sobel Edge Detection on NVIDIA Jetson

Step 3 of 3 in Develop MATLAB Code to Deploy to NVIDIA Jetson

• 1
• 2
• 3

This step of the example shows how to deploy a MATLAB® function onto an NVIDIA® Jetson™ board. You generate CUDA® code that takes snapshots using a webcam on the Jetson board, detects edges in the snapshots, and displays the output on the Jetson board. The Jetson board runs the code without using MATLAB.

Connect to NVIDIA Jetson

To deploy the application to the NVIDIA Jetson board, first, create a connection to the board from MATLAB. Then, use the camera name and resolution as input arguments to the entry-point function.

Create Jetson Object

To communicate with the NVIDIA hardware, create a live hardware connection object by using the jetson function.

hwobj = jetson("jetson-name","username","password");

When connecting to the target board for the first time,you must provide the host name or IP address, user name, and password of the target board. On subsequent connections, you do not need to supply the address, user name, and password. The hardware object reuses these settings from the most recent successful connection to an NVIDIA board.

By default, this example reuses the settings from the most recent successful connection to a NVIDIA Jetson board.

hwobj = jetson;

### Checking for CUDA availability on the target...
### Checking for 'nvcc' in the target system path...
### Checking for cuDNN library availability on the target...
### Checking for TensorRT library availability on the target...
### Checking for prerequisite libraries is complete.
### Gathering hardware details...
### Checking for third-party library availability on the target...
### Gathering hardware details is complete.
Board name              : NVIDIA Jetson AGX Xavier Developer Kit
CUDA Version            : 11.4
cuDNN Version           : 8.6
TensorRT Version        : 8.5
GStreamer Version       : 1.16.3
V4L2 Version            : 1.18.0-2build1
SDL Version             : 1.2
OpenCV Version          : 4.5.4
Available Webcams       : Microsoft LifeCam Cinema(TM):
Available GPUs          : Xavier
Available Digital Pins  : 7  11  12  13  15  16  18  19  21  22  23  24  26  29  31  32  33  35  36  37  38  40

During the hardware live object creation, the support package performs hardware and software checks, installs MATLAB IO server on the target board, and gathers information on peripheral devices connected to the target. In case of a connection failure, MATLAB generates a diagnostics error message. If the connection has failed, the most likely cause is incorrect IP address or host name.

List Available Cameras

To detect available cameras on the Jetson board, use the getCameraList function of the hardware object hwobj. If this function outputs an empty table, disconnect and reconnect the camera, and execute the function again.

camlist = getCameraList(hwobj);

              Camera Name              Video Device     Available Resolutions    Pixel Formats
    _______________________________    _____________    _____________________    _____________

    "Microsoft LifeCam Cinema(TM):"    "/dev/video0"    "(View resolutions)"      "YUYV,MJPG"

The getCameraList function lists the optimum resolutions supported by the camera sensor. At these resolutions, the image acquisition pipeline works efficiently. Based on the requirements of your algorithm, you can pick any supported resolution.

This example uses the first camera from the list and a 1280-by-720 resolution.

camName = table2array(camlist(1,"Camera Name"));
camResolution = [1280 720];

Verify GPU Environment on Target Board

Before generating GPU code, verify that the code generation environment has the compilers and libraries necessary for running this example by using the coder.checkGpuInstall (GPU Coder) function.

envCfg = coder.gpuEnvConfig("jetson");
envCfg.BasicCodegen = 1;
envCfg.Quiet = 1;
envCfg.HardwareObject = hwobj;
coder.checkGpuInstall(envCfg);

Prepare Sobel Edge Detection Application for Deployment

The sobelEdgeDetection.m entry-point function implements an algorithm to capture live images from a camera connected to the hardware board, detect edges, and display the result on a monitor connected to the hardware board. The algorithm calculates the convolution of a 3-by-3 Sobel operator with the image in horizontal and vertical directions. The function calculates the magnitude of the convolutions and applies a constant threshold to find edges in the image.

type sobelEdgeDetection.m

function sobelEdgeDetection(cameraName,resolution) %#codegen
%SOBELEDGEDETECTION() Entry-point function for Sobel edge detection
%   This function is the entry-point function that supports examples in
%   MATLAB Coder Support Package for NVIDIA Jetson and NVIDIA DRIVE
%   Platforms that use Sobel algorithms for edge detection.

%   Copyright 2020-2023 The MathWorks, Inc.

hwobj = jetson;
camObj = camera(hwobj,cameraName,resolution);
dispObj = imageDisplay(hwobj);

% Sobel kernel
kern = [1 2 1; 0 0 0; -1 -2 -1];

% Main loop
for k = 1:1000
    % Capture the image from the camera on hardware.
    img = snapshot(camObj);

    % Finding horizontal and vertical gradients.
    h = conv2(img(:,:,2),kern,'same');
    v = conv2(img(:,:,2),kern','same');

    % Finding magnitude of the gradients.
    e = sqrt(h.*h + v.*v);

    % Threshold the edges
    edgeImg = uint8((e > 100) * 240);

    % Display image.
    image(dispObj,edgeImg');
end

end

Generate CUDA Code for the Jetson Target Using GPU Coder

To generate a CUDA executable that you can deploy to an NVIDIA target, create a GPU code configuration object for generating an executable.

cfg = coder.gpuConfig("exe");

To create a configuration object for the Jetson platform and assign it to the Hardware property of the code configuration object, use the coder.hardware function.

cfg.Hardware = coder.hardware("NVIDIA Jetson");

To specify the folder for performing remote build process on the target board, use the BuildDir property. If the specified build folder does not exist on the target board, then the software creates a folder with the given name. If you do not assign a value to cfg.Hardware.BuildDir, the remote build process occurs in the last specified build folder. If there is no stored build folder value, the build process takes place in the home folder.

cfg.Hardware.BuildDir = "~/remoteBuildDir";

Set the GenerateExampleMain property to generate an example C++ main file and compile it. This example does not require modifications to the generated main files.

cfg.GenerateExampleMain = "GenerateCodeAndCompile";

To generate CUDA code, use the codegen function with the GPU code configuration and the input specifications for the sobelEdgeDetection.m entry-point function. The software generates code, copies it to the board, and builds the application.

inputArgs = {coder.Constant(camName),coder.Constant(camResolution)};
codegen("-config ",cfg,"-args",inputArgs,"sobelEdgeDetection","-report");

### Checking for CUDA availability on the target...
### Checking for 'nvcc' in the target system path...
Code generation successful: View report

Run Sobel Edge Detection Application on Target Board

Run the application on the target device by using the runApplication function.

pid = runApplication(hwobj,"sobelEdgeDetection");

### Launching the executable on the target...
Executable launched successfully with process ID 28340.
Displaying the simple runtime log for the executable...

Note: For the complete log, run the following command in the MATLAB command window:
system(hwobj,'cat /home/ubuntu/remoteBuildDir/MATLAB_ws/R2023b/home/user/Documents/MATLAB/ExampleManager/user.Bdoc23b.j2336540/nvidia-ex10094443/sobelEdgeDetection.log')

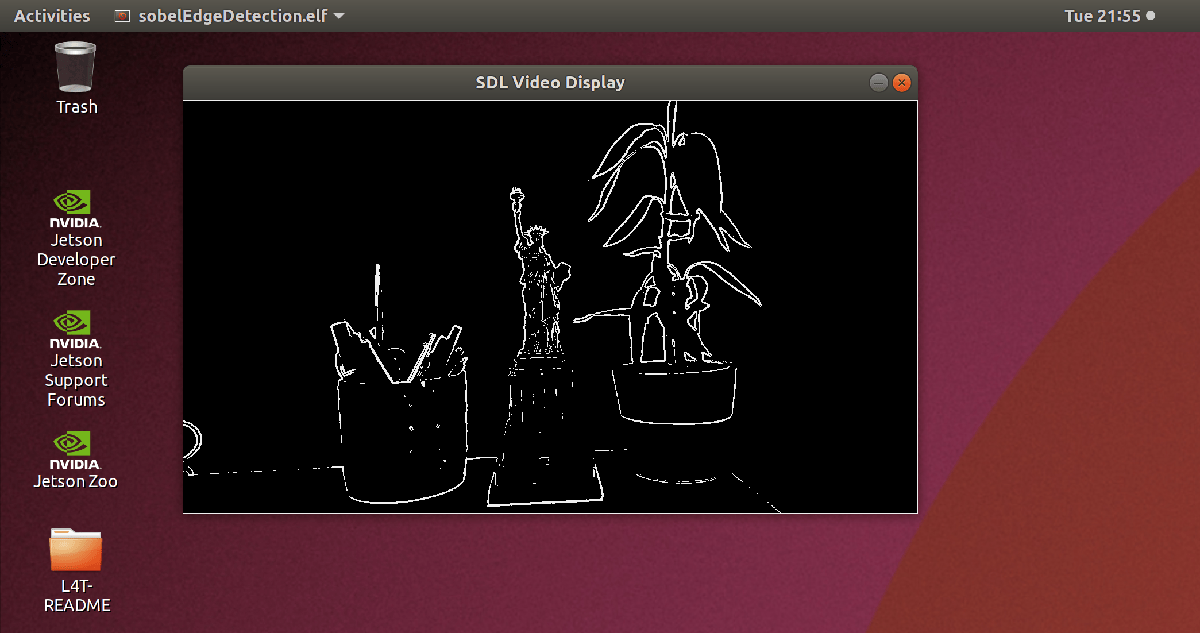

A window opens on the target hardware and shows the Sobel edge detection output of the live camera feed.

Stop the Application

To stop the sobelEdgeDetection application on the board, use the killApplication function.

killApplication(hwobj,"sobelEdgeDetection");
