Binary Linear Encoder

R2026b

Create linear block code from binary vector data

•

Binary Linear Encoder block

To add a block to a model, double-click the canvas and start typing the block name. Then, select the block from the list.

Libraries:
Communications Toolbox / Error Detection and Correction / Block

Description

The Binary Linear Encoder block creates a binary linear block code by using a generator matrix that you specify. For more information, see Linear Block Coding.

Examples

Create Binary Linear Code in Binary Format Using Simulink

This example shows how to model a simple encoder and decoder using appropriate vector lengths for the code and message.

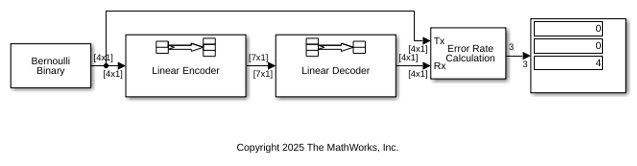

The cm_binary_linear model includes these blocks:

• Bernoulli Binary Generator block with Samples per frame set to 4 to match the binary linear encoder message length

• Binary Linear Encoder block with default parameter values

• Binary Linear Decoder block with default parameter values

• Error Rate Calculation block with Output data set to Port

• Display block connected to the output port of the Error Rate Calculation block

To display the vector length of signals in the model, go to Debug > Diagnostics > Information Overlays > Signals and select Signal Dimensions. The connector lines show the signal attributes. To compile the model, press Ctrl+D. Run the model to display the error rate statistics.

Ports

Input

In — Message to encode

column vector

Message to encode, specified as a column vector input signal containing K elements. K must equal the number of rows in the generator matrix specified by the Generator matrix (binary K-by-N matrix) parameter. This port is unnamed on the block mask.

Data Types: single | double | int8 | int16 | int32 | uint8 | uint16 | uint32 | Boolean

Output

Out — Encoded message

binary column vector

Encoded message, returned as a binary column vector containing N elements and having the same data type as the input port, In. N equals the number of columns in the generator matrix specified by the Generator matrix (binary K-by-N matrix) parameter. This port is unnamed on the block mask.

Parameters

To edit block parameters interactively, use the Property Inspector. From the Simulink^® Toolstrip, on the Simulation tab, in the Prepare gallery, select Property Inspector.

Generator matrix (binary K-by-N matrix) — Generator matrix

[[1 1 0; 0 1 1; 1 1 1; 1 0 1] eye(4)] (default)

Generator matrix for the code, specified as a K-by-N matrix, where K is the message length and N is the codeword length. For more information, see Linear Block Coding.

Block Characteristics

Data Types	Boolean | double | fixed point | integer | single
Multidimensional Signals	no
Variable-Size Signals	no

Programmatic Use: Add Block

To add the block programmatically, use the add_block function with one of these library block paths as the source.

"commblkcod2/Binary Linear Encoder"

Example: add_block("commblkcod2/Binary Linear Encoder","myModel/myBlock",MakeNameUnique="on")

More About

Linear Block Coding

The process of encoding a message into an [N,K] linear block code is determined by a K-by-N generator matrix G.

Specifically, a 1-by-K message vector v is encoded into the 1-by-N codeword vector vG. If G has the form [I_k, P] or [P, I_k], where P is some K-by-(N–K) matrix and I_k is the K-by-K identity matrix, G is said to be in standard form.

This block expects the Generator matrix (binary K-by-N matrix) mask parameter to be in standard form, as defined in [1].

References

[1] Clark, George C., and J. Bibb Cain. Error-Correction Coding for Digital Communications. Applications of Communications Theory. New York: Plenum Press, 1981.

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.

Version History

Introduced before R2006a
