Create group object

Since R2023b


Create a group object to view characteristics and measurements together and export it to an ASAP2 file.


groupObj = coder.asap2.Group creates a group object. You can use the object to define list of characteristic, measurements, subgroups to the group and export it to an ASAP2 file.


expand all

Specify a name for the custom group.

Example: "CustomGroup_1"

Specify comments and description of the group.

Example: "Description of the group"

Specify the list of parameters referred in the group.

Example: ["Parameter1", "Parameter2"]

Specify the list of signals referred in the group.

Example: ["Signal1", "Signal2"]

Specifies the root of the group's hierarchy.

Example: 1

Specify the list of sub groups referred in the group.

Example: ["Subgroup1", "Subgroup2"]

Specify any additional description that needs to be populated in the group.

Example: "additional information"


collapse all

Add, update, filter, find, and remove ECU descriptions for groups in an ASAP2 file.

Open and Build Example Model

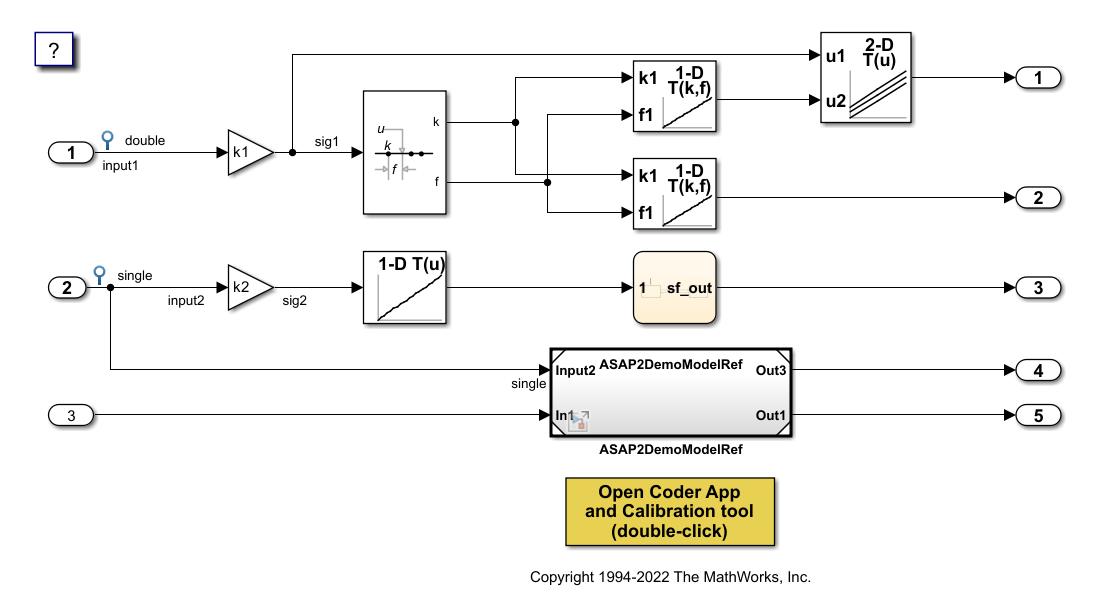

Open the example model ASAP2Demo


Build the model.

### Searching for referenced models in model 'ASAP2Demo'.
### Found 1 model references to update.
### Starting serial model reference code generation build.
### Successfully updated the model reference code generation target for: ASAP2DemoModelRef
### Starting build procedure for: ASAP2Demo
### Successful completion of build procedure for: ASAP2Demo

Build Summary

Code generation targets built:

Model              Action                        Rebuild Reason
ASAP2DemoModelRef  Code generated and compiled.  ASAP2DemoModelRef.c does not exist.

Top model targets built:

Model      Action                        Rebuild Reason
ASAP2Demo  Code generated and compiled.  Code generation information file does not exist.

2 of 2 models built (0 models already up to date)
Build duration: 0h 0m 28.667s

Create the ECU description object for the model.

descObj = coder.asap2.getEcuDescriptions("ASAP2Demo");

Get the list of available groups in the description object.

ans = 1x2 string
    "ASAP2Demo"    "ASAP2Demo_ASAP2DemoModelRef_ASAP2DemoModelRef"

Filter the groups and get a list of groups that has Root set to true.

ans =

Create and Add Custom Group

To add a new group to the ASAP2 file, create a custom group.

GroupObj_GR1 = coder.asap2.Group;
GroupObj_GR1.Name = 'CustomGroup_1';
GroupObj_GR1.LongIdentifier = 'New test group';
GroupObj_GR1.RefCharacteristic = ["ydata3", "ydata4"];
GroupObj_GR1.RefMeasurement = ["ASAP2Demo_Y.Out3", "ASAP2Demo_Y.Out3"];
GroupObj_GR1.Root = true;

Add the custom group to the ECU description object.


Get Group Properties

Get the properties of newly added group by using this command.

ans =
  Group with properties:

                 Name: 'CustomGroup_1'
       LongIdentifier: 'New test group'
    RefCharacteristic: ["ydata3"    "ydata4"]
       RefMeasurement: ["ASAP2Demo_Y.Out3"    "ASAP2Demo_Y.Out3"]
                 Root: 1
             SubGroup: [1x0 string]
           CustomData: [1x0 string]

Update Group Properties

To modify a property of the group, use set function. Update the LongIdentifier field of the group.

set(descObj,"Group","CustomGroup_1",LongIdentifier="Group 1 new long identifier")

Generate the ASAP2 file using the updated ECU description object and verify that the ASAP2 file contains the group CustomGroup_1.

Following Characteristics or Measurements with unsupported data types are not exported in ASAP2 file. "ASAP2Demo_DW.ASAP2DemoModelRef_InstanceData"

Delete Group

Remove the newly added group from the description object.


Version History

Introduced in R2023b
