Integrate External Application Code with Code Generated from PID Controller

This example shows how to generate C code from a control algorithm model and integrate that code with existing, external application code. In the complete application, which consists of three modules, the algorithm module must exchange data with other modules through global variables. In the example, you configure the generated code to interact with existing external variables, resemble the external code in appearance and organization, and conform to specific coding requirements.

Inspect External Code

Run the script prepare_ext_code. The script copies external code files into several folders.

exampleFolder = pwd;
run('prepare_ext_code.m');

Open ext_code_main.c. This application code represents an embedded system with a trivial scheduling algorithm (a while loop) and three modules that include algorithms that run in every execution cycle: ex_ext_inputs_proc, ex_ext_ctrl_alg, and ex_ext_outputs_proc.

type('ext_code_main.c')

In the shared folder, inspect ex_ext_projTypes.h. The file defines two custom data types (typedef) that the data in the modules use.

type(fullfile('shared','ex_ext_projTypes.h'))

In the io_drivers folder, inspect ex_sensor_accessors.c. This file defines functions get_fromSensor_flow and get_fromSensor_temp, which return raw data recorded by a flow sensor and a temperature sensor. For this example, the functions return trivial sinusoidal stimuli for the control algorithm.

type(fullfile('io_drivers','ex_sensor_accessors.c'))

In the ex_ext_inputs_proc folder, inspect ex_ext_inputs_proc.c. The ex_ext_inputs_proc module reads the sensor data (by calling the accessor functions), filters the data, and stores it in two global variables, PROC_INPUT_FLOW and PROC_INPUT_TEMP. These global variables are defined in the file ex_ext_proc_inputs.c and declared in ex_ext_proc_inputs.h.

type(fullfile('ex_ext_inputs_proc','ex_ext_inputs_proc.c'))

The filter algorithm in this module and the algorithms in the other two modules require state data, which must persist between execution cycles of the application. Each module stores relevant state data as global variables. For example, in the ex_ext_inputs_proc module, ex_ext_inputs_proc.c defines these variables:

  • flowFilterIn_state_data

  • tempFilterIn_state_data

  • flowFilterIn_tmp_data

  • tempFilterIn_tmp_data

The empty ex_ext_ctrl_alg folder is a placeholder for the generated code. The ex_ext_ctrl_alg module must perform PID control on the filtered flow and temperature measurements. Later, you examine the requirements for this code, which are based on the code in the other modules.

In the ex_ext_outputs_proc folder, inspect ex_ext_outputs_proc.c. This module reads the PID output signals from global variables named CONTR_SIG_FLOW and CONTR_SIG_TEMP. The ex_ext_ctrl_alg module (the generated code) must define these variables. The ex_ext_outputs_proc module filters these signals and passes the filtered values to functions that represent device drivers for actuators (for example, a valve and a heater filament).

type(fullfile('ex_ext_outputs_proc','ex_ext_outputs_proc.c'))

The actuator functions are defined in the io_drivers folder in the file ex_actuator_accessors.c.

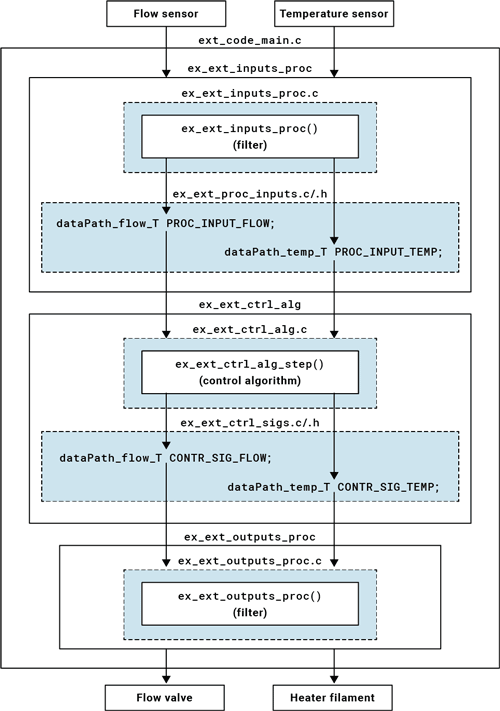

The figure shows the intended flow of data through the system. The figure also shows the code files that define and declare the data (global variables) that cross the module boundaries.

Inspect Simulink Model and Determine Requirements for Generated Code

Open the example model ex_ext_ctrl_alg.

open('ex_ext_ctrl_alg')

The blocks in the model implement the required PID controller algorithm. The model uses default code generation settings for an ERT-based system target file (ert.tlc).

To complete the application, you must generate code that performs the function of the ex_ext_ctrl_alg module. The code generated from the model must:

  • Use the custom data types dataPath_flow_T and dataPath_temp_T declared in the external file ex_ext_projTypes.h.

  • Read filtered sensor data from global variables PROC_INPUT_FLOW and PROC_INPUT_TEMP. The generated code must not define these variables because the module ex_ext_inputs_proc defines them, declaring them in ex_ext_proc_inputs.h.

  • Write PID control signals to global variables named CONTR_SIG_FLOW and CONTR_SIG_TEMP. The generated code must define these variables and declare them in file ex_ext_ctrl_sigs.h. Then, the ex_ext_outputs_proc module can read the raw control signals from them.

  • Conform to variable naming standards that govern the external application. For example, the generated code must store state data in global variables with names that end in _data. In addition, for this example, the names of local function variables must end in _local.

  • Conform to standards that govern the organization of the code in each of the external files. For example, each file contains sections, delimited by comments, which aggregate similar code constructs such as type definitions, variable declarations, and function definitions.

So that you and others can interact with the control algorithm during execution, you configure the generated code to define and declare const global variables named PARAM_setpoint_flow and PARAM_setpoint_temp, which represent the PID controller setpoints. The definitions must be in a file named ex_ext_ctrl_params.c and the declarations must be in a file named ex_ext_ctrl_params.h.

Configure Model to Use Custom Data Types

Set your current folder to the shared folder.

Use the function Simulink.importExternalCTypes to generate Simulink.AliasType objects that represent the custom data types dataPath_flow_T and dataPath_temp_T.

cd('shared');
Simulink.importExternalCTypes('ex_ext_projTypes.h');

The objects appear in the base workspace.

1. Open the model ex_ext_ctrl_alg model.

2. Open the Embedded Coder app.

3. Open the Model Data Editor by using the tab near the bottom the app window.

4. In the Model Data Editor, for the Inport block that represents PROC_INPUT_FLOW, set Data Type to dataPath_flow_T. To add the custom data types to the Data Type list, click Refresh data types.

5. For the Inport block that represents PROC_INPUT_TEMP, set Data Type to dataPath_temp_T.

6. Select the Signals tab.

7. Configure the data type for the Constant blocks. For each Constant block, in the model, select the block output signal. Then, in the Model Data Editor, set Data Type to Inherit: Inherit via back propagation. With this setting, the Constant blocks inherit the output data type of the block immediately downstream. In this case, the downstream block is a Sum block.

Alternatively, to configure the data types programmatically or at the command prompt, use these commands.

set_param('ex_ext_ctrl_alg/In1','OutDataTypeStr','dataPath_flow_T')
set_param('ex_ext_ctrl_alg/In2','OutDataTypeStr','dataPath_temp_T')
set_param('ex_ext_ctrl_alg/Flow Setpt','OutDataTypeStr',...
    'Inherit: Inherit via back propagation')
set_param('ex_ext_ctrl_alg/Temp Setpt','OutDataTypeStr',...
    'Inherit: Inherit via back propagation')

Update the block diagram. The diagram shows that, due to data type inheritance and propagation, signals in the model use a custom data type.

Configure Code Interface for Inports and Outports

Configure the model to generate code that accesses and defines global variables for model inports and outports.

1. In the Embedded Coder app, on the C Code tab, select Code Interface > Individual Element Code Mappings.

2. In the Code Mappings editor, click the Data Defaults tab.

3. Expand Inports and Outports.

4. For Inports, set Storage Class to ImportFromFile. Click the pencil icon and set the HeaderFile property to ex_ext_proc_inputs.h. With the storage class ImportFromFile, each inport appears in the generated code as a global variable. Instead of defining the variable, the generated code includes (#include) the variable declaration from header file ex_ext_proc_inputs.h.

6. For Outports, set Storage Class to ExportToFile. Click the pencil icon and set the HeaderFile property to ex_ext_ctrl_sigs.h and the DefinitionFile property to ex_ext_ctrl_sigs.c. With the storage class ExportToFile, the generated code defines the global variable.

7. On the Inports tab, for each inport, set Storage Class to Model default: ImportFromfile.

8. On the Outports tab, for each outport, set Storage Class to Model default: ExportToFile.

9. Save the model. Alternatively, to configure interfaces for the inports and outports programmatically or at the command prompt, use these commands.

cm = coder.mapping.api.get('ex_ext_ctrl_alg');
setDataDefault(cm,'Inports','StorageClass','ImportFromFile','HeaderFile', ...
    'ex_ext_proc_inputs.h');
setInport(cm,'In1','StorageClass','Model default');
setInport(cm,'In2','StorageClass','Model default');
setDataDefault(cm,'Outports','StorageClass','ExportToFile','HeaderFile', ...
    'ex_ext_ctrl_sigs.h','DefinitionFile','ex_ext_ctrl_sigs.c');
setOutport(cm,'Out1','StorageClass','Model default');
setOutport(cm,'Out2','StorageClass','Model default');

Configure Code Interface for Constant Parameters

To apply a storage class to the parameters represented by Constant blocks Flow Setpt and Temp Setpt, use the Model Explorer to create Simulink.Parameter objects to represent the data. Create two model workspace parameters.

1. Open the Model Explorer.

2. In the Model Hierarchy pane, select Model Workspace.

3. Create two parameter data objects. Select Add > Simulink Parameter. Name the parameter objects PARAM_setpoint_flow and PARAM_setpoint_temp. Set the value of PARAM_setpoint_flow to 3. Set the value of PARAM_setpoint_temp to 2.

4. To configure the storage class for the model parameters, click Configure.

5. In the Embedded Coder app, in the Code Mappings editor, click the Data Defaults tab.

6. Expand Parameters.

7. For Model Parameters, set Storage class to Const. Click the pencil icon and set the HeaderFile property to ex_ext_ctrl_params.h and the DefinitionFile property to ex_ext_ctrl_params.c.

8. On the Parameters tab, for each parameter, set Storage Class to Model default: Const.

9. In the model, for Constant block Flow Setpt, set block parameter Constant value to PARAM_setpoint_flow. For Constant block Temp Setpt, set Constant value to PARAM_setpoint_temp.

10. For the parameters to be tunable, set model configuration parameter Default parameter behavior to Tunable.

11. Save the model.

Alternatively, to configure the parameter interfaces programmatically or at the command prompt, use these commands.

setDataDefault(cm,'ModelParameters','StorageClass','Const','HeaderFile', ...
    'ex_ext_ctrl_params.h','DefinitionFile','ex_ext_ctrl_params.c');
setModelParameter(cm,'PARAM_setpoint_flow','StorageClass','Model default');
setModelParameter(cm,'PARAM_setpoint_temp','StorageClass','Model default');
set_param('ex_ext_ctrl_alg','DefaultParameterBehavior','Tunable');

Configure Code for States

In the external code, internal data that does not participate in the module interfaces, such as state data and local variables in functions, conform to naming schemes. In the model, configure internal data that appears in the generated code to align with the external code naming schemes.

1. In the model Configuration Parameters dialog box, open the Code Generation > Identifiers pane.

2. Set Global variables to naming rule $R$N_data$M. This setting controls the names of global variables, such as those that represent state data. The naming rule $R$N_data_$M most closely approximates the scheme that the state variables in the external code use. In the naming rule:

  • $R represents the name of the model, ex_ext_ctrl_alg.

  • $N represents the name of the model element to which the naming rule applies, such as a signal, block state, or standard data structure.

  • $M represents name-mangling text that the code generator inserts to avoid name clashes. For most naming rules, this token is required.

3. Set Local temporary variables and Local block output variables to $N_local$M.

Alternatively, to set the configuration parameters programmatically or at the command prompt, use these commands.

set_param('ex_ext_ctrl_alg','CustomSymbolStrGlobalVar','$R$N_data$M')
set_param('ex_ext_ctrl_alg','CustomSymbolStrTmpVar','$N_local$M')
set_param('ex_ext_ctrl_alg','CustomSymbolStrBlkIO','$N_local$M')

Configure the state data in the model to appear in the generated code as separate global variables instead of fields of the standard DWork structure.

1. In the Code Mappings editor, click the Data Defaults tab.

2. Expand Signals and select the Signals, states, and internal data row.

3. Set the storage class to ExportedGlobal.

4. On the Signals/States tab, for each state, set the storage class to Model default: Exported Global.

5. Save the model.

Alternatively, to configure the state data for code generation programmatically or at the command prompt, use these commands:

setDataDefault(cm,'InternalData','StorageClass','ExportedGlobal');
blockHandles = find(cm, 'States');
setState(cm,blockHandles,'StorageClass','Model default');

Configure Organization of Code in Generated Files

By default, when you generate code with system target file ert.tlc, the code generator uses built-in code generation template (CGT) file ert_code_template.cgt. The template governs the organization and appearance of code in each generated file.

For this example, use the example template file ex_my_code_template.cgt instead. The example template file conforms more closely to the organization of the files for this example. For example, the template organizes similar code constructs into named sections (delimited by comments) and, at the top of the template, specifies minimal information about each generated file.

cd(exampleFolder)
type('ex_my_code_template.cgt')

1. Copy ex_my_code_template.cgt to the ex_ext_ctrl_alg folder.

copyfile("ex_my_code_template.cgt","ex_ext_ctrl_alg");

2. In the model Configuration Parameters dialog box, open the Code Generation > Templates pane.

3. Under Code templates and Data templates, set parameters Sourc file template and Header file template to|ex_my_code_template.cgt|.

Alternatively, to set the parameters programmatically or at the command prompt, use these commands.

set_param('ex_ext_ctrl_alg','ERTSrcFileBannerTemplate','ex_my_code_template.cgt')
set_param('ex_ext_ctrl_alg','ERTHdrFileBannerTemplate','ex_my_code_template.cgt')
set_param('ex_ext_ctrl_alg','ERTDataSrcFileTemplate','ex_my_code_template.cgt')
set_param('ex_ext_ctrl_alg','ERTDataHdrFileTemplate','ex_my_code_template.cgt')

Generate and Inspect Code

Because the external code defines a main function, select model configuration parameter Generate code only and clear parameter Generate an example main program.

set_param('ex_ext_ctrl_alg','GenCodeOnly','on')
set_param('ex_ext_ctrl_alg','GenerateSampleERTMain','off')

Generate code from the model.

slbuild('ex_ext_ctrl_alg')

In the Code view or code generation report, inspect the generated files to confirm that the code meets the requirements.

The file ex_ext_ctrl_sigs.c defines the control output signals CONTR_SIG_FLOW and CONTR_SIG_TEMP.

dataPath_flow_T CONTR_SIG_FLOW;
dataPath_temp_T CONTR_SIG_TEMP;

The setpoint parameters appear in ex_ext_ctrl_params.c.

const dataPath_flow_T PARAM_setpoint_flow = 3.0;
const dataPath_temp_T PARAM_setpoint_temp = 2.0;

The file ex_ext_ctrl_alg.c defines global variables to store state data. The variables follow the specified naming rule.

dataPath_temp_T ex_ext__Integrator_DSTATE_datag;
dataPath_flow_T ex_ext_c_Integrator_DSTATE_data;
dataPath_temp_T ex_ext_ctrl_Filter_DSTATE_datad;
dataPath_flow_T ex_ext_ctrl__Filter_DSTATE_data;

In the same file, the model execution function, ex_ext_ctrl_alg_step, creates local function variables to store temporary calculations. The variables follow the specified naming scheme.

dataPath_flow_T FilterCoefficient_local;
dataPath_flow_T IntegralGain_local;
dataPath_temp_T Diff1_local;
dataPath_temp_T FilterCoefficient_locali;

Some of the global and local variable names contain extra mangling characters that prevent name clashes. The extra characters correspond to the $M token in the specified naming rules.

The generated code files are in the generated folders ex_ext_ctrl_alg_ert_rtw and slprj. You must configure file management systems and build tools to use these folders and files.
