# Forecast a Regression Model with ARIMA Errors

This example shows how to forecast a regression model with ARIMA(3,1,2) errors using `forecast`

and `simulate`

.

Simulate two Gaussian predictor series with mean 2 and variance 1.

```
rng(1);
T = 50; % Sample size
X = randn(T,2) + 2;
```

Specify the regression model with ARIMA(3,1,2) errors:

$${y}_{t}=3+{X}_{t}\left[\begin{array}{c}-2\\ 1.5\end{array}\right]+{u}_{t}$$

$$(1-0.9L+0.5{L}^{2}-0.2{L}^{3})(1-L){u}_{t}=(1+0.75L-0.15{L}^{2}){\epsilon}_{t},$$

where $${\epsilon}_{t}$$ is Gaussian with mean 0 and variance 2.

Mdl = regARIMA('Intercept',3,'Beta',[-2;1.5],'AR',{0.9,-0.5,0.2},... 'D',1','MA',{0.75,-0.15},'Variance',2);

`Mdl`

is a fully specified regression model with ARIMA(3,1,2) errors. Methods such as `simulate`

and `forecast`

require a fully specified model.

Simulate 30 observations from `Mdl`

.

`[y,e,u] = simulate(Mdl,30,'X',X(1:30,:));`

`y`

contains the simulated responses. `e`

and `u`

contain the corresponding simulated innovations and unconditional disturbances, respectively. It is best practice to provide `forecast`

with presample innovations and unconditional disturbances if they are available.

Compute MMSE forecasts for `Mdl`

20 periods into the future using `forecast`

. Compute the corresponding 95% forecast intervals.

[yF,yMSE] = forecast(Mdl,20,'X0',X(1:30,:),'U0',u,... 'E0',e,'XF',X(31:T,:)); yFCI = [yF,yF] + 1.96*[-sqrt(yMSE),sqrt(yMSE)];

`yFCI`

is a 20-by-2 matrix containing the 20 forecast intervals. The first column of `yFCI`

contains the lower bounds for the forecast intervals, and the second column contains the upper bounds.

Forecast `Mdl`

20 periods into the future using Monte Carlo simulation. Compute the corresponding 95% forecast intervals

yMC = simulate(Mdl,20,'numPaths',1000,'X',X(31:T,:),'U0',u,'E0',e); yMCBar = mean(yMC,2); yMCCI = prctile(yMC,[2.5,97.5],2);

`yMCBar`

is a 20-by-1 vector that contains the Monte Carlo forecasts over the forecast horizon. Like `yFCI`

, `yMMCI`

is a 20-by-2 matrix containing the forecast intervals, but based on the Monte Carlo simulation.

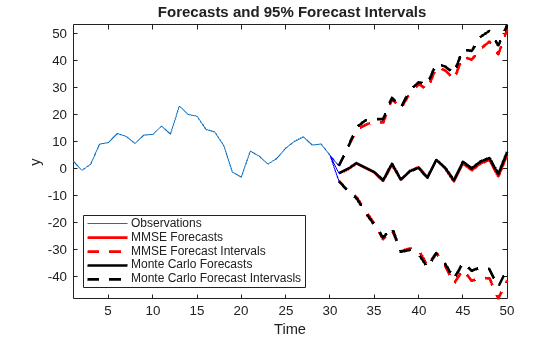

Plot the two forecast sets and their corresponding 95% forecast intervals.

figure h1 = plot(1:30,y); title('{\bf Forecasts and 95% Forecast Intervals}') hold on h2 = plot(31:50,yF,'r','LineWidth',2); h3 = plot(31:50,yFCI,'r--','LineWidth',2); h4 = plot(31:50,yMCBar,'k','LineWidth',2); h5 = plot(31:50,yMCCI,'k--','LineWidth',2); plot(30:31,[repmat(y(end),3,1),[yF(1),yFCI(1,:)]'],'b') legend([h1,h2,h3(1),h4,h5(1)],'Observations','MMSE Forecasts',... 'MMSE Forecast Intervals','Monte Carlo Forecasts',... 'Monte Carlo Forecast Intervasls','Location','SouthWest') xlabel('Time') ylabel('y') axis tight hold off

The MMSE and Monte Carlo forecasts are virtually equivalent. There are minor discrepancies between the forecast intervals.

The width of the forecast intervals increases as time increases. This is a consequence of forecasting with integrated errors.
