Monte Carlo Simulation of Markov-Switching Dynamic Regression Model Response Variables

This example shows how to characterize the distribution of a multivariate response series, modeled by a Markov-switching dynamic regression model, by summarizing the draws of a Monte Carlo simulation.

Consider the response processes ${\mathit{y}}_{1\mathit{t}}$ and ${\mathit{y}}_{2\mathit{t}}$ that switch between three states, governed by the latent process ${\mathit{s}}_{\mathit{t}}$ with this observed transition matrix:

$$P=\left[\begin{array}{ccc}10& 1& 1\\ 1& 10& 1\\ 1& 1& 10\end{array}\right].$$

Suppose that $$y_t={\left[\begin{array}{cc}{y}_{1t}& y_{2t}\end{array}\right]}^{\prime }$$ is a VARX model in each state:

$$y_t=\{\begin{array}{ll}\left[\begin{array}{c}1\\ -1\end{array}\right]+{\epsilon }_{1t}& ;s_t=1\\ \left[\begin{array}{c}2\\ -2\end{array}\right]+\left[\begin{array}{cc}0.5& 0.1\\ 0.5& 0.5\end{array}\right]y_{t-1}+{\epsilon }_{2t}& ;s_t=2\\ \left[\begin{array}{c}3\\ -3\end{array}\right]+\left[\begin{array}{cc}0.25& 0\\ 0& 0\end{array}\right]y_{t-1}+\left[\begin{array}{cc}0& 0\\ 0.25& 0\end{array}\right]y_{t-2}+{\epsilon }_{3t}& ;s_t=3,\end{array}$$

where, for j = 1,2,3, ${\epsilon }_{\mathrm{jt}}$ is Gaussian with mean 0 and covariance matrix

$${\Sigma }_j=j\left[\begin{array}{cc}1& -0.1\\ -0.1& 1\end{array}\right].$$

Create Fully Specified Model

Create the Markov-switching dynamic regression model that describes ${\mathit{y}}_{\mathit{t}}$ and ${\mathit{s}}_{\mathit{t}}$.

% Switching mechanism
P = [10 1 1; 1 10 1; 1 1 10];
mc = dtmc(P);

% VAR submodels
C1 = [1;-1];
C2 = [2;-2];
C3 = [3;-3];
AR1 = {};
AR2 = {[0.5 0.1; 0.5 0.5]};
AR3 = {[0.25 0; 0 0] [0 0; 0.25 0]};
Beta1 = [1; -1];
Beta2 = [2 2;-2 -2];
Beta3 = [3 3 3;-3 -3 -3];
Sigma1 = [1 -0.1; -0.1 1];
Sigma2 = [2 -0.2; -0.2 2];
Sigma3 = [3 -0.3; -0.3 3];
mdl1 = varm(Constant=C1,AR=AR1,Beta=Beta1,Covariance=Sigma1);
mdl2 = varm(Constant=C2,AR=AR2,Beta=Beta2,Covariance=Sigma2);
mdl3 = varm(Constant=C3,AR=AR3,Beta=Beta3,Covariance=Sigma3);

Mdl = msVAR(mc,[mdl1; mdl2; mdl3]);

Mdl is a fully specified msVAR object.

Simulate Multiple Paths

Simulate 1000 separate, independent paths of responses from the model. Specify a 50-period simulation horizon. Start all simulations in the first state (that is, the state of the system at time 0 is state 1), by specifying a distribution so that state 1 has all mass.

rng("default") % For reproducibility
s0 = [1 0 0];
Y = simulate(Mdl,50,NumPaths=1000,S0=s0);

Y is a 50-by-2-by-1000 array of simulated responses. Each page is a simulated path from Mdl.

Summarize Monte Carlo Draws

The processes are stationary. Therefore, for each path, obtain the typical value of each variable by computing the sample mean.

mus = mean(Y,1);

mus is a 1-by-2-by-1000 array. Each page is the sample mean vector of the simulated path.

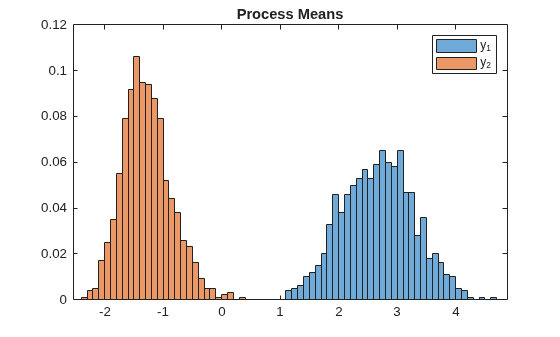

Plot the Monte Carlo probability distribution of the response means.

figure
histogram(mus(1,1,:),Normalization="probability",BinWidth=0.1);
hold on
histogram(mus(1,2,:),Normalization="probability",BinWidth=0.1);
legend("y_1","y_2")
title("Process Means")
hold off

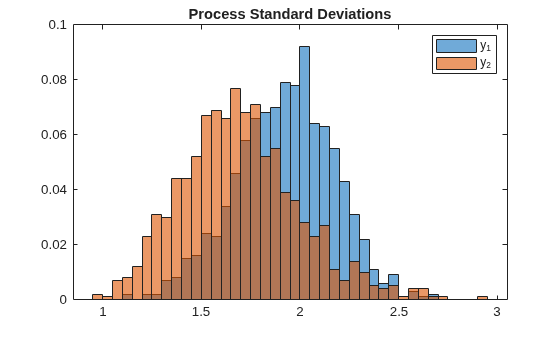

For each path, obtain the variability of each variable by computing the sample standard deviation. Plot the Monte Carlo probability distribution of the response standard deviations.

sigmas = std(Y,0,1);

figure
histogram(sigmas(1,1,:),Normalization="probability",BinWidth=0.05)
hold on
histogram(sigmas(1,2,:),Normalization="probability",BinWidth=0.05)
legend("y_1","y_2")
title("Process Standard Deviations")
hold off
