smf

S-shaped membership function

Syntax

y = smf(x,params)

Description

This function computes fuzzy membership values using a spline-based S-shaped membership function. You can also compute this membership function using a fismf object. For more information, see fismf Object.

This membership function is related to the zmf and pimf membership functions.

y = smf(x,params) returns fuzzy membership values computed using the spline-based S-shaped membership function given by:

$$f(x;a,b)=\left\{\begin{array}{ll}0,\hfill & x\le a\hfill \\ 2{\left(\frac{x-a}{b-a}\right)}^2,\hfill & a\le x\le \frac{a+b}{2}\hfill \\ \text{1}-\text{2}{\left(\frac{x-b}{b-a}\right)}^{\text{2}},\hfill & \frac{a+b}{2}\le x\le b\hfill \\ 1,\hfill & x\ge b\hfill \end{array}\right\}$$

To define the membership function parameters, specify params as the vector [a b].

Membership values are computed for each input value in x.

Examples

S-Shaped Membership Function

Specify input values across the universe of discourse.

x = 0:0.1:10;

Evaluate membership function for the input values.

y = smf(x,[1 8]);

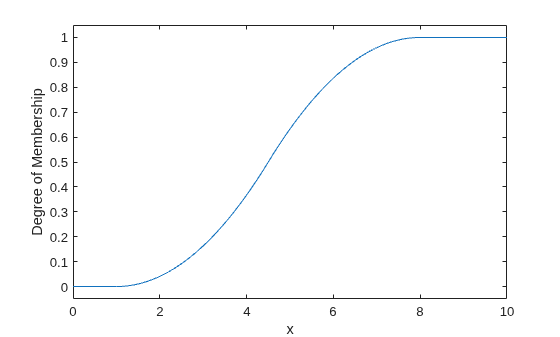

Plot the membership function.

plot(x,y)
title("smf, P = [1 8]")
xlabel("x")
ylabel("Degree of Membership")
ylim([-0.05 1.05])

Input Arguments

x — Input values

scalar | vector

Input values for which to compute membership values, specified as a scalar or vector.

params — Membership function parameters

vector of length two

Membership function parameters, specified as the vector [a b]. Parameter a defines the foot of the membership function, and b defines its shoulder.

Output Arguments

y — Membership value

scalar | vector

Membership value returned as a scalar or a vector. The dimensions of y match the dimensions of x. Each element of y is the membership value computed for the corresponding element of x.

Alternative Functionality

fismf Object

You can create and evaluate a fismf object that implements the smf membership function.

mf = fismf("smf",P);
Y = evalmf(mf,X);

Here, X, P, and Y correspond to the x, params, and y arguments of smf, respectively.

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.

Version History

Introduced before R2006a

R2018b: C and C++ code generation support

This function supports C and C++ code generation using MATLAB^® Coder™.
