# Implement Reciprocal Block with Control Signals

This example shows how to implement the control-signal based Reciprocal block and use it to generate HDL code.

### Open and Run Simulink Model

Specify the input data values as a linear sweep. You can change these values according to your requirements

```reciprocal_input = fi(1/2^10:1/2^18:1,0,18,18)'; ```

Specify the word length for fixed-point datatypes and the latency for the model. For more information on the latency calculation, see Reciprocal.

```WL_recip = 18; recip_latency = 41; ```

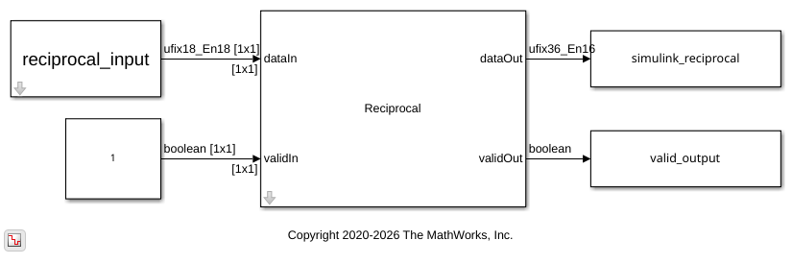

Open the `hdlcoder_reciprocal_shiftadd_control` model and specify a stop time sufficient to process all the input combinations.

```stoptime_recip = length(reciprocal_input)-1+recip_latency; open_system('hdlcoder_reciprocal_shiftadd_control') sim('hdlcoder_reciprocal_shiftadd_control') ```

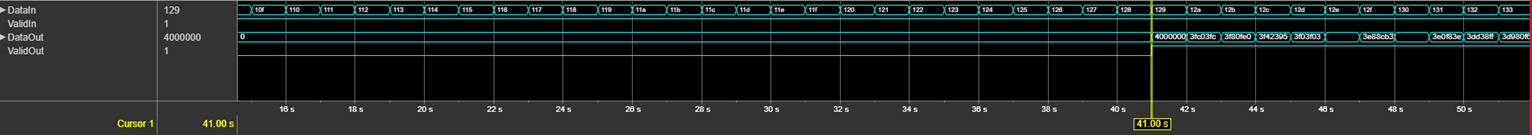

This figure shows the output waveform when you simulate the model. The `dataOut` output is valid when `validOut` is `1`.

### Validate Simulink Output By Using Reference Output

To validate the output of the Simulink model, compare this output with a reference values. Compute the reference output by using the `reciprocal` operation.

```ref_reciprocal = 1./double(reciprocal_input); ```

Use logical indexing to extract valid output.

```implementation_reciprocal = simulink_reciprocal(valid_output); ```

Plot the comparison results by using the `comparison_plot_reciprocal` function. The maximum error value is significantly smaller than the output of the model.

```comparison_plot_reciprocal(ref_reciprocal,implementation_reciprocal,9,'reciprocal linear input'); ```
```Maximum Error reciprocal linear input 1.525867e-05 Maximum PctError reciprocal linear input 1.522159e-03 ```

### Generate HDL Code for Reciprocal Implementation

Check HDL settings of the model by using the `hdlsaveparams` function.

```hdlsaveparams('hdlcoder_reciprocal_shiftadd_control') ```
```%% Set Model 'hdlcoder_reciprocal_shiftadd_control' HDL parameters hdlset_param('hdlcoder_reciprocal_shiftadd_control', 'Backannotation', 'on'); hdlset_param('hdlcoder_reciprocal_shiftadd_control', 'HDLSubsystem', 'hdlcoder_reciprocal_shiftadd_control/Reciprocal'); hdlset_param('hdlcoder_reciprocal_shiftadd_control', 'ResetType', 'Synchronous'); hdlset_param('hdlcoder_reciprocal_shiftadd_control', 'SynthesisTool', 'Xilinx Vivado'); hdlset_param('hdlcoder_reciprocal_shiftadd_control', 'SynthesisToolChipFamily', 'Virtex7'); hdlset_param('hdlcoder_reciprocal_shiftadd_control', 'SynthesisToolDeviceName', 'xc7v2000t'); hdlset_param('hdlcoder_reciprocal_shiftadd_control', 'SynthesisToolPackageName', 'fhg1761'); hdlset_param('hdlcoder_reciprocal_shiftadd_control', 'SynthesisToolSpeedValue', '-2'); hdlset_param('hdlcoder_reciprocal_shiftadd_control', 'TargetDirectory', 'hdl_prj\hdlsrc'); hdlset_param('hdlcoder_reciprocal_shiftadd_control', 'TargetFrequency', 500); hdlset_param('hdlcoder_reciprocal_shiftadd_control', 'Traceability', 'on'); % Set SubSystem HDL parameters hdlset_param('hdlcoder_reciprocal_shiftadd_control/Reciprocal', 'FlattenHierarchy', 'on'); hdlset_param('hdlcoder_reciprocal_shiftadd_control/Reciprocal/LumpLatency', 'Architecture', 'MATLAB Datapath'); % Set SubSystem HDL parameters hdlset_param('hdlcoder_reciprocal_shiftadd_control/Reciprocal/LumpLatency', 'FlattenHierarchy', 'on'); hdlset_param('hdlcoder_reciprocal_shiftadd_control/Reciprocal/Reciprocal', 'Architecture', 'ShiftAdd'); % Set Product HDL parameters hdlset_param('hdlcoder_reciprocal_shiftadd_control/Reciprocal/Reciprocal', 'LatencyStrategy', 'Max'); hdlset_param('hdlcoder_reciprocal_shiftadd_control/Reciprocal/ValidLine', 'Architecture', 'MATLAB Datapath'); % Set SubSystem HDL parameters hdlset_param('hdlcoder_reciprocal_shiftadd_control/Reciprocal/ValidLine', 'FlattenHierarchy', 'on'); ```

To generate HDL code for the Reciprocal block in the model, use the `makehdl` function.

```makehdl('hdlcoder_reciprocal_shiftadd_control/Reciprocal') close_system('hdlcoder_reciprocal_shiftadd_control') close all; ```
```### Working on the model <a href="matlab:open_system('hdlcoder_reciprocal_shiftadd_control')">hdlcoder_reciprocal_shiftadd_control</a> ### Generating HDL for <a href="matlab:open_system('hdlcoder_reciprocal_shiftadd_control/Reciprocal')">hdlcoder_reciprocal_shiftadd_control/Reciprocal</a> ### Using the config set for model <a href="matlab:configset.showParameterGroup('hdlcoder_reciprocal_shiftadd_control', { 'HDL Code Generation' } )">hdlcoder_reciprocal_shiftadd_control</a> for HDL code generation parameters. ### Running HDL checks on the model 'hdlcoder_reciprocal_shiftadd_control'. ### Begin compilation of the model 'hdlcoder_reciprocal_shiftadd_control'... ### Begin compilation of the model 'hdlcoder_reciprocal_shiftadd_control'... ### Working on the model 'hdlcoder_reciprocal_shiftadd_control'... ### Working on... <a href="matlab:configset.internal.open('hdlcoder_reciprocal_shiftadd_control', 'GenerateModel')">GenerateModel</a> ### Begin model generation 'gm_hdlcoder_reciprocal_shiftadd_control'... ### Rendering DUT with optimization related changes (IO, Area, Pipelining)... ### Model generation complete. ### Generated model saved at <a href="matlab:open_system('hdl_prj/hdlsrc/hdlcoder_reciprocal_shiftadd_control/gm_hdlcoder_reciprocal_shiftadd_control.slx')">hdl_prj/hdlsrc/hdlcoder_reciprocal_shiftadd_control/gm_hdlcoder_reciprocal_shiftadd_control.slx</a> ### Delay absorption obstacles can be diagnosed by running this script: <a href="matlab:run('hdl_prj/hdlsrc/hdlcoder_reciprocal_shiftadd_control/highlightDelayAbsorption')">hdl_prj/hdlsrc/hdlcoder_reciprocal_shiftadd_control/highlightDelayAbsorption.m</a> ### To clear highlighting, click the following MATLAB script: <a href="matlab:run('hdl_prj/hdlsrc/hdlcoder_reciprocal_shiftadd_control/clearhighlighting.m')">hdl_prj/hdlsrc/hdlcoder_reciprocal_shiftadd_control/clearhighlighting.m</a> ### Begin VHDL Code Generation for 'hdlcoder_reciprocal_shiftadd_control'. ### Working on... <a href="matlab:configset.internal.open('hdlcoder_reciprocal_shiftadd_control', 'Traceability')">Traceability</a> ### Working on hdlcoder_reciprocal_shiftadd_control/Reciprocal/Reciprocal as hdl_prj/hdlsrc/hdlcoder_reciprocal_shiftadd_control/Reciprocal_block.vhd. ### Working on hdlcoder_reciprocal_shiftadd_control/Reciprocal as hdl_prj/hdlsrc/hdlcoder_reciprocal_shiftadd_control/Reciprocal.vhd. ### Code Generation for 'hdlcoder_reciprocal_shiftadd_control' completed. ### Generating HTML files for code generation report at <a href="matlab:hdlcoder.report.openDdg('/tmp/Bdoc24a_2528353_2763154/tp0c1aecf4/hdlcoder-ex85473417/hdl_prj/hdlsrc/hdlcoder_reciprocal_shiftadd_control/html/hdlcoder_reciprocal_shiftadd_control_codegen_rpt.html')">hdlcoder_reciprocal_shiftadd_control_codegen_rpt.html</a> ### Creating HDL Code Generation Check Report file:///tmp/Bdoc24a_2528353_2763154/tp0c1aecf4/hdlcoder-ex85473417/hdl_prj/hdlsrc/hdlcoder_reciprocal_shiftadd_control/Reciprocal_report.html ### HDL check for 'hdlcoder_reciprocal_shiftadd_control' complete with 0 errors, 0 warnings, and 1 messages. ### HDL code generation complete. ```

### Reciprocal Block Synthesis Performance

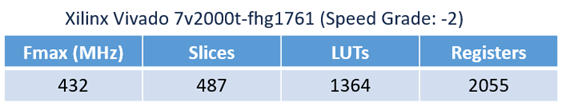

This figure shows the Reciprocal block synthesis performance on the Xilinx® Virtex® 7 and Intel® Stratix® V devices.
