Custom FPGA Board Definition
Both HDL Coder™ and HDL Verifier™ include a set of predefined FPGA boards that you can use with the FPGA-in-the-loop (FIL) workflow. You can view the lists of these supported boards in the HDL Workflow Advisor tool or in the FPGA-in-the-Loop Wizard. With the FPGA Board Manager, you can add additional boards for use with either of these workflows. To add a board, you need the relevant information from the board specification documentation.
The FPGA Board Manager is the hub for accessing the workflow to create a custom board configuration. You can also access options for:
Importing a custom board
Copying a board definition file for further modification
Verifying a new board
Tools
| FPGA Board Manager | Create and manage custom FPGA boards for FPGA-in-the-loop workflows |
| New FPGA Board Wizard | Create, configure, and add custom board for FPGA-in-the-loop workflows |
| FPGA Board Editor | Edit custom board definition for FPGA-in-the-loop workflows |
Topics
- FPGA Board Customization
Create a custom FPGA board configuration.
- Create Custom FPGA Board Definition
Run the New FPGA Board Wizard to setup a custom board.
Featured Examples

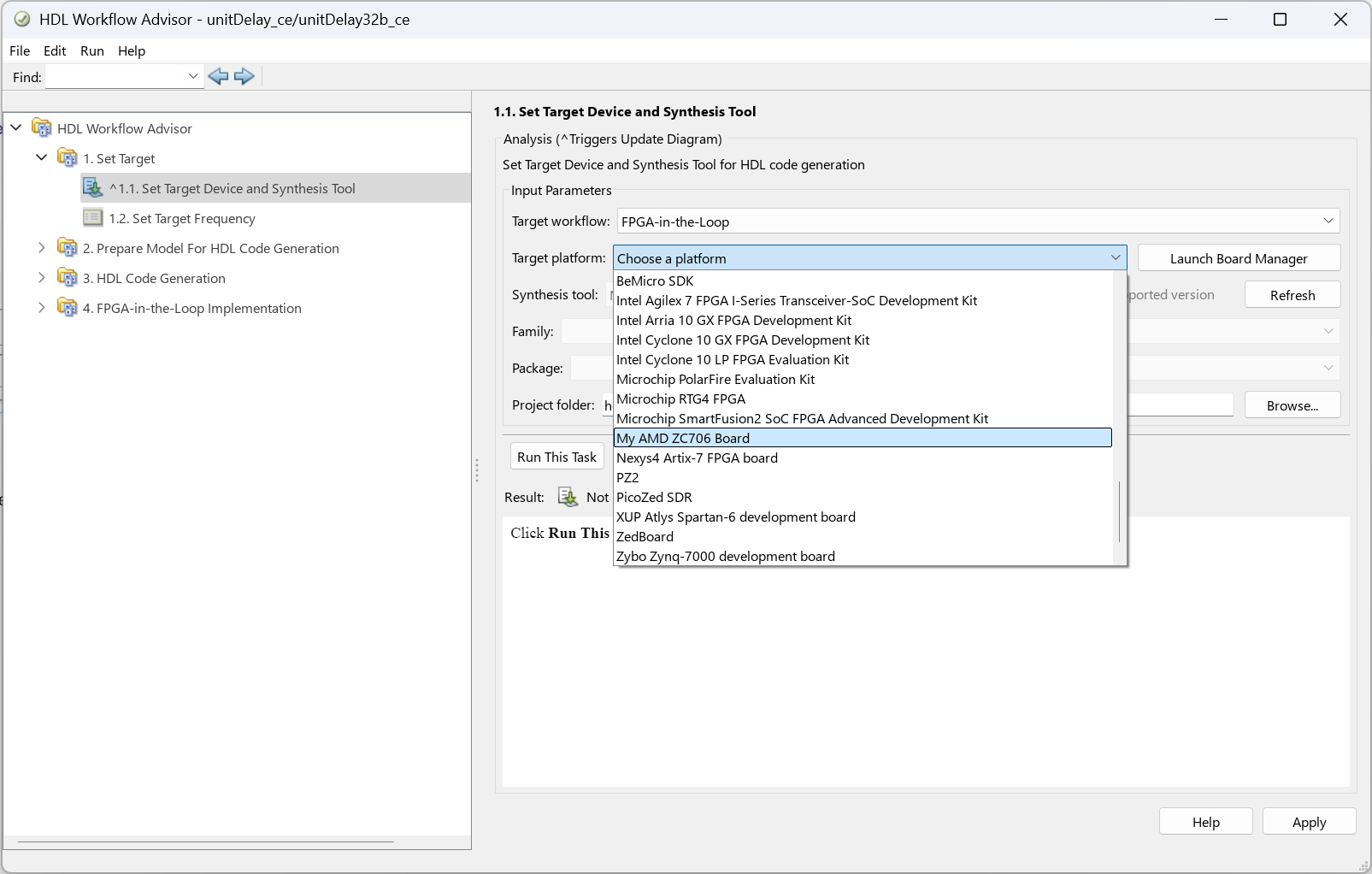

Add Custom Board Definition for FPGA-in-the-Loop Using JTAG
Support FPGA-in-the-loop (FIL) simulation on a custom FPGA board using JTAG. If HDL Verifier® does not support your FPGA board by default, create a custom board definition in the FPGA Board Manager. This example uses the AMD® Zynq™ 7000 SoC ZC706 evaluation kit with the JTAG interface.

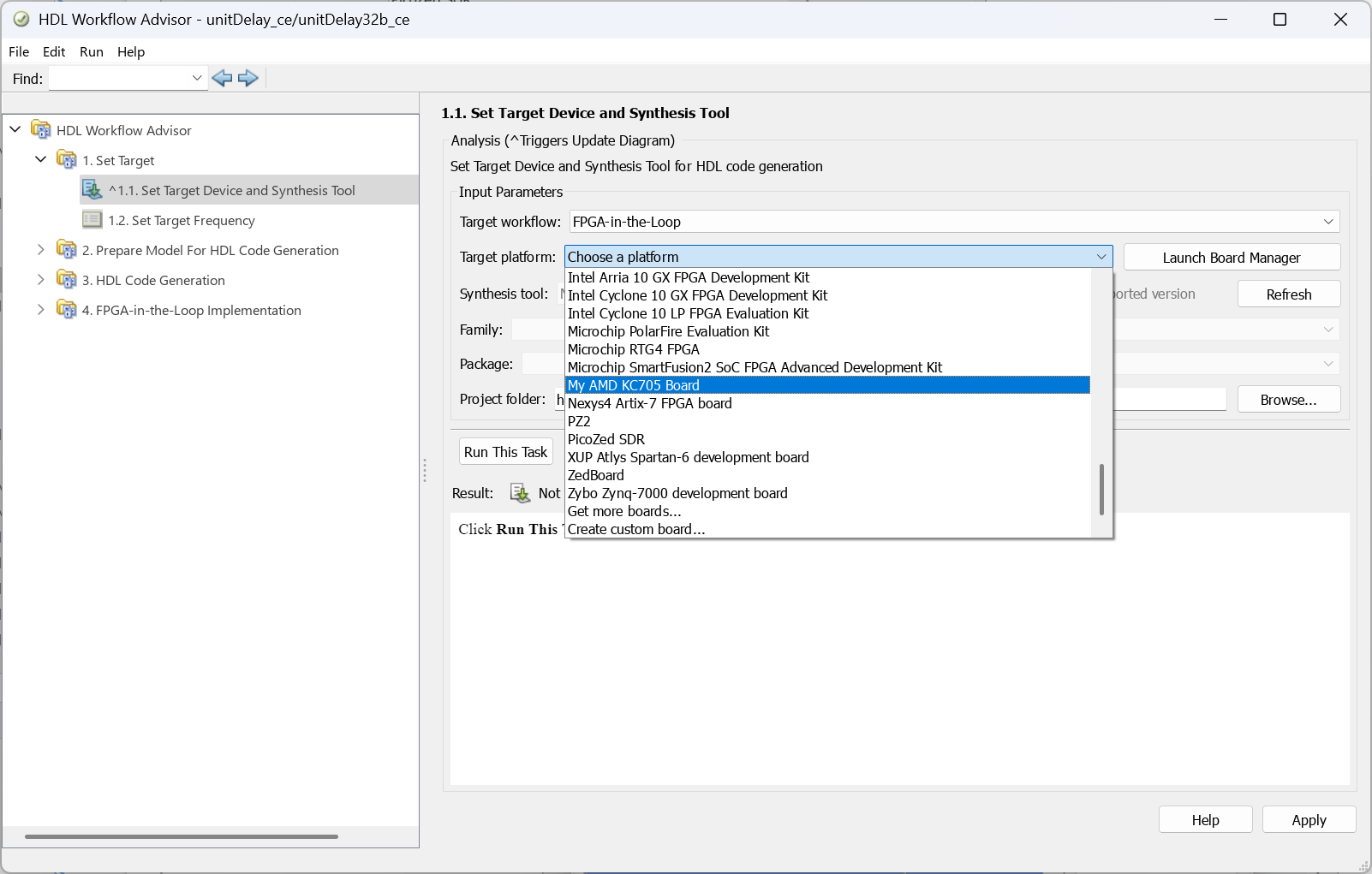

Add Custom Board Definition for FPGA-in-the-Loop Using Gigabit Ethernet
Support FPGA-in-the-loop (FIL) simulation on a custom FPGA board using Gigabit Ethernet. If HDL Verifier® does not support your FPGA board by default, create a custom board definition in the FPGA Board Manager. This example uses the AMD® Kintex™ 7 FPGA KC705 evaluation kit with the GMII Ethernet interface.
