Display High Dynamic Range Image

This example shows how to display a high dynamic range (HDR) image. To view an HDR image, you must first convert the data to a dynamic range that can be displayed correctly on a computer.

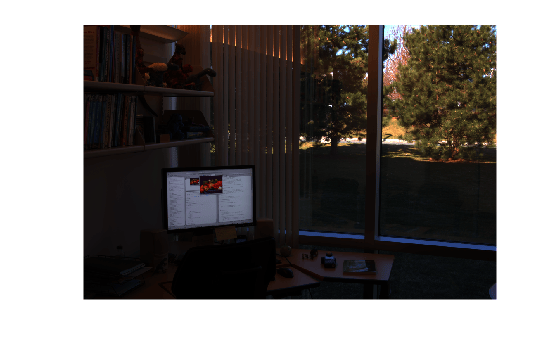

Read a high dynamic range (HDR) image, using hdrread. If you try to display the HDR image, notice that it does not display correctly.

hdr_image = hdrread('office.hdr');

Convert the HDR image to a dynamic range that can be viewed on a computer, using the tonemap function. This function converts the HDR image into an RGB image of class uint8 .

rgb = tonemap(hdr_image);
  Name             Size                  Bytes  Class     Attributes

  hdr_image      665x1000x3            7980000  single
  rgb            665x1000x3            1995000  uint8

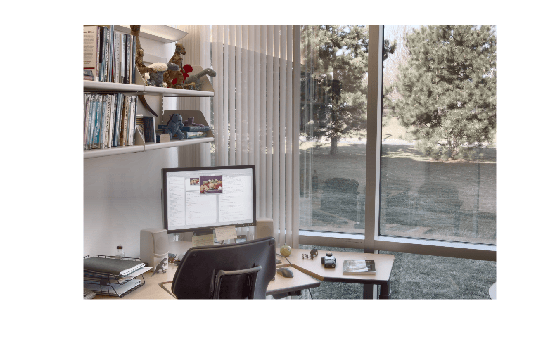

Display the RGB image.
