camposm
Set camera position for axesm
-based map using geographic coordinates
Syntax
camposm(lat,long,alt)
[x,y,z] = camposm(lat,long,alt)
Description
camposm(lat,long,alt)
sets the axes
CameraPosition
property of the current
axesm
-based map to the position specified in geographic
coordinates. The inputs lat
and long
are assumed
to be in the angle units of the current axesm
-based map.
[x,y,z] = camposm(lat,long,alt)
returns
the camera position in the projected Cartesian coordinate system.
Examples

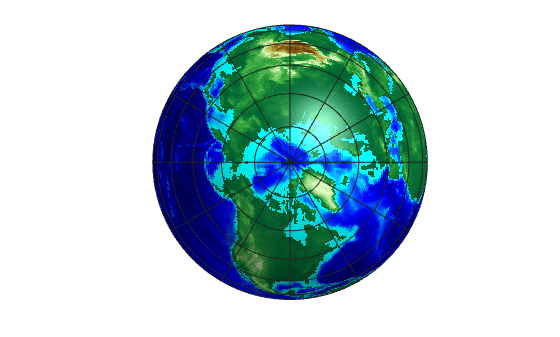

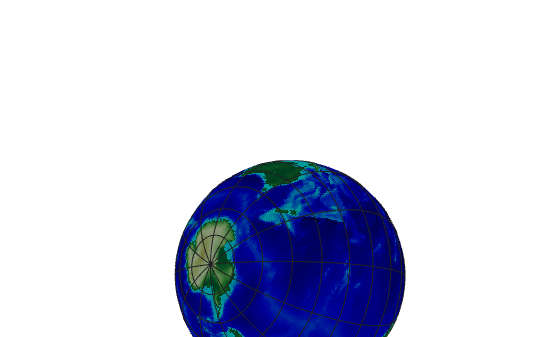

Look at northern Australia from a point south and one Earth radius above New Zealand.
axesm('globe','galt',0) gridm('glinestyle','-') load topo60c geoshow(topo60c,topo60cR,'DisplayType','texturemap') demcmap(topo60c) camlight material(0.6*[ 1 1 1]) plat = -50; plon = 160; tlat = -10; tlon = 130; camtargm(tlat,tlon,0) camposm(plat,plon,1) camupm(tlat,tlon) set(gca,'CameraViewAngle',75) land = shaperead('landareas.shp','UseGeoCoords',true); linem([land.Lat],[land.Lon]) axis off
Version History
Introduced before R2006a
