# surfacem

Project and add geolocated data grid to `axesm`-based map

## Syntax

```surfacem(lat,lon,Z) surfacem(latlim,lonlim,Z) surfacem(lat,lon,Z,alt) surfacem(...,prop1,val1,prop2,val2,...) h = surfacem(...) ```

## Description

`surfacem(lat,lon,Z)` constructs a surface to represent the data grid `Z` in the current `axesm`-based map. The surface lies flat in the horizontal plane with its `CData` property set to `Z`. The vectors or 2-D arrays `lat` and `lon` define the latitude-longitude graticule mesh on which `Z` is displayed. For a complete description of the various forms that `lat` and `lon` can take, see `surfm`.

`surfacem(latlim,lonlim,Z)` defines the graticule using the latitude and longitude limits `latlim` and `lonlim`. These limits should match the geographic extent of the data grid `Z`. The two-element vector `latlim` has the form:

`[southern_limit northern_limit]`

Likewise, `lonlim` has the form:

`[western_limit eastern_limit]`

A latitude-longitude graticule of size 50-by-100 is constructed. The surface `FaceColor` property is `'texturemap'`, except when `Z` is precisely 50-by-100, in which case it is `'flat'`.

`surfacem(lat,lon,Z,alt)` sets the `ZData` property of the surface to `'alt'`, resulting in a 3-D surface. `Lat` and `lon` must result in a graticule mesh that matches `alt` in size. `CData` is set to `Z`. `Facecolor` is `'texturemap'`, unless `Z` matches `alt` in size, in which case it is `'flat'`.

`surfacem(...,prop1,val1,prop2,val2,...)` applies additional MATLAB® graphics properties to the surface via property/value pairs. You can specify any property accepted by the `surface` function, except `XData`, `YData`, and `ZData`.

`h = surfacem(...)` returns a handle to the surface object.

Note

Unlike `meshm` and `surfm`, `surfacem` always adds a surface to the current axes, regardless of hold state.

## Examples

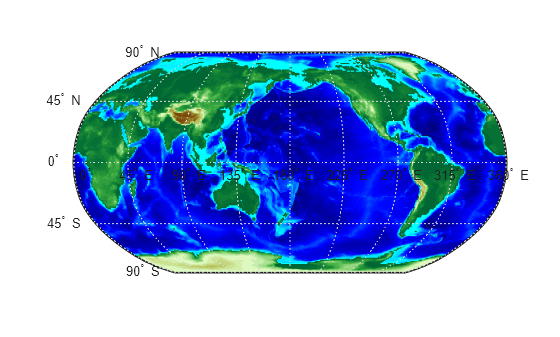

Load elevation raster data and a geographic cells reference object. Then, display the data as a surface.

```load topo60c [topo60c,topo60cR] = geocrop(topo60c,topo60cR,[-90 90],[-180,180]); [lat,lon] = geographicGrid(topo60cR); worldmap world surfacem(lat,lon,topo60c) demcmap(topo60c)```

## Version History

Introduced before R2006a
