A tiled chart layout lets you control the placement of elements in a visualization and create special effects. This topic covers four examples:
Tiled chart layouts have several features for presenting multiple elements together under a shared title. In this case, stack a colorbar on top of a plot under a shared title.
1 tiled chart layout. Then display a contour plot of the
peaks data set.
figure t = tiledlayout(1,1); nexttile contourf(peaks)

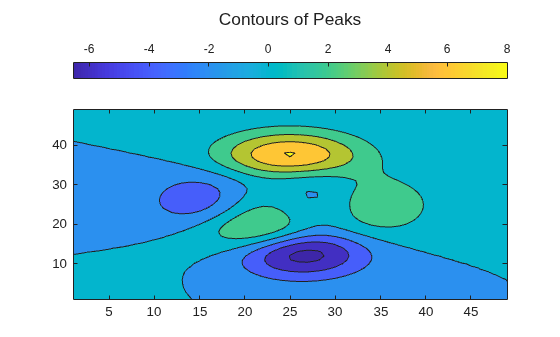

Create a colorbar, and specify the
'northoutside' location. Then add a shared title by passing the layout object,
t, to the
cb = colorbar('Location','northoutside'); title(t,'Contours of Peaks')
Tiled chart layouts can be nested. This is useful for varying the arrangement of the tiles in a layout. In this case, create two columns that each have a different number of tiles.

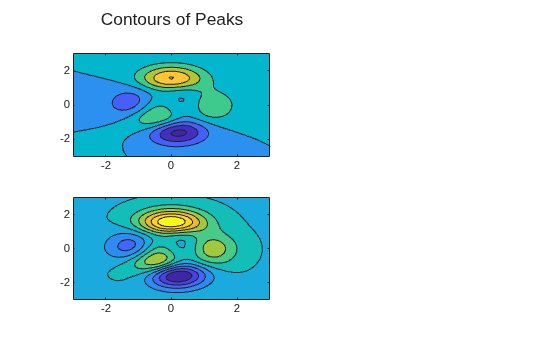

Create a 1-by-2 tiled layout called
t1. Then create two nested layouts,
t2 is in the first tile of
t3 is in the second tile. Then display two contour plots in
t2, and add a title above the plots.
figure t1 = tiledlayout(1,2,'TileSpacing','Compact'); t2 = tiledlayout(t1,'flow','TileSpacing','Compact'); t3 = tiledlayout(t1,'flow','TileSpacing','Compact'); t3.Layout.Tile = 2; % Add two contour plots to left side [X,Y,Z] = peaks; nexttile(t2); contourf(X,Y,Z) nexttile(t2) contourf(X,Y,Z,10) title(t2,"Contours of Peaks")

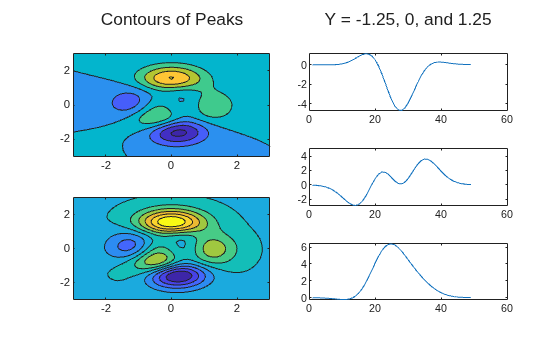

Display three line plots within
t3, and add a title.
nexttile(t3) plot(Z(15,:)) nexttile(t3) plot(Z(25,:)) nexttile(t3) plot(Z(35,:)) title(t3,"Y = -1.25, 0, and 1.25")

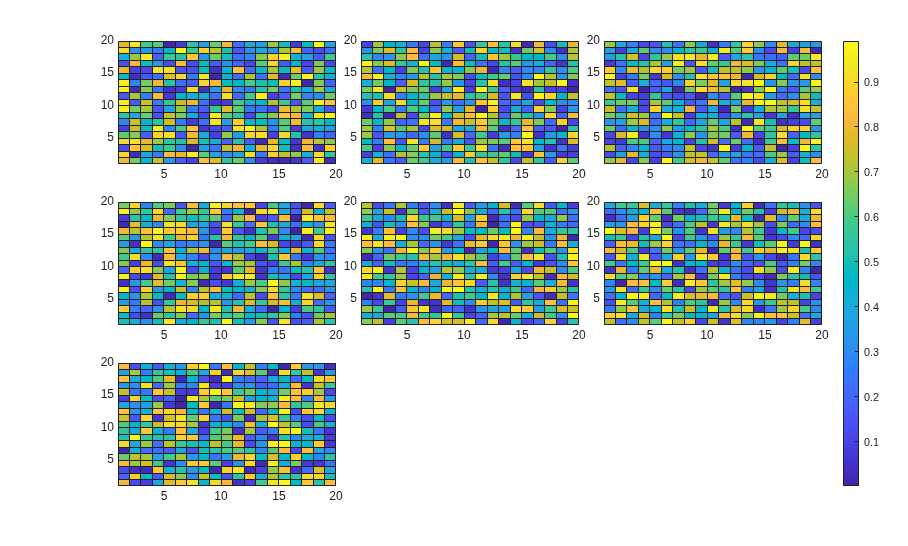

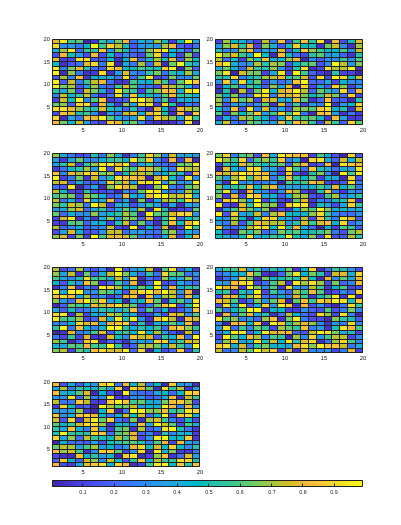

A tiled chart layout consists of a grid of tiles surrounded by four outer tiles. You can place legends, colorbars, additional axes, or even a nested layout into any of these tiles. In this case, create a main plot in the center, and use one of the outer tiles to display a set of supplemental plots.

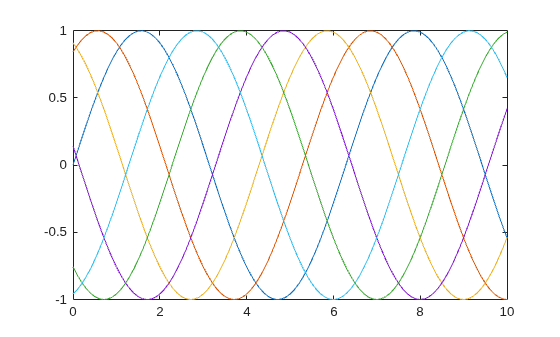

First, create a matrix of sine waves and plot them together in a
1 tiled chart layout.
x = (0:0.1:10)'; y = sin([x x+1 x+2 x+3 x+4 x+5]); figure t = tiledlayout(1,1); nexttile plot(x,y)

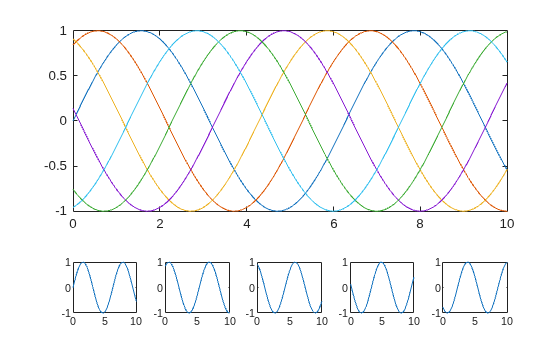

Plot the individual sine waves below the main plot. To do this, create a new layout called
ts in the south tile of layout
t. When you create
ts, specify the
'flow' tile arrangement so that the plots fill the entire south tile at each iteration of the
ts = tiledlayout(t,'flow'); ts.Layout.Tile = 'south'; for i=1:5 nexttile(ts); plot(x,y(:,i)) end
A plot can span multiple tiles of a layout. You can use this feature to display a main plot with an accompanying inset plot. In this case, the inset plot shows a zoomed-in view of a region of interest.

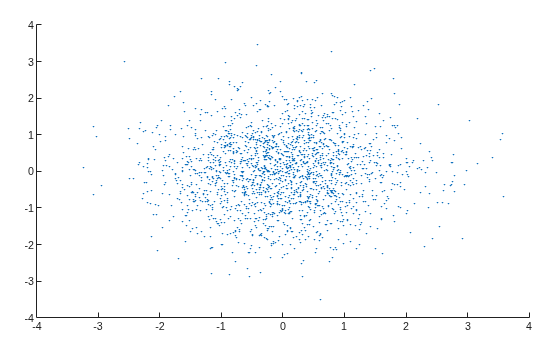

Create a 3-by-3 tiled chart layout, and create an axes that spans all of the tiles. Then display a scatter plot in the axes.
figure t = tiledlayout(3,3,'Padding','compact'); ax1 = nexttile(1,[3 3]); x = randn(2000,1); y = randn(2000,1); scatter(ax1,x,y,1,'filled');
Next, create a rectangle that defines the region of interest in the scatter plot. Set properties on the axes last, to ensure that those properties persist.
Define the bounds of the rectangle. Define
bottom as the left and bottom edges of the rectangle. Specify
left in x-axis units, and specify
bottom in y-axis units. Similarly, define
height as the width and height of the rectangle, also in axis units.

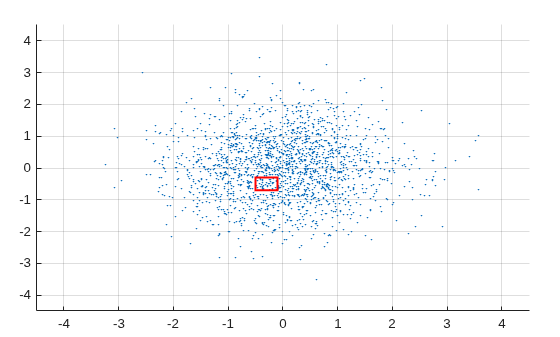

Display the rectangle. Call the
hold function to preserve the contents of the axes, and then call the
Set properties on the axes. Set the font size to
10 points, set the x- and y-axis limits, and turn the grid on.
% Define bounds of the rectangle left = -0.5; bottom = -0.7; width = 0.4; height = 0.4; % Display the rectangle hold(ax1,'on'); r = rectangle('Position',[left bottom width height], ... 'EdgeColor','red','LineWidth',1.5); % Set properties on the axes ax1.FontSize = 10; ax1.XLim = [-4.5 4.5]; ax1.YLim = [-4.5 4.5]; grid(ax1,'on')

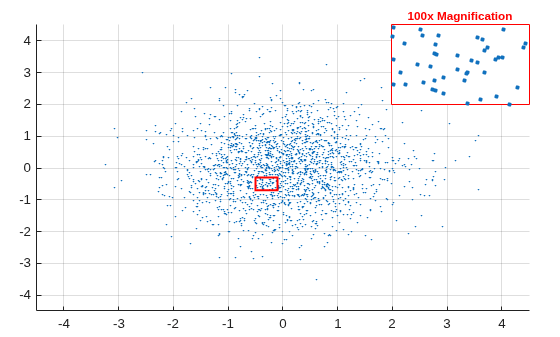

Display a smaller, zoomed-in plot with x- and y-axis limits that match the region of interest.
Create the axes for the zoomed-in view. Call the
axes function to create the axes. Move the axes to the third tile by setting the
Layout.Tile property. Then plot the entire set of x and y data.
Adjust the axis limits to match the region of interest. Set the
YLim properties of
ax2 to match the region of interest. Then remove the ticks from the plot box.
Set other properties on the axes. Turn the axes box on, set the x- and y- axis colors to red, and display a title.
% Create axes for zoomed-in view ax2 = axes(t); ax2.Layout.Tile = 3; scatter(ax2,x,y,10,'filled'); % Adjust axis limits and remove ticks ax2.XLim = [left left+width]; ax2.YLim = [bottom bottom+height]; ax2.XTick = ; ax2.YTick = ; % Set other properties on the axes ax2.Box = 'on'; ax2.XAxis.Color = 'red'; ax2.YAxis.Color = 'red'; title(ax2,'100x Magnification','Color','red');
