A pan interaction allows you to pan within a chart without having to select any
buttons in the axes toolbar. To enable panning, set the
property of the axes to a
panInteraction object. When this interaction is
enabled, you can pan by dragging within the chart.
To enable multiple interactions, set the
Interactions property to an
array of objects.
Dimensions — Dimensions
'xyz' (default) |
Dimensions to allow panning, specified as one of these values:
'xyz'— Allows panning in all dimensions.
'xy'— Allows panning in the x and y dimensions only.
'yz'— Allows panning in the y and z dimensions only.
'xz'— Allows panning in the x and z dimensions only.
'x'— Allows panning in the x dimension only.
'y'— Allows panning in the y dimension only.
'z'— Allows panning in the z dimension only.
Dimensions property is only supported for interactions in
Axes with Pan and Data Tip Interactions

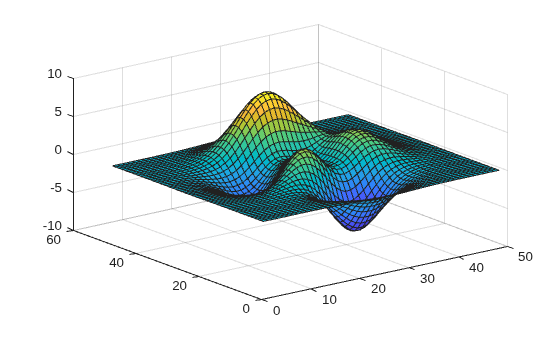

Create a surface plot. Get the current axes and replace the default interactions with the pan and data tip interactions. Then hover over the surface to display data tips. Click and drag or tap and drag to pan.
surf(peaks) ax = gca; ax.Interactions = [panInteraction dataTipInteraction];
Restrict Panning to X-Dimension

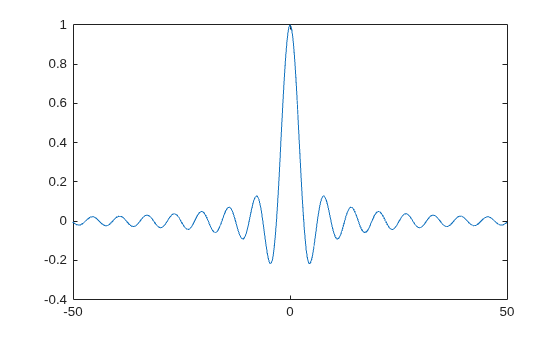

Plot a set of x and y values, and adjust the x-axis limits to narrow the view of the plot. Then replace the default set of interactions with a pan interaction that is restricted to the x-dimension. Drag within the plot to pan. Notice that you cannot pan vertically.
x = linspace(-500,500,5000); y = sin(x)./x; plot(x,y) xlim([-50 50]) ax = gca; ax.Interactions = panInteraction('Dimensions','x');
In most cases, the axes have a default set of interactions which depend on the type of chart you are displaying. You can replace the default set with a new set of interactions, but you cannot access or modify any of the interactions in the default set.
Introduced in R2019a
