convhull

Convex hull of polyshape

Syntax

polyout = convhull(polyin)

Description

polyout = convhull(polyin) returns the convex hull of a polyshape object. polyout is a polyshape object or an array of polyshape objects the same size as polyin.

example

Examples

collapse all

Convex Hull of Polygon

Open Live Script

Compute the convex hull of a polygon containing three solid regions.

x1 = [0 1 2];
y1 = [0 1 0];
x2 = [2 3 4];
y2 = [1 2 1];
x3 = [0 0.5 0.5 0];
y3 = [2 2 2.5 2.5];
polyin = polyshape({x1,x2,x3},{y1,y2,y3});
plot(polyin)
hold on
polyout = convhull(polyin);
plot(polyout)

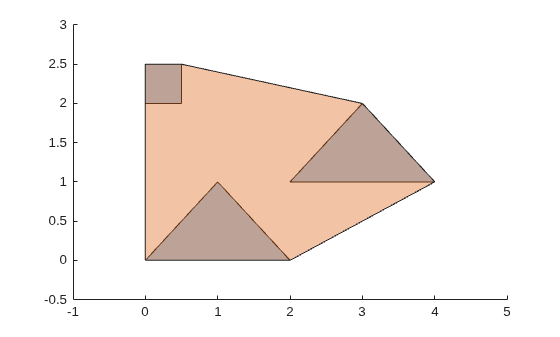

Figure contains an axes object. The axes object contains 2 objects of type polygon.

Input Arguments

collapse all

`polyin` — Input `polyshape`
scalar | vector | matrix | multidimensional array

Input polyshape, specified as a scalar, vector, matrix, or multidimensional array.

Data Types: polyshape

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.

Usage notes and limitations:

Dynamic memory allocation must be enabled for code generation.

Version History

Introduced in R2017b
