stackedplot

Stacked plot of several variables with common x-axis

•

Syntax

stackedplot(tbl)

stackedplot(tbl1,...,tblN)

stackedplot({tbl1,...,tblN})

stackedplot(___,vars)

stackedplot(X,Y)

stackedplot(Y)

stackedplot(___,LineSpec)

stackedplot(___,"XVariable",xvar)

stackedplot(___,"CombineMatchingNames",false)

stackedplot(___,Name,Value)

stackedplot(parent,___)

s = stackedplot(___)

Description

Table and Timetable Data

stackedplot(tbl) plots the variables of a table or timetable in a stacked plot, up to a maximum of 25 variables. The function plots the variables in separate y-axes, stacked vertically. The variables share a common x-axis.

• If tbl is a table, then stackedplot plots the variables against row numbers.

• If tbl is a timetable, then stackedplot plots the variables against row times.

• If tbl is a timetable with an attached event table, then stackedplot also plots events as vertical lines or shaded regions. (since R2023b)

The stackedplot function plots all the numeric, logical, categorical, datetime, and duration variables of tbl, and ignores table variables having any other data type.

stackedplot(tbl1,...,tblN) plots the variables of multiple tables or timetables. The inputs must be either all tables or all timetables. (since R2022b)

stackedplot({tbl1,...,tblN}) specifies the input as a cell array whose elements are either all tables or all timetables. This syntax is equivalent to the previous syntax.

stackedplot(___,vars) plots only the table or timetable variables specified by vars.

Vector and Matrix Data

stackedplot(X,Y) plots the columns of Y versus the vector X up to a maximum of 25 columns.

stackedplot(Y) plots the columns of Y versus their row number. The x-axis scale ranges from 1 to the number of rows in Y.

Additional Options

stackedplot(___,LineSpec) sets the line style, marker symbol, and color. You can use this syntax with the input arguments of any of the previous syntaxes.

stackedplot(___,"XVariable",xvar) specifies table variables that provide the x-values for the stacked plot.

This syntax is supported only when the inputs are tables.

stackedplot(___,"CombineMatchingNames",false) plots variables from different inputs but with the same names in different y-axes. The default behavior when you do not specify the CombineMatchingNames name-value argument is to plot them in the same y-axis.

This syntax is supported only when the inputs are multiple tables or multiple timetables.

stackedplot(___,Name,Value) sets properties for the stacked plot using one or more name-value arguments. For a list of the properties, see StackedLineChart Properties. Name-value argument settings apply to all the plots in the stacked plot.

stackedplot(parent,___) creates the stacked plot in the figure, panel, or tab specified by parent. The option parent can precede any of the input argument combinations in the previous syntaxes.

s = stackedplot(___) returns a StackedLineChart Properties object. You can use s to change properties of the stacked plot after creating it. The output s is also a standalone visualization that works independently from other charts.

Examples

Plot Timetable Variables

Read data from a spreadsheet to a timetable. (Read any text data it contains into string arrays). The first variable that contains dates and times, OutageTime, provides the row times for the timetable. Display the first five rows.

tbl = readtimetable("outages.csv","TextType","string");
head(tbl,5)

       OutageTime         Region        Loss     Customers     RestorationTime           Cause
    ________________    ___________    ______    __________    ________________    _________________

    2002-02-01 12:18    "SouthWest"    458.98    1.8202e+06    2002-02-07 16:50    "winter storm"
    2003-01-23 00:49    "SouthEast"    530.14    2.1204e+05                 NaT    "winter storm"
    2003-02-07 21:15    "SouthEast"     289.4    1.4294e+05    2003-02-17 08:14    "winter storm"
    2004-04-06 05:44    "West"         434.81    3.4037e+05    2004-04-06 06:10    "equipment fault"
    2002-03-16 06:18    "MidWest"      186.44    2.1275e+05    2002-03-18 23:23    "severe storm"

Sort the timetable so that its row times are in order. The row times of a timetable do not need to be in order. However, if you use the row times as the x-axis of a plot, then it is better to ensure the timetable is sorted by its row times.

tbl = sortrows(tbl);
head(tbl,5)

       OutageTime         Region        Loss     Customers     RestorationTime         Cause
    ________________    ___________    ______    __________    ________________    ______________

    2002-02-01 12:18    "SouthWest"    458.98    1.8202e+06    2002-02-07 16:50    "winter storm"
    2002-03-05 17:53    "MidWest"      96.563    2.8666e+05    2002-03-10 14:41    "wind"
    2002-03-16 06:18    "MidWest"      186.44    2.1275e+05    2002-03-18 23:23    "severe storm"
    2002-03-26 01:59    "MidWest"      388.04    5.6422e+05    2002-03-28 19:55    "winter storm"
    2002-04-20 16:46    "MidWest"       23141           NaN                 NaT    "unknown"

Create a stacked plot of data from tbl. The row times, OutageTime, provide the values along the x-axis. The stackedplot function plots the values from the Loss, Customers, and RestorationTime variables, with each variable plotted along its own y-axis. However, the plot does not include the Region and Cause variables because they contain data that cannot be plotted.

stackedplot(tbl)

Plot Events

Since R2023b

Plot events from an event table that is attached to a timetable. The result is a stacked plot of the timetable variables with events plotted as vertical lines or shaded regions. For more information about event tables, see eventtable.

First, import a timetable and an event table from a sample MAT-file. Display the timetable, which has a list of weather conditions over a span of two weeks in November 2022.

load weatherEvents.mat
weatherData

weatherData=15×2 timetable
       Time        Temperature    Humidity
    ___________    ___________    ________

    01-Nov-2022        36            45
    02-Nov-2022        31            76
    03-Nov-2022        37            43
    04-Nov-2022        36            46
    05-Nov-2022        38            72
    06-Nov-2022        32            54
    07-Nov-2022        35            50
    08-Nov-2022        34            45
    09-Nov-2022        32            72
    10-Nov-2022        30            58
    11-Nov-2022        39            54
    12-Nov-2022        34            58
    13-Nov-2022        31            73
    14-Nov-2022        40            78
    15-Nov-2022        34            66

Next, display the event table. It has a list of storms that occurred in November 2022 and their durations.

weatherEvents

weatherEvents = 4x3 eventtable
  Event Labels Variable: EventType
  Event Lengths Variable: EventLength

       Time        EventType    EventLength    Precipitation (mm)
    ___________    _________    ___________    __________________

    03-Nov-2022      Hail         1.2 hr              12.7
    05-Nov-2022      Rain          36 hr             114.3
    10-Nov-2022      Snow          18 hr              25.4
    14-Nov-2022      Rain          20 hr             177.8

Then, attach the event table to the timetable. The event table becomes a property of the timetable. When you display the timetable, you can also see the event labels.

weatherData.Properties.Events = weatherEvents

weatherData=15×2 timetable
               Time        Temperature    Humidity
            ___________    ___________    ________

            01-Nov-2022        36            45
            02-Nov-2022        31            76
    Hail    03-Nov-2022        37            43
            04-Nov-2022        36            46
    Rain    05-Nov-2022        38            72
    Rain    06-Nov-2022        32            54
            07-Nov-2022        35            50
            08-Nov-2022        34            45
            09-Nov-2022        32            72
    Snow    10-Nov-2022        30            58
            11-Nov-2022        39            54
            12-Nov-2022        34            58
            13-Nov-2022        31            73
    Rain    14-Nov-2022        40            78
            15-Nov-2022        34            66

Create a stacked plot. The shaded regions indicate when the storms listed in the attached event table occurred.

stackedplot(weatherData)

To hide the events, use the EventsVisible name-value argument.

stackedplot(weatherData,EventsVisible="off")

Plot Multiple Timetables

Load two timetables from the sample MAT-files, indoors and outdoors. Then display the first three rows of each timetable.

load indoors.mat
load outdoors.mat
head(indoors,3)

           Time            Humidity    AirQuality
    ___________________    ________    __________

    2015-11-15 00:00:24       36           80
    2015-11-15 01:13:35       36           80
    2015-11-15 02:26:47       37           79

head(outdoors,3)

           Time            Humidity    TemperatureF    PressureHg
    ___________________    ________    ____________    __________

    2015-11-15 00:00:24        49          51.3          29.61
    2015-11-15 01:30:24      48.9          51.5          29.61
    2015-11-15 03:00:24      48.9          51.5          29.61

Create a stacked plot of the data in indoors and outdoors. When you create a stacked plot from multiple tables or timetables:

• The legend displays the color associated with each table or timetable.

• Variables that have the same names but that come from different tables or timetables are plotted in the same y-axis. For example, this call to stackedplot plots the Humidity variables from indoors and outdoors in the same y-axis.

stackedplot(indoors,outdoors)

Combine and Separate Variables with Matching Names

Load two timetables from the sample MAT-files, indoors and outdoors. Both timetables have a variable named Humidity. Make a stacked plot from the two Humidity variables. The colors in the legend show which variables come from which timetable.

load indoors.mat
load outdoors.mat
head(indoors,5)

           Time            Humidity    AirQuality
    ___________________    ________    __________

    2015-11-15 00:00:24       36           80
    2015-11-15 01:13:35       36           80
    2015-11-15 02:26:47       37           79
    2015-11-15 03:39:59       37           82
    2015-11-15 04:53:11       36           80

head(outdoors,5)

           Time            Humidity    TemperatureF    PressureHg
    ___________________    ________    ____________    __________

    2015-11-15 00:00:24        49          51.3          29.61
    2015-11-15 01:30:24      48.9          51.5          29.61
    2015-11-15 03:00:24      48.9          51.5          29.61
    2015-11-15 04:30:24      48.8          51.5          29.61
    2015-11-15 06:00:24      48.7          51.5           29.6

stackedplot(indoors,outdoors,"Humidity")

The syntax stackedplot(indoors,outdoors,"Humidity") is equivalent to the syntax stackedplot(indoors,outdoors,"Humidity","CombineMatchingNames",true). By default, variables that have matching names but come from different inputs are plotted in the same y-axis.

To plot the two Humidity variables in different y-axes, specify the "CombineMatchingNames",false name-value argument.

stackedplot(indoors,outdoors,"Humidity","CombineMatchingNames",false)

Specify Variables

Create a table from patient data. Display the first three rows.

tbl = readtable("patients.xls","TextType","string");
head(tbl,3)

     LastName      Gender     Age             Location              Height    Weight    Smoker    Systolic    Diastolic    SelfAssessedHealthStatus
    __________    ________    ___    ___________________________    ______    ______    ______    ________    _________    ________________________

    "Smith"       "Male"      38     "County General Hospital"        71       176      true        124          93              "Excellent"
    "Johnson"     "Male"      43     "VA Hospital"                    69       163      false       109          77              "Fair"
    "Williams"    "Female"    38     "St. Mary's Medical Center"      64       131      false       125          83              "Good"

Plot only four of the variables from the table.

stackedplot(tbl,["Height","Weight","Systolic","Diastolic"])

Reorder Variables

Read a timetable from file and display its first three rows.

tbl = readtimetable("outages.csv","TextType","string");
tbl = sortrows(tbl);
head(tbl,3)

       OutageTime         Region        Loss     Customers     RestorationTime         Cause
    ________________    ___________    ______    __________    ________________    ______________

    2002-02-01 12:18    "SouthWest"    458.98    1.8202e+06    2002-02-07 16:50    "winter storm"
    2002-03-05 17:53    "MidWest"      96.563    2.8666e+05    2002-03-10 14:41    "wind"
    2002-03-16 06:18    "MidWest"      186.44    2.1275e+05    2002-03-18 23:23    "severe storm"

Reorder the variables by specifying them in an order that differs from their order in the table. For example, RestorationTime is the last variable in the timetable that can be plotted. By default, stackedplot places it at the bottom of the plot. But you can reorder the variables to put RestorationTime at the top.

stackedplot(tbl,["RestorationTime","Loss","Customers"])

There are also other ways to reorder the variables.

• Specify them by their numeric order in the table:

stackedplot(tbl,[4 2 3]);

• Return a StackedLineChart object and reorder the values in its DisplayVariables property:

s = stackedplot(tbl);
s.DisplayVariables = ["RestorationTime","Loss","Customers"]

Plot Columns of Matrix

Create a numeric matrix and a numeric vector.

X = [0:4:20]

X = 1×6

     0     4     8    12    16    20

Y = randi(100,6,3)

Y = 6×3

    82    28    96
    91    55    49
    13    96    81
    92    97    15
    64    16    43
    10    98    92

Create a stacked plot using X and Y.

stackedplot(X,Y)

Specify Title and Labels Using Name-Value Arguments

Load a timetable that has a set of weather measurements. Display its first three rows.

load outdoors
outdoors(1:3,:)

ans=3×3 timetable
           Time            Humidity    TemperatureF    PressureHg
    ___________________    ________    ____________    __________

    2015-11-15 00:00:24        49          51.3          29.61
    2015-11-15 01:30:24      48.9          51.5          29.61
    2015-11-15 03:00:24      48.9          51.5          29.61

Create a stacked plot. Specify the title and labels for the y-axes using name-value arguments. You can use name-value arguments to change any properties from their defaults values. (Also note that you can specify the degree symbol using char(176).)

degreeSymbol = char(176);
newYlabels = ["RH (%)","T (" + degreeSymbol + "F)","P (in Hg)"];
stackedplot(outdoors,"Title","Weather Data","DisplayLabels",newYlabels)

Specify Legend for Multiple Timetables

Load two timetables from the sample MAT-files, indoors and outdoors.

load indoors.mat
load outdoors.mat
head(indoors,3)

           Time            Humidity    AirQuality
    ___________________    ________    __________

    2015-11-15 00:00:24       36           80
    2015-11-15 01:13:35       36           80
    2015-11-15 02:26:47       37           79

head(outdoors,3)

           Time            Humidity    TemperatureF    PressureHg
    ___________________    ________    ____________    __________

    2015-11-15 00:00:24        49          51.3          29.61
    2015-11-15 01:30:24      48.9          51.5          29.61
    2015-11-15 03:00:24      48.9          51.5          29.61

When you create a stacked plot with multiple tables or timetables, it includes a legend. By default, the legend uses the names of the inputs as labels. But you can specify the labels and the orientation of the labels in the legend.

stackedplot(indoors,outdoors,"LegendLabels",["Inside Readings","Outside Readings"],...
                                 "LegendOrientation","vertical")

Also, you can hide the legend.

stackedplot(indoors,outdoors,"LegendVisible","off")

Change Properties of Lines and Axes

The stackedplot function returns a StackedLineChart object. You can use it to set the same line and axis properties for all plots, or to set different property values for individual plots. In this example, first change the line widths for all plots in a stacked plot. Then, use the PlotType property of individual plots, so that the stacked plot has a line plot, scatter plot, and stair plot.

Load a timetable that has a set of weather measurements.

load outdoors
outdoors(1:3,:)

ans=3×3 timetable
           Time            Humidity    TemperatureF    PressureHg
    ___________________    ________    ____________    __________

    2015-11-15 00:00:24        49          51.3          29.61
    2015-11-15 01:30:24      48.9          51.5          29.61
    2015-11-15 03:00:24      48.9          51.5          29.61

Create a stacked plot and return a StackedLineChart object.

s = stackedplot(outdoors)

s =
  StackedLineChart with properties:

         SourceTable: [51x3 timetable]
    DisplayVariables: {'Humidity'  'TemperatureF'  'PressureHg'}
               Color: [0 0.4470 0.7410]
           LineStyle: '-'
           LineWidth: 0.5000
              Marker: 'none'
          MarkerSize: 6
       EventsVisible: on

  Use GET to show all properties

The object provides access to many properties that apply to all the plots. For example, you can use s.LineWidth to make the lines wider.

s.LineWidth = 2;

The object also provides access to arrays of objects that you can use to modify the lines and y-axes for individual plots. To access properties of individual lines, use s.LineProperties. For each plot, you can specify a different line style, marker, plot type, and so on.

s.LineProperties

ans=3×1 StackedLineProperties array with properties:
    Color
    MarkerFaceColor
    MarkerEdgeColor
    LineStyle
    LineWidth
    Marker
    MarkerSize
    PlotType

Change the second plot to a scatter plot, and the third plot to a stair plot, using the PlotType property.

s.LineProperties(2).PlotType = "scatter";
s.LineProperties(3).PlotType = "stairs";

You also can access individual y-axes through the s.AxesProperties property.

s.AxesProperties

ans=3×1 StackedAxesProperties array with properties:
    YLimits
    YScale
    LegendLabels
    LegendLocation
    LegendVisible
    CollapseLegend

For example, change the y-limits of the first plot.

s.AxesProperties(1).YLimits = [46 54];

Plot And Change Multiple Lines in One Y-Axis

Create a table from a subset of patient data, using the Weight, Systolic, and Diastolic variables.

load patients
tbl = table(Weight,Systolic,Diastolic);
head(tbl,3)

    Weight    Systolic    Diastolic
    ______    ________    _________

     176        124          93
     163        109          77
     131        125          83

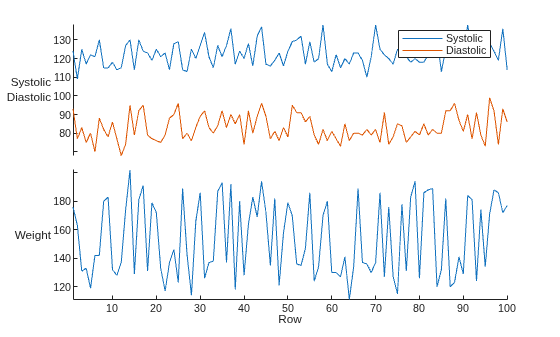

Create a stacked plot, with Systolic and Diastolic plotted using the same y-axis, and Weight using its own y-axis. First, specify vars as a cell array with two elements. The first element groups "Systolic" and "Diastolic" together in a string array. They are plotted together on a common y-axis. The second element of the cell array is "Weight". It is plotted on its own y-axis. Also, return a StackedLineChart object that has the properties of the stacked plot.

vars = {["Systolic","Diastolic"],"Weight"}

vars=1×2 cell array
    {["Systolic"    "Diastolic"]}    {["Weight"]}

s = stackedplot(tbl,vars)

s =
  StackedLineChart with properties:

         SourceTable: [100x3 table]
    DisplayVariables: {{1x2 cell}  'Weight'}
           XVariable: []
               Color: [0 0.4470 0.7410]
           LineStyle: '-'
           LineWidth: 0.5000
              Marker: 'none'
          MarkerSize: 6

  Use GET to show all properties

When you plot multiple variables in one y-axis, you can assign different styles to the lines within that y-axis by assigning an array that specifies the styles.

For example, to specify the same color for both lines in the first y-axis, assign it to s.LineProperties(1).Color. To specify different line styles for the two lines, assign a string array that specifies two different styles to s.LineProperties(1).LineStyle.

s.LineProperties(1).Color = "magenta";
s.LineProperties(1).LineStyle = ["--",":"];

Change Color Order for Multiple Inputs

Load two timetables from the sample MAT-files, indoors and outdoors.

load indoors.mat
load outdoors.mat

Create a stacked plot.

s = stackedplot(indoors,outdoors);

Change the color order used to indicate which variables come from which timetable. If you have a few timetables, it can be practical to choose colors by name.

colororder(s,["magenta","green"])

If you plot variables from a larger number of input tables or timetables, it might be more practical to set the color order by using a colormap. Specify that the colormap has n colors, where n is the number of tables or timetables you specified when you created the stacked plot.

For example, set the color order using the parula function to return the parula colormap. Specify the number of colors as being equal to the number of timetables. If you do not know how many tables or timetables are shown in the stacked plot, use the SourceTable property of the StackedLineChart object returned by stackedplot.

numTimetables = numel(s.SourceTable);
colororder(s,parula(numTimetables))

Semilog Plot with Y-Axis Log Scale

Import data into a timetable. Then make a stacked plot. By default, all plots have linear scales on both their x- and y-axes.

tbl = readtimetable("outages.csv");
tbl = sortrows(tbl);
s = stackedplot(tbl)

s =
  StackedLineChart with properties:

         SourceTable: [1468x5 timetable]
    DisplayVariables: {'Loss'  'Customers'  'RestorationTime'}
               Color: [0 0.4470 0.7410]
           LineStyle: '-'
           LineWidth: 0.5000
              Marker: 'none'
          MarkerSize: 6
       EventsVisible: on

  Use GET to show all properties

You can access properties of individual y-axes, such as their scales, through the s.AxesProperties property.

s.AxesProperties

ans=3×1 StackedAxesProperties array with properties:
    YLimits
    YScale
    LegendLabels
    LegendLocation
    LegendVisible
    CollapseLegend

To turn the first and second plots into semilog plots, with log scales on their y-axes, set their YScale properties to 'log'.

s.AxesProperties(1).YScale = 'log';
s.AxesProperties(2).YScale = 'log';

Input Arguments

tbl — Input table or timetable

table | timetable

Input table or timetable. The stackedplot function plots all the numeric, logical, categorical, datetime, and duration variables, and ignores table variables of any other data type. If tbl has more than 25 variables, stackedplot plots the first 25.

To specify multiple input tables or timetables, use a comma-separated list or a cell array of tables or timetables. When specifying multiple inputs, you cannot mix tables and timetables in one call to stackedplot.

vars — Variables in input tables or timetables

string array | numeric array | logical array | cell array | vartype subscript

Variables in the input tables or timetables, specified using one of the indexing schemes from the table.

Note: If you create a stacked plot from multiple tables or timetables, then vars can be only a string array, a cell array of character vectors, or a cell array whose elements are string arrays or cell arrays of character vectors.

Indexing Scheme	Examples
Variable names: A string array or a cell array of character vectors.	"A" — A variable called A ["A","B"] or {'A','B'} — Two variables called A and B
Variable index (for single table or timetable only): An index number that refers to the location of a variable in the table. A vector of numbers. A logical vector. Typically, this vector is the same length as the number of variables, but you can omit trailing 0 or false values.	3 — The third variable from the table [2 3] — The second and third variables from the table [false false true] — The third variable
Variable type (for single table or timetable only): A vartype subscript that selects variables of a specified type.	vartype("categorical") — All the variables containing categorical values
Variables specified in nested cell array: A cell array that contains numeric arrays (for single table or timetable only). A cell array that contains string arrays. A cell array that contains cell arrays of character vectors.	{[1 2] 3} — The first and second variables plotted in one y-axis, and the third variable plotted in a second y-axis {["A","B"],"C"} — Variables A and B plotted in one y-axis, and variable C plotted in a second y-axis {{'A','B'},'C'} — Variables A and B plotted in one y-axis, and variable C plotted in a second y-axis

Example: stackedplot(tbl,[1 3 4]) specifies the first, third, and fourth variables.

Example: stackedplot(tbl,{["Temp1","Temp2"],"Pressure"}) uses a nested cell array to specify that Temp1 and Temp2 are plotted in the same y-axis.

Example: stackedplot(tbl,{{1,2},5}) specifies variables by number and plots the first and second variables in the same y-axis.

X — x-values

numeric vector | datetime vector | duration vector | logical vector

x-values, specified as a numeric, datetime, duration, or logical vector. The length of X must equal the number of rows of Y.

Y — y-values

numeric array | datetime array | duration array | categorical array | logical array

y-values, specified as a numeric, datetime, duration, categorical, or logical array. The stackedplot function plots each column in a separate y-axis.

LineSpec — Line style, marker, and color

string scalar | character vector

Line style, marker, and color, specified as a string scalar or character vector containing symbols. The symbols can appear in any order. You do not need to specify all three characteristics (line style, marker, and color). For example, if you omit the line style and specify the marker, then the plot shows only the marker and no line.

Example: "--or" is a red dashed line with circle markers.

Line Style	Description	Resulting Line
"-"	Solid line
"--"	Dashed line
":"	Dotted line
"-."	Dash-dotted line

Marker	Description	Resulting Marker
"o"	Circle
"+"	Plus sign
"*"	Asterisk
"."	Point
"x"	Cross
"_"	Horizontal line
"|"	Vertical line
"square"	Square
"diamond"	Diamond
"^"	Upward-pointing triangle
"v"	Downward-pointing triangle
">"	Right-pointing triangle
"<"	Left-pointing triangle
"pentagram"	Pentagram
"hexagram"	Hexagram

Color Name	Short Name	RGB Triplet	Appearance
"red"	"r"	[1 0 0]
"green"	"g"	[0 1 0]
"blue"	"b"	[0 0 1]
"cyan"	"c"	[0 1 1]
"magenta"	"m"	[1 0 1]
"yellow"	"y"	[1 1 0]
"black"	"k"	[0 0 0]
"white"	"w"	[1 1 1]

xvar — Table variables that contain x-values

string array | character vector | cell array of character vectors | integer array | logical array

Table variables that contain x-values, specified as a string array, character vector, cell array of character vectors, integer array, or logical array.

You can specify xvar only when the input arguments tbl or tbl1,...,tblN are tables, not timetables, vectors, or matrices.

• If the input is one table, then xvar specifies one variable in the table.

• If the inputs are multiple tables, then xvar can specify either one variable that is present in all tables or a different variable in each table.

  For example, if the inputs are tbl1,tbl2,tbl3, then xvar can be "X" if each table has a variable named X that provides x-values. However, if tbl1 has a variable named X1, tbl2 a variable named X2, and tbl3 a variable named X3, then specify xvar as ["X1","X2","X3"].

parent — Parent container

Figure object | Panel object | Tab object | TiledChartLayout object | GridLayout object

Parent container, specified as a Figure, Panel, Tab, TiledChartLayout, or GridLayout object.

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Example: stackedplot(tbl,Marker="o",MarkerSize=10)

Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

Example: stackedplot(tbl,"Marker","o","MarkerSize",10)

The stacked chart line properties listed here are only a subset common to all stacked plots, whether the data source is a table or array. For a complete list, see StackedLineChart Properties.

Color — Line color

[0 0.4470 0.7410] (default) | RGB triplet | hexadecimal color code | "r" | "g" | "b" | ...

Line color, specified as an RGB triplet, a hexadecimal color code, or one of the color options listed in the first table.

For a custom color, specify an RGB triplet or a hexadecimal color code.

• An RGB triplet is a three-element row vector whose elements specify the intensities of the red, green, and blue components of the color. The intensities must be in the range [0,1], for example, [0.4 0.6 0.7].

• A hexadecimal color code is a string scalar or character vector that starts with a hash symbol (#) followed by three or six hexadecimal digits, which can range from 0 to F. The values are not case sensitive. Therefore, the color codes "#FF8800", "#ff8800", "#F80", and "#f80" are equivalent.

Alternatively, you can specify some common colors by name. This table lists the named color options, the equivalent RGB triplets, and hexadecimal color codes.

Color Name	Short Name	RGB Triplet	Hexadecimal Color Code	Appearance
"red"	"r"	[1 0 0]	"#FF0000"
"green"	"g"	[0 1 0]	"#00FF00"
"blue"	"b"	[0 0 1]	"#0000FF"
"cyan"	"c"	[0 1 1]	"#00FFFF"
"magenta"	"m"	[1 0 1]	"#FF00FF"
"yellow"	"y"	[1 1 0]	"#FFFF00"
"black"	"k"	[0 0 0]	"#000000"
"white"	"w"	[1 1 1]	"#FFFFFF"
"none"	Not applicable	Not applicable	Not applicable	No color

Here are the RGB triplets and hexadecimal color codes for the default colors MATLAB^® uses in many types of plots.

RGB Triplet	Hexadecimal Color Code	Appearance
[0 0.4470 0.7410]	"#0072BD"
[0.8500 0.3250 0.0980]	"#D95319"
[0.9290 0.6940 0.1250]	"#EDB120"
[0.4940 0.1840 0.5560]	"#7E2F8E"
[0.4660 0.6740 0.1880]	"#77AC30"
[0.3010 0.7450 0.9330]	"#4DBEEE"
[0.6350 0.0780 0.1840]	"#A2142F"

Example: "blue"

Example: [0 0 1]

Example: "#0000FF"

LineStyle — Line style

"-" (default) | "--" | ":" | "-." | "none"

Line style, specified as one of the options listed in this table.

Line Style	Description	Resulting Line
"-"	Solid line
"--"	Dashed line
":"	Dotted line
"-."	Dash-dotted line
"none"	No line	No line

LineWidth — Line width

0.5 (default) | positive value

Line width, specified as a positive value in points, where 1 point = 1/72 of an inch. If the line has markers, then the line width also affects the marker edges.

The line width cannot be thinner than the width of a pixel. If you set the line width to a value that is less than the width of a pixel on your system, the line displays as one pixel wide.

Marker — Marker symbol

"none" (default) | "o" | "+" | "*" | "." | ...

Marker symbol, specified as one of the values listed in this table. By default, the object does not display markers. Specifying a marker symbol adds markers at each data point or vertex.

Marker	Description	Resulting Marker
"o"	Circle
"+"	Plus sign
"*"	Asterisk
"."	Point
"x"	Cross
"_"	Horizontal line
"|"	Vertical line
"square"	Square
"diamond"	Diamond
"^"	Upward-pointing triangle
"v"	Downward-pointing triangle
">"	Right-pointing triangle
"<"	Left-pointing triangle
"pentagram"	Pentagram
"hexagram"	Hexagram
"none"	No markers	Not applicable

MarkerSize — Marker size

6 (default) | positive value

Marker size, specified as a positive value in points, where 1 point = 1/72 of an inch.

More About

Standalone Visualization

A standalone visualization is a chart designed for a special purpose that works independently from other charts. Unlike other charts such as plot and surf, a standalone visualization has a preconfigured axes object built into it, and some customizations are not available. A standalone visualization also has these characteristics:

• It cannot be combined with other graphics elements, such as lines, patches, or surfaces. Thus, the hold command is not supported.

• The gca function can return the chart object as the current axes.

• You can pass the chart object to many MATLAB functions that accept an axes object as an input argument. For example, you can pass the chart object to the title function.

Tips

• To interactively explore the data in your stacked plot, use these features.

  • Zoom — Use the scroll wheel to zoom.

  • Pan — Click and drag the stacked plot to pan across the x-values.

  • Data cursor — Hover over a location to display y-values for each plot.

Version History

Introduced in R2018b

R2023b: Plot events associated with timetables

The stackedplot function can plot events as lines or shaded regions on stacked plots created from timetables. To plot events associated with a timetable, you must attach an event table to it before you call stackedplot. For more information on event tables, see eventtable.

To support events, stackedplot has a new EventsVisible name-value argument:

• If EventsVisible is "on", then stackedplot plots events as lines or shaded regions.

• If EventsVisible is "off", then stackedplot hides events.

R2022b: Plot variables from multiple tables and timetables in a stacked plot

You can now plot variables from multiple input tables or timetables. In previous releases, you can plot variables only from a single table or timetable.

Also, these name-value arguments are added in R2022b. The corresponding StackedLineChart properties are also added in R2022b.

• CombineMatchingNames

• LegendLabels

• LegendVisible

• LegendOrientation

R2022a: Plot a variable multiple times in a stacked plot

You can display the same table or timetable variable multiple times in a stacked plot. In previous releases, specifying a variable more than once results in an error.

For example, create a timetable from the outages.csv file. Then plot the RestorationTime variable under each of the other variables you specify.

tbl = readtimetable("outages.csv");
tbl = sortrows(tbl);
stackedplot(tbl,["Loss","RestorationTime","Customers","RestorationTime"])
