Convert for
-Loops Into parfor
-Loops
In some cases, you must modify the code to convert for
-loops to
parfor
-loops. This example shows how to diagnose and fix
parfor
-loop problems using a simple nested
for
-loop. Run this code in MATLAB® and examine the results.
for x = 0:0.1:1 for y = 2:10 A(y) = A(y-1) + y; end end
To speed up the code, try to convert the for
-loops to
parfor
-loops. Observe that this code produces
errors.
parfor x = 0:0.1:1 parfor y = 2:10 A(y) = A(y-1) + y; end end
In this case you cannot simply convert the for
-loops to
parfor
-loops without modification. To make this work, you must

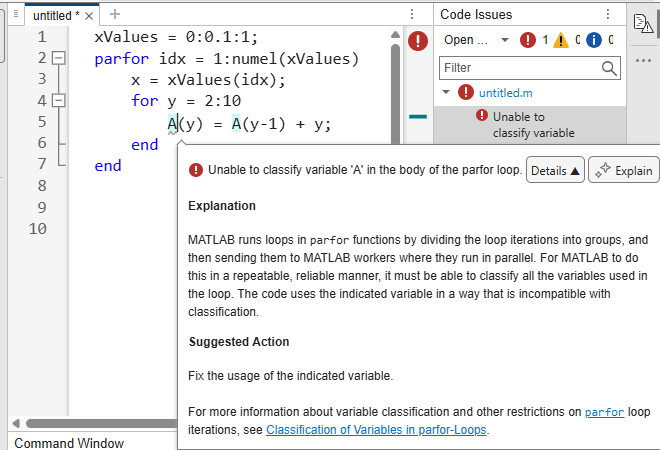

change the code in several places. To diagnose the problems, look for Code Analyzer
messages in the MATLAB Editor.
This code shows common problems when you try to convert for
-loops
to parfor
-loops.
To solve these problems, you must modify the code to use parfor
.
The body of the parfor
-loop is executed in a parallel pool using
multiple MATLAB workers in a nondeterministic order. Therefore, you have to meet these
requirements for the body of the parfor
-loop:
The body of the
parfor
-loop must be independent. One loop iteration cannot depend on a previous iteration, because the iterations are executed in parallel in a nondeterministic order. In the example,is not independent, and therefore you cannot useA(y) = A(y-1) + y;
parfor
. For next steps in dealing with independence issues, see Ensure That parfor-Loop Iterations are Independent.You cannot nest a
parfor
-loop inside anotherparfor
-loop. The example has two nestedfor
-loops, and therefore you can replace only onefor
-loop with aparfor
-loop. Instead, you can call a function that uses aparfor
-loop inside the body of the otherparfor
-loop. However, such nestedparfor
-loops give you no computational benefit, because all workers are used to parallelize the outermost loop. For help dealing with nested loops, see Nested parfor and for-Loops and Other parfor Requirements.parfor
-loop variables must be consecutive increasing integers. In the example,has non-integer loop variables, and therefore you cannot useparfor x = 0:0.1:1
parfor
here. You can solve this problem by changing the value of the loop variable to integer values required by the algorithm. For next steps in troubleshootingparfor
-loop variables, see Ensure That parfor-Loop Variables Are Consecutive Increasing Integers.You cannot break out of a
parfor
-loop early, as you can in afor
-loop. Do not include a return or break statement in the body of yourparfor
-loop. Without communication, the other MATLAB instances running the loop do not know when to stop. As an alternative, considerparfeval
.If you still have problems converting
for
-loops toparfor
-loops, see Troubleshoot Variables in parfor-Loops.
Tip
You can profile a parfor
-loops using
tic
and toc
to measure the speedup
compared to the corresponding for
-loop. Use ticBytes
and tocBytes
to measure how much
data is transferred to and from the workers in the parallel pool. For more
information and examples, see Profiling parfor-loops.
