filterByIndex
Description
Examples
Heat Distribution in Cylinder for Series of Time Steps
Analyze heat transfer in a cylinder.
Create an femodel
object for solving a transient thermal problem, and assign a geometry representing a cylinder to the model.
model = femodel(AnalysisType="thermalTransient", ... Geometry=multicylinder(0.005,0.01));

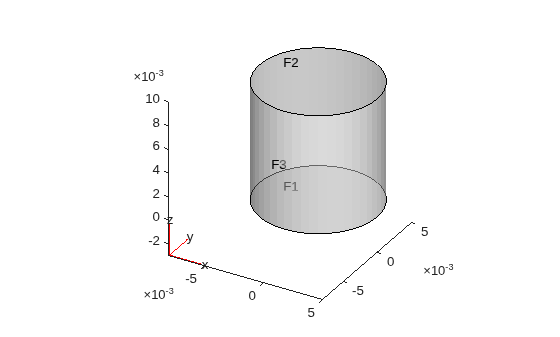

Plot the geometry.
pdegplot(model,FaceLabels="on",FaceAlpha=0.5);
Assuming that the heat sink is made of copper, specify the thermal conductivity, mass density, and specific heat.
model.MaterialProperties = ... materialProperties(ThermalConductivity=400, ... MassDensity=8960, ... SpecificHeat=386);
Specify the Stefan-Boltzmann constant.
model.StefanBoltzmann = 5.670367e-8;
Apply the temperature boundary condition on the bottom surface of the cylinder.
model.FaceBC(1) = faceBC(Temperature=1000);
Specify the convection and radiation parameters on the top and side surfaces of the cylinder.
model.FaceLoad([2 3]) = faceLoad(ConvectionCoefficient=5, ... AmbientTemperature=300, ... Emissivity=0.8);
Set the initial temperature to the ambient temperature.
model.CellIC = cellIC(Temperature=300);
Generate a mesh.
model = generateMesh(model);
Solve the transient thermal problem at 0, 0.1, and 0.2 seconds.
results = solve(model,0:0.1:0.2);

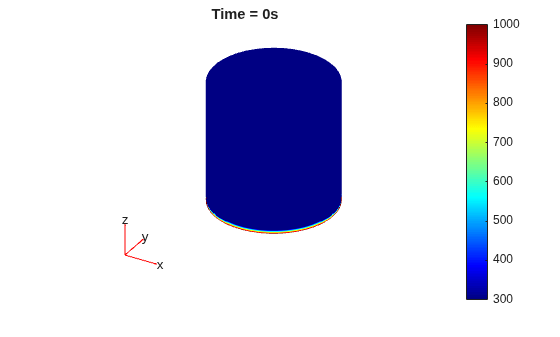

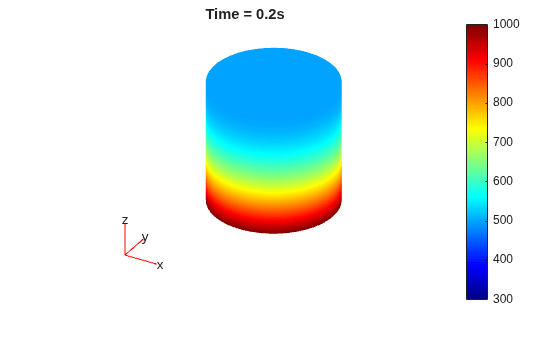

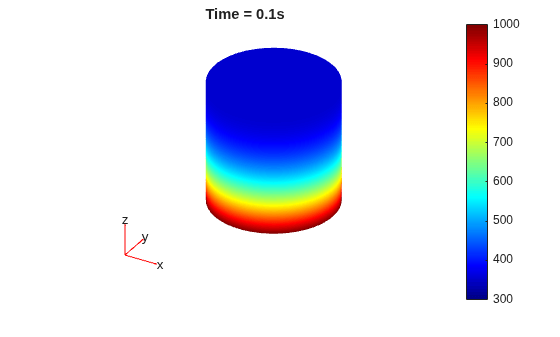

Plot the temperature distribution for each time step. Access the results for each step by using the filterByIndex
function.
for i = 1:length(results.SolutionTimes) figure resultsByStep = filterByIndex(results,i); pdeplot3D(results.Mesh,ColorMapData=resultsByStep.Temperature); clim([300 1000]) title({['Time = ' num2str(results.SolutionTimes(i)) 's']}) end
Now, use the transient thermal results obtained for the second time step as the initial temperature of the cylinder.
R = filterByIndex(results,2); model.CellIC = cellIC(Temperature=R);
Solve the transient thermal problem for the 10 time steps between 0.1 and 0.11 second.
results_01_011 = solve(model,linspace(0.1,0.11,10));
Input Arguments
results
— Solution of structural or thermal problem
TransientStructuralResults
object | TransientThermalResults
object
Solution of a structural or thermal problem, specified as a TransientStructuralResults
object or a TransientThermalResults
object. Create results
by using
solve
.
inds
— Time steps
vector of positive integers
Time steps, specified as a vector of positive integers.
Output Arguments
subsetR
— Solutions corresponding to specified time steps
TransientStructuralResults
object | TransientThermalResults
object
Solutions corresponding to specified time steps, returned as a
TransientStructuralResults
object or a
TransientThermalResults
object.
Version History
Introduced in R2023b
