# Model, Simulate, and Generate Code for a Ladder Logic-Based Temperature Controller

Model and simulate a ladder logic-based temperature controller of a home. The ladder logic controls the heater based on the thermostat settings and the outside ambient temperature. After verifying that the controller functions for your requirements, generate code for your controller.

### Model Description

The model consists of a `House` block that models the thermal characteristics of the house and the heating system. The T`emperature Controller` block implements the ladder logic that controls the heater. The `Human Machine Interface (HMI)` block enables you to interact with the model.

Open the model:

`open_system('plcdemo_ladder_househeat_complete');`

#### Initialize Model

This model calculates heating costs for a generic house. Opening the model loads the information about the house from the plcdemo_ladder_househeat_data.m file. The file:

• Defines the house geometry (size, number of windows)

• Specifies the thermal properties of house materials

• Calculates the thermal resistance of the house

• Provides the heater characteristics (temperature of the hot air, flow rate)

• Defines the cost of electricity (0.09\$/kWhr)

• Specifies the initial room temperature (20°C = 68° F)

Note: Time is given in units of hours. Certain quantities, like air flow rate, are expressed per hour (not per second).

#### Model Components

Set Point

`Set Point` specifies the temperature that must be maintained indoors. It is 70° Fahrenheit by default. Temperatures are given in °Fahrenheit. The model converts the temperature to °Celsius.

Range

`Range` is a constant block. This specifies the range around the set point for the room temperature to fluctuate. It is 5° Fahrenheit by default. The room temperature varies between $Set_L$ and $Set_H$ where:

`$Set_L=SetPoint-Range$`

`$Set_H=SetPoint+Range$`

Model the Environment

The model uses a heat sink with infinite heat capacity and time varying temperature `Tout` to simulate the environment. The constant block `Avg. Outdoor Temp` specifies the average air temperature outdoors. The `Daily Temp Variation` Sine Wave block generates daily outdoor temperature fluctuations. You can vary these parameters to see how they affect the heating costs.

#### HMI Block

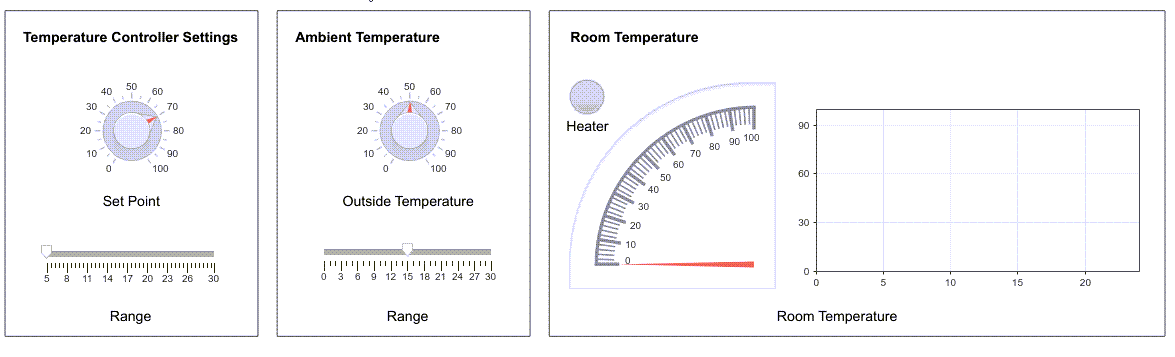

The `HMI` block consists of inputs and outputs that you use to interact with the model simulation. Open the `HMI` block by double-clicking the block. This image shows the components of the HMI block.

This HMI block contains:

• Temperature Controller Settings: Use the `Set Point` and `Range` to specify the inputs to the temperature controller. The values are specified in ° Fahrenheit.

• Ambient Temperature: Use the `Outside Temperature` to set `Avg.Outdoor Temp`. Use the `Range` slider to set the amplitude of the `Daily Temp Variation` Sine Wave block. The values are specified in ° Fahrenheit.

• Room Temperature: The graph and dial indicate the room temperature in ° Fahrenheit. The red-colored `Heater` indicator means that the heater is on. The gray-colored `Heater` indicator means that the heater is off.

#### Temperature Controller

The `Temperature Controller` block is an Add-On Instruction (AOI) runner block. The AOI runner block contains a ladder logic implementation of the heater controls. To view the ladder logic open:

• The `Temperature Controller` block,

• The `Temperature Controller Runner` block

• The `Function Block`

Then, select `Logic Routine`.

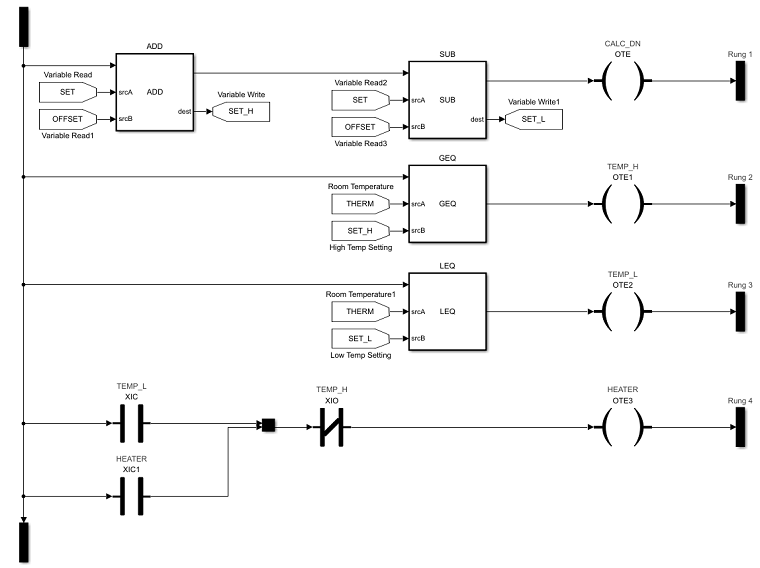

This image shows the ladder logic-based temperature controller inside the `Logic` `Routine` block.

The first rung calculates `SET_H` and `SET_L`. On the second rung, when the room temperature is greater than or equal to `SET_H, OTE1` is on. On the third rung when the room temperature is lesser than or equal to `SET_L, `OTE2 is on. When `OTE2` is on and `OTE1` is off, the heater is on.

### Simulate Model and Generate Code

Simulate the model and observe the graphs in the `HMI` block. Vary the `Set Point`, `Range`, `Avg.Outdoor Temp` to see how the heater turns on and off. In this image, the set point is 70° Fahrenheit, the range is set to 5° Fahrenheit, Ambient temperature is set to 50° Fahrenheit, and the amplitude of the disturbance is set to 15° Fahrenheit.

After verifying that the controller functions for your requirements, generate code for the `Temperature Controller` block.

`plcgeneratecode('plcdemo_ladder_househeat_complete/Temperature Controller/Temperature Controller Runner')`
```### Generating PLC code for 'plcdemo_ladder_househeat_complete/Temperature Controller/Temperature Controller Runner'. ### Using model settings from 'plcdemo_ladder_househeat_complete' for PLC code generation parameters. ### Begin code generation for IDE studio5000. ### Emit PLC code to file. ### PLC ladder code generation successful for 'plcdemo_ladder_househeat_complete/Temperature Controller/Temperature Controller Runner'. ### Generated ladder files: plcsrc/plcdemo_ladder_househeat_complete_gen.L5X ```

Alternatively generate code by selecting the `Temperature Controller` block, `Temperature Controller Runner` block, and then select APPS > PLC Coder. On the PLC Code tab, click Generate PLC Code.

To generate a test bench, select the `Temperature Controller Runner` block. On the PLC Code tab, click Settings > PLC Code Generation > Generate testbench for subsystem. Click Generate PLC Code.

#### Generate Simulink Design Verifier™ Test Cases

Execute this command:

```plcladderoptions(gcs,'FastSim','on'); ```

Open the `Temperature Controller `block, right-click AOI Runner block, and select `Design Verifier > Generate test case for subsystem`.
