Train DDPG Agent to Swing Up and Balance Pendulum

This example shows how to train a deep deterministic policy gradient (DDPG) agent to swing up and balance a pendulum modeled in Simulink®.

For more information on DDPG agents, see Deep Deterministic Policy Gradient (DDPG) Agents. For an example that trains a DDPG agent in MATLAB®, see Compare DDPG Agent to LQR Controller.

Pendulum Swing-Up Model

The reinforcement learning environment for this example is a simple frictionless pendulum that initially hangs in a downward position. The training goal is to make the pendulum stand upright without falling over using minimal control effort.

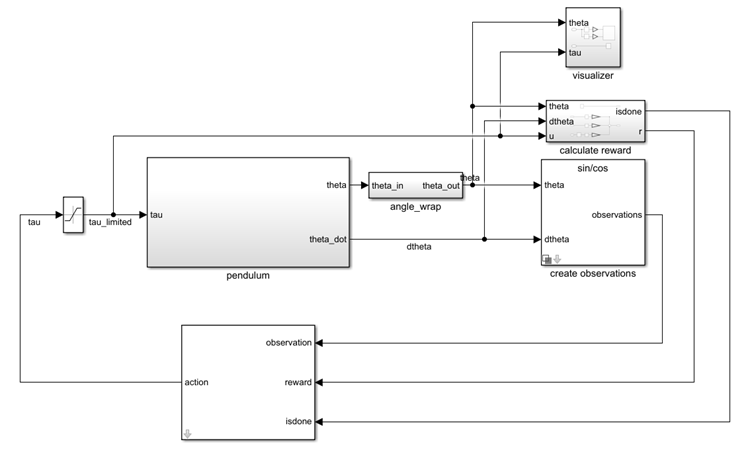

Open the model.

mdl = "rlSimplePendulumModel";
open_system(mdl)

For this model:

  • The upward balanced pendulum position is 0 radians, and the downward hanging position is pi radians.

  • The torque action signal from the agent to the environment is from –2 to 2 N·m.

  • The observations from the environment are the sine of the pendulum angle, the cosine of the pendulum angle, and the pendulum angle derivative.

  • The reward rt, provided at every time step, is

rt=-(θt2+0.1θt˙2+0.001ut-12)

Here:

  • θt is the angle of displacement from the upright position.

  • θt˙ is the derivative of the displacement angle.

  • ut-1 is the control effort from the previous time step.

For more information on this model, see Load Predefined Control System Environments.

Create Environment Interface

Create a predefined environment interface for the pendulum.

env = rlPredefinedEnv("SimplePendulumModel-Continuous")
env =
SimulinkEnvWithAgent with properties:

           Model : rlSimplePendulumModel
      AgentBlock : rlSimplePendulumModel/RL Agent
        ResetFcn : []
  UseFastRestart : on

obsInfo = getObservationInfo(env);

The interface has a continuous action space where the agent can apply torque values between –2 to 2 N·m to the pendulum.

actInfo = getActionInfo(env)
actInfo =
  rlNumericSpec with properties:

     LowerLimit: -2
     UpperLimit: 2
           Name: "torque"
    Description: [0x0 string]
      Dimension: [1 1]
       DataType: "double"

Set the observations of the environment to be the sine of the pendulum angle, the cosine of the pendulum angle, and the pendulum angle derivative.

set_param( ...
    "rlSimplePendulumModel/create observations", ...
    "ThetaObservationHandling","sincos");

To define the initial condition of the pendulum as hanging downward, specify an environment reset function using an anonymous function handle. This reset function sets the model workspace variable theta0 to pi.

env.ResetFcn = @(in)setVariable(in,"theta0",pi,"Workspace",mdl);

Specify the simulation time Tf and the agent sample time Ts in seconds.

Ts = 0.05;
Tf = 20;

Fix the random generator seed for reproducibility.

rng(0)

Create DDPG Agent

DDPG agents use a parametrized Q-value function approximator to estimate the value of the policy. A Q-value function critic takes the current observation and an action as inputs and returns a single scalar as output (the estimated discounted cumulative long-term reward for which receives the action from the state corresponding to the current observation, and following the policy thereafter).

To model the parametrized Q-value function within the critic, use a neural network with two input layers (one for the observation channel, as specified by obsInfo, and the other for the action channel, as specified by actInfo) and one output layer (which returns the scalar value).

Define each network path as an array of layer objects and assign names to the input and output layers of each path. These names allow you to connect the paths and then later explicitly associate the network input and output layers with the appropriate environment channel.

For more information on creating a deep neural network value function representation, see Create Policies and Value Functions.

% Define state path
statePath = [
    featureInputLayer( ...
        obsInfo.Dimension(1), ...
        Name="obsPathInputLayer")
    fullyConnectedLayer(400)
    reluLayer
    fullyConnectedLayer(300,Name="spOutLayer")
    ];

% Define action path
actionPath = [
    featureInputLayer( ...
        actInfo.Dimension(1), ...
        Name="actPathInputLayer")
    fullyConnectedLayer(300, ...
        Name="apOutLayer", ...
        BiasLearnRateFactor=0)
    ];

% Define common path
commonPath = [
    additionLayer(2,Name="add")
    reluLayer
    fullyConnectedLayer(1)
    ];

% Create layergraph, add layers and connect them
criticNetwork = layerGraph();
criticNetwork = addLayers(criticNetwork,statePath);
criticNetwork = addLayers(criticNetwork,actionPath);
criticNetwork = addLayers(criticNetwork,commonPath);
criticNetwork = connectLayers(criticNetwork,"spOutLayer","add/in1");
criticNetwork = connectLayers(criticNetwork,"apOutLayer","add/in2");

Convert to dlnetwork and display the number of weights.

criticNetwork = dlnetwork(criticNetwork);
summary(criticNetwork)
   Initialized: true

   Number of learnables: 122.8k

   Inputs:
      1   'obsPathInputLayer'   3 features
      2   'actPathInputLayer'   1 features

View the critic network configuration.

plot(criticNetwork)

Figure contains an axes object. The axes object contains an object of type graphplot.

Create the critic approximator object using criticNet, the environment observation and action specifications, and the names of the network input layers to be connected with the environment observation and action channels. For more information, see rlQValueFunction.

critic = rlQValueFunction(criticNetwork, ...
    obsInfo,actInfo, ...
    ObservationInputNames="obsPathInputLayer", ...
    ActionInputNames="actPathInputLayer");

DDPG agents use a parametrized deterministic policy over continuous action spaces, which is learned by a continuous deterministic actor.

A continuous deterministic actor implements a parametrized deterministic policy for a continuous action space. This actor takes the current observation as input and returns as output an action that is a deterministic function of the observation.

To model the parametrized policy within the actor, use a neural network with one input layer (which receives the content of the environment observation channel, as specified by obsInfo) and one output layer (which returns the action to the environment action channel, as specified by actInfo).

Define the network as an array of layer objects. Since the output of the hyperbolic tangent layer is always between -1 and 1, use a scaling layer to scale it to the actual range of the action, as specified by actInfo.UpperLimit.

actorNetwork = [
    featureInputLayer(obsInfo.Dimension(1))
    fullyConnectedLayer(400)
    reluLayer
    fullyConnectedLayer(300)
    reluLayer
    fullyConnectedLayer(1)
    tanhLayer
    scalingLayer(Scale=max(actInfo.UpperLimit))
    ];

Convert to dlnetwork and display the number of weights.

actorNetwork = dlnetwork(actorNetwork);
summary(actorNetwork)
   Initialized: true

   Number of learnables: 122.2k

   Inputs:
      1   'input'   3 features

Create the actor using actorNet and the observation and action specifications. For more information on continuous deterministic actors, see rlContinuousDeterministicActor.

actor = rlContinuousDeterministicActor(actorNetwork,obsInfo,actInfo);

Specify options for the critic and actor using rlOptimizerOptions.

criticOpts = rlOptimizerOptions(LearnRate=1e-03,GradientThreshold=1);
actorOpts = rlOptimizerOptions(LearnRate=1e-04,GradientThreshold=1);

Specify the DDPG agent options using rlDDPGAgentOptions, include the training options for the actor and critic.

agentOpts = rlDDPGAgentOptions(...
    SampleTime=Ts,...
    CriticOptimizerOptions=criticOpts,...
    ActorOptimizerOptions=actorOpts,...
    ExperienceBufferLength=1e6,...
    DiscountFactor=0.99,...
    MiniBatchSize=128);

You can also modify the agent options using dot notation.

agentOpts.NoiseOptions.Variance = 0.6;
agentOpts.NoiseOptions.VarianceDecayRate = 1e-5;

Alternatively, you can create the agent first, and then access its option object and modify the options using dot notation.

Create the DDPG agent using the specified actor, critic, and agent options objects. For more information, see rlDDPGAgent.

agent = rlDDPGAgent(actor,critic,agentOpts);

Train Agent

To train the agent, first specify the training options. For this example, use the following options.

  • Run training for at most 5000 episodes, with each episode lasting at most ceil(Tf/Ts) time steps.

  • Display the training progress in the Episode Manager dialog box (set the Plots option) and disable the command line display (set the Verbose option to false).

  • Stop training when the agent receives an average cumulative reward greater than –740 over five consecutive episodes. At this point, the agent can quickly balance the pendulum in the upright position using minimal control effort.

  • Save a copy of the agent for each episode where the cumulative reward is greater than –740.

For more information, see rlTrainingOptions.

maxepisodes = 5000;
maxsteps = ceil(Tf/Ts);
trainOpts = rlTrainingOptions(...
    MaxEpisodes=maxepisodes,...
    MaxStepsPerEpisode=maxsteps,...
    ScoreAveragingWindowLength=5,...
    Verbose=false,...
    Plots="training-progress",...
    StopTrainingCriteria="AverageReward",...
    StopTrainingValue=-740,...
    SaveAgentCriteria="EpisodeReward",...
    SaveAgentValue=-740);

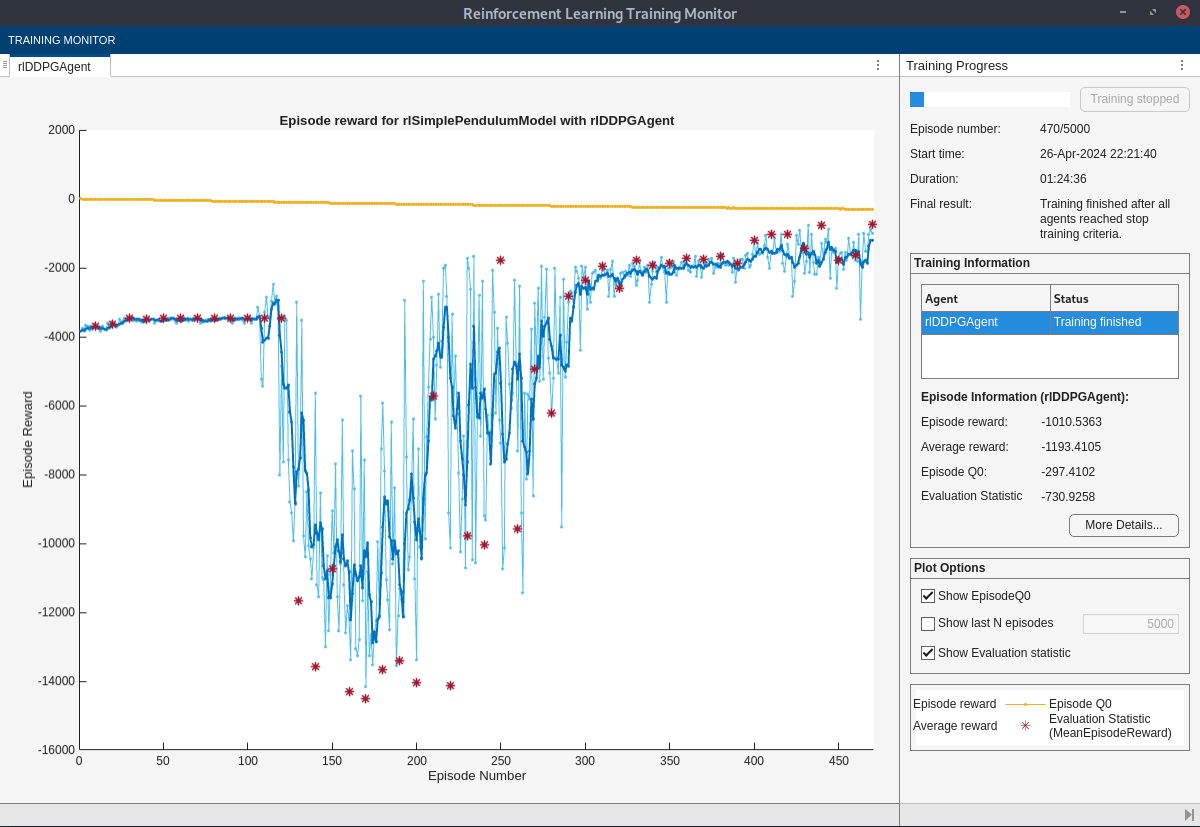

Train the agent using the train function. Training this agent is a computationally intensive process that takes several hours to complete. To save time while running this example, load a pretrained agent by setting doTraining to false. To train the agent yourself, set doTraining to true.

doTraining = false;
if doTraining
    % Train the agent.
    trainingStats = train(agent,env,trainOpts);
else
    % Load the pretrained agent for the example.
    load("SimulinkPendulumDDPG.mat","agent")
end

Simulate DDPG Agent

To validate the performance of the trained agent, simulate it within the pendulum environment. For more information on agent simulation, see rlSimulationOptions and sim.

simOptions = rlSimulationOptions(MaxSteps=500);
experience = sim(env,agent,simOptions);

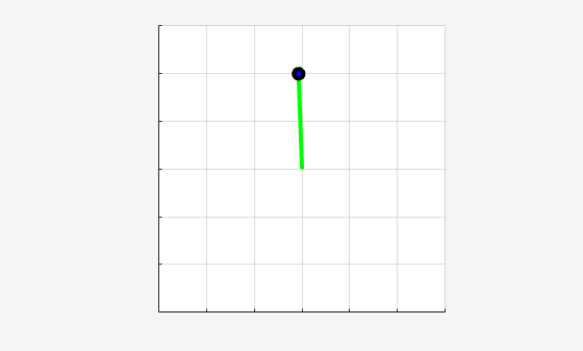

Figure Simple Pendulum Visualizer contains an axes object. The axes object contains 2 objects of type line, rectangle.
