current
Syntax
Description
current(
calculates and plots the absolute value of the current on the metal surface of a
PCB component at the specified frequency.rfpcbobject
,frequency
)
calculates the x, y, z
components of the current on the surface of a PCB component at a specified
frequencies.i
= current(rfpcbobject
,frequency
)
[
returns the current distribution and the points at which the current calculation
was performed.i
,p
] = current(rfpcbobject
,frequency
)
current(
calculates and plots the absolute value of the current at the specified
frequency on the dielectric surface of the PCB component.rfpcbobject
,frequency
,'dielectric')
calculates the x, y,
z components of the current on the dielectric surface of a PCB
component at the specified frequency.i
= current(rfpcbobject
,frequency
,'dielectric')
calculates the current on the surface of a PCB component using additional
name-value arguments.i
= current(___,Name=Value
)
Examples
Calculate Current Distribution on Rat-Race Coupler
Create a rat-race coupler with default properties.
coupler = couplerRatrace;
Set the excitation voltage and the phase angle at the ports of the coupler.
v = voltagePort(4)
v = voltagePort with properties: NumPorts: 4 FeedVoltage: [1 0 0 0] FeedPhase: [0 0 0 0] PortImpedance: 50
v.FeedVoltage = [1 0 1 0]
v = voltagePort with properties: NumPorts: 4 FeedVoltage: [1 0 1 0] FeedPhase: [0 0 0 0] PortImpedance: 50
v.FeedPhase = [90 0 270 0]
v = voltagePort with properties: NumPorts: 4 FeedVoltage: [1 0 1 0] FeedPhase: [90 0 270 0] PortImpedance: 50

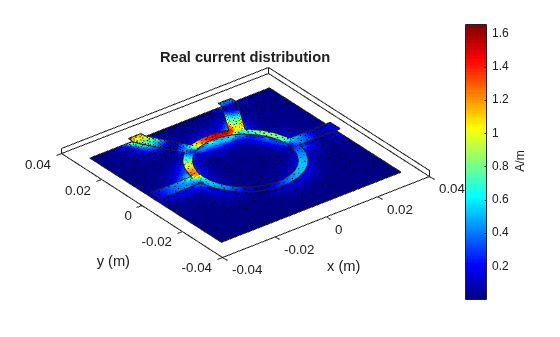

Calculate and plot the current on the coupler at 3 GHz.
figure current(coupler,3e9,Excitation=v,Type='real',Direction='on')
Calculate Current Distribution on Spiral Inductor
Create a default spiral inductor.
inductor = spiralInductor; show(inductor)
Calculate the current distribution on the inductor at 600 MHz.
[i,p] = current(inductor,600e6)
i = 3×242 complex
-1.5922 + 2.4296i -1.2993 + 2.0267i -0.7940 + 1.0474i -0.0003 + 0.0074i 0.0000 - 0.0067i -1.6421 + 2.5516i 1.3974 - 1.9829i 0.1289 - 1.2235i 1.9091 - 2.4443i 0.1875 - 0.2615i 0.0022 - 0.0279i -0.0005 + 0.0075i -0.2745 + 0.5834i 2.3139 - 3.6287i 0.8341 - 1.3729i -0.2731 + 0.5928i 2.3125 - 3.6056i 1.5493 - 2.2732i 2.8618 - 4.0426i 0.3477 - 0.6862i 11.3346 -14.1429i 1.3039 - 2.2525i 1.3067 - 2.3101i 2.6114 - 4.0805i 1.1166 - 1.5083i 0.1318 - 0.2257i 4.2366 - 8.0160i 3.2848 - 6.0731i 1.1301 - 1.9182i 0.8343 - 1.3677i 0.0171 - 0.2046i -1.7151 + 2.7047i -0.9376 + 1.4702i 0.0967 - 0.3237i -2.3156 + 3.3929i 2.5015 - 3.3752i -1.9228 + 3.0223i 0.2122 - 0.2979i 1.8457 - 3.0609i 0.7208 - 1.0432i 0.2664 - 0.3922i 0.2119 - 0.3029i 3.2053 - 5.9908i 2.5742 - 4.6861i 1.4204 - 2.4247i 1.0551 - 1.7422i 0.0632 - 0.2680i 0.0400 - 0.2262i -1.8682 + 3.0825i 0.2679 - 0.4113i
-0.0000 + 0.0054i 0.0351 - 0.0329i 0.2992 - 0.5272i 0.8438 - 1.2136i -1.1188 + 1.8326i 0.5235 - 0.7679i -1.5662 + 2.3464i 0.3373 - 0.3155i 0.8941 - 0.7089i -0.1817 + 0.6249i -0.5594 + 0.7645i 1.4625 - 2.3437i 0.8626 - 1.1220i -0.8538 + 1.3218i -0.2649 + 0.5924i 7.4823 -13.2073i -0.2647 + 0.6176i 0.4969 - 0.6898i 0.0006 - 0.0062i 0.4961 - 0.6819i 0.3370 - 0.3108i -0.5588 + 0.7562i 0.4627 - 0.7016i 0.4630 - 0.7074i 0.2141 - 0.2879i 2.9433 - 4.5851i 2.0563 - 3.1923i 3.0111 - 5.1251i 3.0144 - 5.1087i 1.5381 - 2.3267i 2.0508 - 3.2182i 0.0661 - 0.0482i 0.4555 - 0.6528i 1.4898 - 2.4223i 2.6556 - 3.5695i -2.1619 + 3.1902i 0.0484 - 0.0259i -1.5643 + 2.4677i 0.3030 - 0.4166i -0.8247 + 1.5661i -1.7360 + 2.8391i -2.3962 + 3.8572i 1.9295 - 3.1066i 2.5635 - 4.4059i 2.5679 - 4.3954i 1.4762 - 2.3250i 1.8014 - 2.9370i 1.9238 - 3.1211i 0.0994 - 0.0801i -2.2631 + 3.7958i
0.0000 + 0.0000i 0.0000 + 0.0000i 0.0000 + 0.0000i 0.0000 + 0.0000i 0.0000 + 0.0000i 0.0000 + 0.0000i 0.0000 + 0.0000i 0.0000 + 0.0000i 0.0000 + 0.0000i 0.0000 + 0.0000i 0.0000 + 0.0000i 0.0000 + 0.0000i 0.0000 + 0.0000i 0.0000 + 0.0000i 0.0000 + 0.0000i 0.0000 + 0.0000i 0.0000 + 0.0000i 0.0000 + 0.0000i 0.0000 + 0.0000i 0.0000 + 0.0000i 0.0000 + 0.0000i 0.0000 + 0.0000i 0.0000 + 0.0000i 0.0000 + 0.0000i 0.0000 + 0.0000i 0.0000 + 0.0000i 0.0000 + 0.0000i 0.0000 + 0.0000i 0.0000 + 0.0000i 0.0000 + 0.0000i 0.0000 + 0.0000i 0.0000 + 0.0000i 0.0000 + 0.0000i 0.0000 + 0.0000i 0.0000 + 0.0000i 0.0000 + 0.0000i 0.0000 + 0.0000i 0.0000 + 0.0000i 0.0000 + 0.0000i 0.0000 + 0.0000i 0.0000 + 0.0000i 0.0000 + 0.0000i 0.0000 + 0.0000i 0.0000 + 0.0000i 0.0000 + 0.0000i 0.0000 + 0.0000i 0.0000 + 0.0000i 0.0000 + 0.0000i 0.0000 + 0.0000i 0.0000 + 0.0000i
p = 3×242
-0.0006 0.0009 0.0022 0.0025 -0.0025 -0.0023 -0.0022 -0.0016 -0.0023 -0.0023 -0.0019 0.0025 0.0023 0.0023 0.0018 0.0019 0.0019 0.0012 0 0.0016 -0.0019 -0.0009 0.0006 0.0011 -0.0002 0.0016 0.0017 0.0016 0.0016 0.0017 0.0016 0.0006 0.0015 0.0017 -0.0016 -0.0015 -0.0004 -0.0018 -0.0007 -0.0016 -0.0016 -0.0017 0.0012 0.0011 0.0011 0.0012 0.0012 0.0011 0.0004 -0.0012
0.0026 0.0024 0.0024 0.0017 0.0009 0.0024 0.0024 -0.0019 -0.0017 -0.0005 -0.0024 -0.0017 -0.0008 -0.0024 -0.0014 -0.0008 -0.0021 -0.0022 -0.0026 -0.0024 -0.0021 -0.0022 -0.0021 -0.0019 -0.0018 -0.0018 -0.0001 -0.0002 -0.0007 -0.0012 0.0006 0.0018 0.0018 0.0012 0.0018 0.0018 0.0019 0.0008 -0.0014 -0.0012 -0.0003 0.0007 -0.0001 -0.0002 -0.0005 -0.0009 0.0009 0.0004 0.0013 0.0005
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

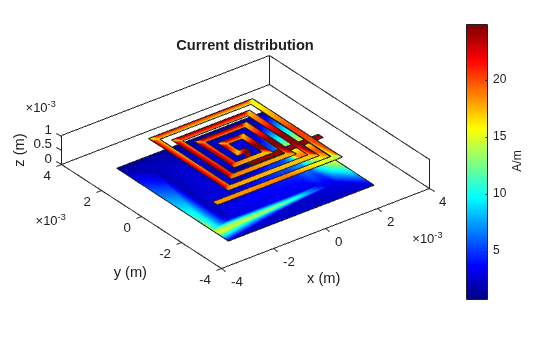

Plot the current distribution.
current(inductor,600e6)
Input Arguments
rfpcbobject
— PCB component object
RF PCB object
PCB component object, specified as an RF PCB object. For a complete list of the PCB components, microstrip bends, and traces, see PCB Components Catalog and Custom Geometry and PCB Fabrication.
frequency
— Frequency used to calculate current distribution
scalar
Frequency to calculate the current distribution, specified as a scalar in Hz.
Example: 70e6
Data Types: double
Name-Value Arguments
Specify optional pairs of arguments as
Name1=Value1,...,NameN=ValueN
, where Name
is
the argument name and Value
is the corresponding value.
Name-value arguments must appear after other arguments, but the order of the
pairs does not matter.
Example: scale=log10
Scale
— Scale to visualize current distribution
linear (default) | string scalar | character vector
Scale to visualize the current distribution on the surface of the PCB
component, specified as a string or a character vector. The string
values are either 'linear'
, 'log'
,
or 'log10'
or as a function. You can specify any
mathematical function such as log
,
log10
, cos
, or
sin
.
Data Types: char
| function_handle
Slicer
— Slicer to focus on desired portion of current plot
'on'
| 'off'
Slicer to slice the current plot and focus on the desired portion,
specified as 'on'
or 'off'
.
Choosing 'on'
adds the slicer panel to the current
plot and choosing 'off'
does not change the current
plot.
Data Types: logical
Excitation
— Excitation using voltage source
function handle
Excitation using as voltage source, specified function handle from the
voltagePort
function.
Data Types: char
| function_handle
Type
— Choose component of metal current
absolute
(default) | real
| imaginary
Choose the component to display of the metal current, specified
as.absolute
, real
, or
imaginary
.
Data Types: char
| function_handle
Direction
— Visualize direction of vector when plotting metal current
off
(default) | on
Visualize the direction of the vector when plotting metal current,
specified as off
or on
.
Data Types: logical
Output Arguments
i
— x, y, z components of current distribution
3-by-n complex matrix in A/m
x, y, z components of the current distribution, returned as a 3-by-n complex matrix in A/m. The value of the current is calculated on every triangle mesh on the surface of the PCB component.
p
— Cartesian coordinates representing center of each triangle in mesh
3-by-n real matrix
Cartesian coordinates representing the center of each triangle in the mesh, returned as a 3-by-n real matrix.
Version History
Introduced in R2021b
