EdgeFeed
Description
Use the EdgeFeed
object to create and specify the
FeedDefinitions
property in a parent pcbComponent
object.
Creation
Description
f1=EdgeFeed
creates a defaultEdgeFeed
object.
f1=EdgeFeed(
sets object
properties using one or more name value arguments.name=value
)
Properties
SignalLocations
— Specifies the location to be positively excited
[-0.01,0]
(default) | 1x2 matrix
Specifies the location to be positively excited as a 1x2 matrix in meters.
The first and the second columns correspond to the X and Y coordinates in meters, respectively. This location must lie on the edge of a metal layer. Locations of negative excitation are assumed to lie directly above (+z) and/or below (-z) the location of positive excitation.
Example:
f1=EdgeFeed;f1.SignalLocations=[-0.02,0]
Data Types: double
SignalLayers
— Board Layer for the positive excitation site
1
(default) | scalar
Example: f1=EdgeFeed;f1.SignalLayers=2
Data Types: double
GroundLayers
— Board layers for all negative excitation sites
3 (default) | Nx1 matrix.
Specifies the board layers for all negative excitation sites as a Nx1 matix in meters.
Example: f1=EdgeFeed;f1.GroundLayers=5
Data Types: double
SignalWidths
— Width of the positive excitation site
0.002
(default) | scalar
Specifies the width of the positive excitation site as a scalar, in meters.
Example: f1=EdgeFeed;f1.SignalWidths=0.003
Data Types: double
Examples
Edge Feed setup for a stripline-style pcbComponent
This example shows how to instantiate EdgeFeed objects to excite a pcbComponent in stripline configuration.
Convert the default pcbComponent from microstrip format to stripline format by copying its bottom two layers to the top of the layer stack.
p = pcbComponent; layersTemp = p.Layers; p.BoardThickness = p.BoardThickness * 2; p.Layers = [layersTemp(3), layersTemp(2), layersTemp];
The default FeedLocations property has the correct positions for the two feeds. Save this information to a temporary variable and switch the FeedFormat property to 'FeedDefinitions' to expose the pcbComponent's FeedDefinitions property.
feedsTemp = p.FeedLocations;
p.FeedFormat = 'FeedDefinitions';
Introduce two EdgeFeed objects to excite the strip against both ground planes simultaneously. The second is a copy of the first with an updated position.
f1 = EdgeFeed('SignalLocations', feedsTemp(1, 1:2), 'SignalLayers', 3, 'GroundLayers', [1; 5], 'SignalWidths', p.Layers{3}.Width); f2 = copy(f1); f2.SignalLocations = feedsTemp(2, 1:2);
Write the EdgeFeed objects to the pcbComponent's FeedDefinitions property, then show the pcbComponent and calculate its S-parameters.

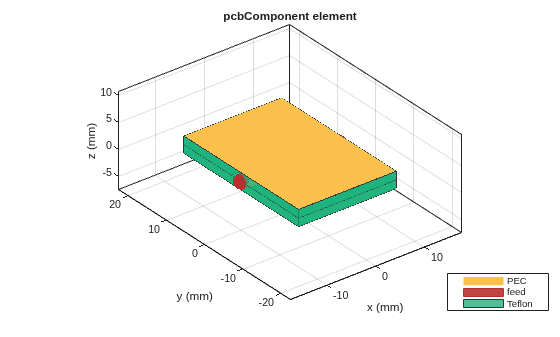

p.FeedDefinitions = [f1 f2]; figure; show(p);
s = sparameters(p, linspace(1e9, 5e9, 10)); figure; rfplot(s);
