sample

Sample end-effector poses in world frame

Since R2021a

Syntax

eePose = sample(goalRegion)

eePose = sample(goalRegion,numSamples)

Description

eePose = sample(goalRegion) samples an end-effector pose in the world frame as a homogeneous transformation matrix.

The function returns a pose uniformly sampled within the Bounds property relative to the reference frame and applies the following transformations based on the ReferencePose and EndEffectorOffsetPose properties:

tSample; % Pose sampled within Bounds
Tw0 = goalRegion.ReferencePose;
TeW = goalRegion.EndEffectorOffsetPose;
eePose = Tw0 * tSample * TeW; % tSample is a pose within the bounds.

eePose = sample(goalRegion,numSamples) samples multiple poses based on the input numSamples. The function returns the end-effector poses as a 3-D array of homogeneous transforms.

Examples

Sample Multiple Poses In A Workspace Goal Region

Sample various poses within the bounds of a workspace goal region for a manipulator arm. Some end-effector poses may not be desirable due to the positioning of the arm bodies and obstacles in the scene. The workspaceGoalRegion object defines the bounds on the xyz-position and zyx Euler orientation of the robot end effector. The sample object function uniformly samples random poses within the bounds. Find configurations that achieve these end-effector poses and determine the best by visualization.

Load an existing robot model as a rigidBodyTree object.

robot = loadrobot("kinovaGen3","DataFormat","row");
show(robot,"Collisions","on","Visuals","off");

Add a can as a collisionCylinder object to the robot arm.

can = collisionCylinder(0.05, 0.1);
can.Pose = trvec2tform([0.2, 0.3, 0.5]);

addCollision(robot.Bodies{end},"cylinder", [0.05, 0.1], trvec2tform([0, 0, 0.02]));

The goal of this example is to place this can on a table with other cans. Add the table and other cans to the environment by creating a cell array of collision objects. Show the entire env cell array.

table = collisionBox(0.7, 0.5, 0.04);
table.Pose = trvec2tform([0, 0.5, 0.43]);
env = {can, copy(can), copy(can), table};
env{2}.Pose = trvec2tform([-0.1, 0.3, 0.5]);
env{3}.Pose = trvec2tform([-0.1, 0.5, 0.5]);

hold on
for i = 1: length(env)
    show(env{i})
end
show(robot,homeConfiguration(robot),"Collisions","on","Visuals","off");

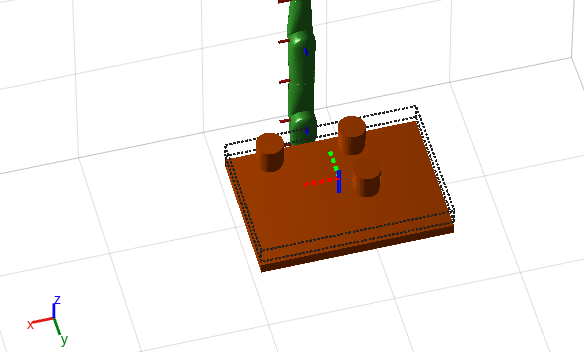

Define Goal Region

Create a workspace goal region using the end-effector body name of the robot.

Define the goal region parameters for your workspace. The goal region includes a reference pose, xyz-position bounds, and orientation limits on the zyx Euler angles. This example specifies xyz bounds within the table dimensions and fixes rotation to a small range in the y- and x-axis.

tableRegion = workspaceGoalRegion("EndEffector_Link",...
    "ReferencePose",table.Pose);
tableRegion.EndEffectorOffsetPose(1:3,1:3) = eul2rotm([0, 0, pi]);
tableRegion.EndEffectorOffsetPose(3, end) = 0.1;

tableRegion.Bounds = ...
    [-table.X/2, table.X/2; % X Bounds
    -table.Y/2, table.Y/2;  % Y Bounds
    0.04, 0.10;             % Z Bounds
    -pi, pi;                % Rotation about Z-axis
    -0.01, 0.01;            % Y-Axis
    -0.01, 0.01;];          % X-Axis

show(tableRegion);
view(165,50)
camzoom(3.5)

Sample Poses

Uniformly sample poses within the table region using the sample object function. In this example, set the rng seed to get repeatable results. Create vectors for storing valid and invalid poses.

rng(0)
poses = sample(tableRegion,10);
validPoses = [];
invalidPoses = [];

Check for Collisions

To find configurations for those poses, create an inverse kinematics (IK) solver.

ik = inverseKinematics('RigidBodyTree',robot);
config = cell(10);

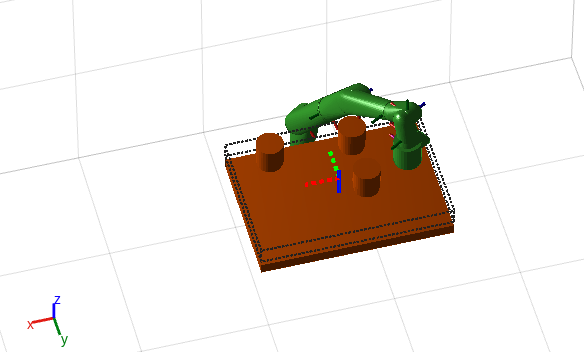

Test the sampled poses by iterating through the sampled poses, solving for configurations using IK, and checking for collisions. Show the valid configurations.

for i = 1:length(poses)
    % Solve for robot configuraiton using IK.
    config{i} = ik("EndEffector_Link",poses(:,:,i),ones(6,1),homeConfiguration(robot));
    % Check for collisions.
    isColliding = checkCollision(robot,config{i},env,SkippedSelfCollisions="parent");

    if ~isColliding % If not in collision, show robot configuration and save valid pose.
        show(robot,config{i},"PreservePlot",false,"Collisions","on","Visuals","off");
        drawnow
        validPoses = [validPoses; i];
    else
        invalidPoses = [invalidPoses; i];
    end

end

disp(string(validPoses'))

    "3"    "5"    "7"    "10"

Visualize A Singe Valid Pose

Plot all valid poses as transforms. The final valid configuration from checking collisions is still visible in the figure.

translations = tform2trvec(poses(:,:,validPoses));
rotations = tform2quat(poses(:,:,validPoses));

plotTransforms(translations,rotations,"FrameSize",0.1)

Show a valid configuration from the list. Change the index in validPoses to look at different poses. Call hold off to stop preserving figure elements. To manually inspect poses and configurations, comment out the final line when running.

poseIndex = validPoses(1);
show(robot,config{poseIndex},"PreservePlot",false,"Collisions","on","Visuals","off");
hold off

Input Arguments

goalRegion — Workspace goal region

workspaceGoalRegion object

Workspace goal region, specified as a workspaceGoalRegion object.

numSamples — Number of samples

positive integer

Number of samples, specified as a positive integer

Output Arguments

eePose — Poses sampled within workspace bounds

4-by-4 homogeneous transform matrix | four-by-four-by-n array

Poses sampled within the workspace bounds in the world frame, returned as a four-by-four homogeneous transformation matrix or 4-by-4-by-n array, where n is the number of samples numSamples.

The function returns a pose uniformly sampled within the Bounds property relative to the reference frame and applies the following transformations based on the ReferencePose and EndEffectorOffsetPose properties:

tSample = rand(6,2);
Tw0 = goalRegion.ReferencePose;
TeW = goalRegion.EndEffectorOffsetPose;
eePose = Tw0 * tSample * TeW;

Data Types: double

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.

Version History

Introduced in R2021a
