Generate Code for Inverse Kinematics Computation Using Robot from Robot Library

This example shows how to perform code generation to compute Inverse Kinematics (IK) using robots from the robot library. For this example, you can use an inverseKinematics object with an included rigidBodyTree robot model using loadrobot to solve for robot configurations that achieve a desired end-effector position.

A circular trajectory is created in a 2-D plane and given as points to the generated MEX inverse kinematics solver. The solver computes the required joint positions to achieve this trajectory. Finally, the robot is animated to show the robot configurations that achieve the circular trajectory.

Write Algorithm to Solve Inverse Kinematics

Create a function, ikCodegen, that runs the inverse kinematics algorithm for a KINOVA® Gen3 robot model created using loadrobot.

function qConfig = ikCodegen(endEffectorName,tform,weights,initialGuess)
    %#codegen
    robot = loadrobot("kinovaGen3","DataFormat","row");
    ik = inverseKinematics('RigidBodyTree',robot);
    [qConfig,~] = ik(endEffectorName,tform,weights,initialGuess);
end

The algorithm acts as a wrapper for a standard inverse kinematics call. It accepts standard inputs, and returns a robot configuration solution vector. Since you cannot use a handle object as the input or output to a function that is supported for code generation. Load the robot inside the function. Save the ikCodegen function in your current folder.

Verify Inverse Kinematics Algorithm in MATLAB

Verify the IK algorithm in MATLAB before generating code.

Load a predefined KINOVA® Gen3 robot model as rigidBodyTree object. Set the data format to "row".

robot = loadrobot("kinovaGen3","DataFormat","row");

Show details of the robot.

showdetails(robot)
--------------------
Robot: (8 bodies)

 Idx               Body Name         Joint Name         Joint Type               Parent Name(Idx)   Children Name(s)
 ---               ---------         ----------         ----------               ----------------   ----------------
   1           Shoulder_Link          Actuator1           revolute                   base_link(0)   HalfArm1_Link(2)
   2           HalfArm1_Link          Actuator2           revolute               Shoulder_Link(1)   HalfArm2_Link(3)
   3           HalfArm2_Link          Actuator3           revolute               HalfArm1_Link(2)   ForeArm_Link(4)
   4            ForeArm_Link          Actuator4           revolute               HalfArm2_Link(3)   Wrist1_Link(5)
   5             Wrist1_Link          Actuator5           revolute                ForeArm_Link(4)   Wrist2_Link(6)
   6             Wrist2_Link          Actuator6           revolute                 Wrist1_Link(5)   Bracelet_Link(7)
   7           Bracelet_Link          Actuator7           revolute                 Wrist2_Link(6)   EndEffector_Link(8)
   8        EndEffector_Link        Endeffector              fixed               Bracelet_Link(7)
--------------------

Specify the end-effector name, the weights for the end-effector transformation, and the initial joint positions.

endEffectorName = 'EndEffector_Link';
weights = [0.25 0.25 0.25 1 1 1];
initialGuess = [0 0 0 0 0 0 0];

Call the inverse kinematics solver function for the specified end-effector transformation.

targetPose = trvec2tform([0.35 -0.35 0]);
qConfig = ikCodegen(endEffectorName,targetPose,weights,initialGuess)
qConfig = 1×7

    1.3085    2.2000   -1.3011    1.0072   -1.1144    2.0500   -3.2313

Visualize the robot with the computed robot configuration solution.

figure;
show(robot,qConfig);
hold all
plotTransforms(tform2trvec(targetPose),tform2quat(targetPose),"FrameSize",0.5);

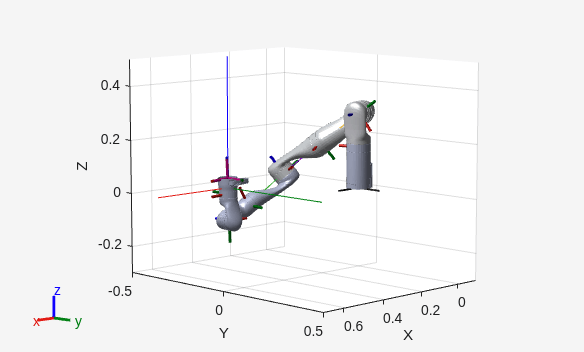

Figure contains an axes. The axes contains 29 objects of type patch, line. These objects represent base_link, Shoulder_Link, HalfArm1_Link, HalfArm2_Link, ForeArm_Link, Wrist1_Link, Wrist2_Link, Bracelet_Link, EndEffector_Link, Shoulder_Link_mesh, HalfArm1_Link_mesh, HalfArm2_Link_mesh, ForeArm_Link_mesh, Wrist1_Link_mesh, Wrist2_Link_mesh, Bracelet_Link_mesh, base_link_mesh.

Generate Code for Inverse Kinematics Algorithm

You can use either the codegen (MATLAB Coder) function or the MATLAB Coder (MATLAB Coder) app to generate code. For this example, generate a MEX file by calling codegen at the MATLAB command line. Specify sample input arguments for each input to the function using the -args input argument.

Call the codegen function and specify the input arguments in a cell array. This function creates a separate ikCodegen_mex function to use. You can also produce C code by using the options input argument. This step can take some time.

codegen ikCodegen -args {endEffectorName,targetPose,weights,initialGuess}
Code generation successful.

Verify Results Using Generated MEX Function

Call the MEX version of the IK solver for the specified transform.

targetPose = trvec2tform([0.35 -0.35 0]);
qConfig = ikCodegen_mex(endEffectorName,targetPose,weights,initialGuess)
qConfig = 1×7

    1.3085    2.2000   -1.3011    1.0072   -1.1144    2.0500   -3.2313

Visualize the robot with the robot configuration computed using the MEX version of the IK solver.

figure;
show(robot,qConfig);
hold all
plotTransforms(tform2trvec(targetPose),tform2quat(targetPose),"FrameSize",0.5);

Figure contains an axes. The axes contains 29 objects of type patch, line. These objects represent base_link, Shoulder_Link, HalfArm1_Link, HalfArm2_Link, ForeArm_Link, Wrist1_Link, Wrist2_Link, Bracelet_Link, EndEffector_Link, Shoulder_Link_mesh, HalfArm1_Link_mesh, HalfArm2_Link_mesh, ForeArm_Link_mesh, Wrist1_Link_mesh, Wrist2_Link_mesh, Bracelet_Link_mesh, base_link_mesh.

Compute Inverse Kinematics with MEX function

Use the generated MEX function to compute the Inverse Kinematics solution to achieve a trajectory.

Define Trajectory

Create a circular trajectory.

t = (0:0.2:10)'; % Time
count = length(t);
center = [0.3 0.1 0];
radius = 0.15;
theta = t*(2*pi/t(end));
points = center + radius*[cos(theta) sin(theta) zeros(size(theta))];

Inverse Kinematics Solution

Preallocate configuration solutions as a matrix qs. Specify the weights for the end-effector transformation and the end-effector name.

q0 = [0 0 0 0 0 0 0];
ndof = length(q0);
qs = zeros(count,ndof);
weights = [0 0 0 1 1 1];
endEffector = 'EndEffector_Link';

Loop through the trajectory of points to trace the circle. Use the ikCodegen_mex function to calculate the solution for each point to generate the joint configuration that achieves the end-effector position. Store the configurations for later use.

qInitial = q0; % Use home configuration as the initial guess
for i = 1:count
    % Solve for the configuration satisfying the desired end-effector
    % position
    point = points(i,:);
    qSol = ikCodegen_mex(endEffector,trvec2tform(point),weights,qInitial);
    % Store the configuration
    qs(i,:) = qSol;
    % Start from prior solution
    qInitial = qSol;
end

Animate Solution

Once you generate all the solutions, animate the results. You must recreate the robot because it was originally defined inside the function. Iterate through all the solutions. Set the "FastUpdate" option of the show method to true to get a smooth animation.

robot = loadrobot("kinovaGen3","DataFormat","row");
% Show first solution and set view.
figure
show(robot,qs(1,:));
view(3)
ax = gca;
ax.Projection = 'orthographic';
hold on
plot(points(:,1),points(:,2),'k')
axis([-0.1 0.7 -0.3 0.5])

% Iterate through the solutions
framesPerSecond = 15;
r = rateControl(framesPerSecond);
for i = 1:count
    show(robot,qs(i,:),'PreservePlot',false,"FastUpdate",true);
    drawnow
    waitfor(r);
end

Figure contains an axes. The axes contains 26 objects of type patch, line. This object represents base_link.
